| Place of Origin: | China |
|---|---|
| Brand Name: | DDW |
| Certification: | ROhS |
| Model Number: | DDW-ADOFPF-5501 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | wooden package |
| Panel Size: | 55", Can Also Be 18.5",22",32",43",49",55",65" | Brightness: | 1000/1500/2000nits |
|---|---|---|---|
| Light Sensor: | Auto Change Brightness According To Surrounding | Temperature Control System: | Industrial Fan Cooling Heat Exchange System |
| Enclosure Material: | 1.5mm SPCC | Surface Treatment: | Akesu Outdoor Powder |
| Appication: | Window Product Show Face The Street, Restaurant, Full Of Sunlight Area | Installation: | Floor Standing Or Wallmounted |
| Protection Grade: | IP55/IP65 | ||
| High Light: | outdoor digital display signs,digital display signs outdoor |
||

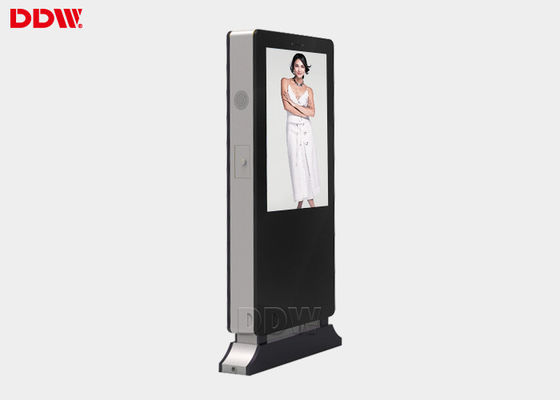

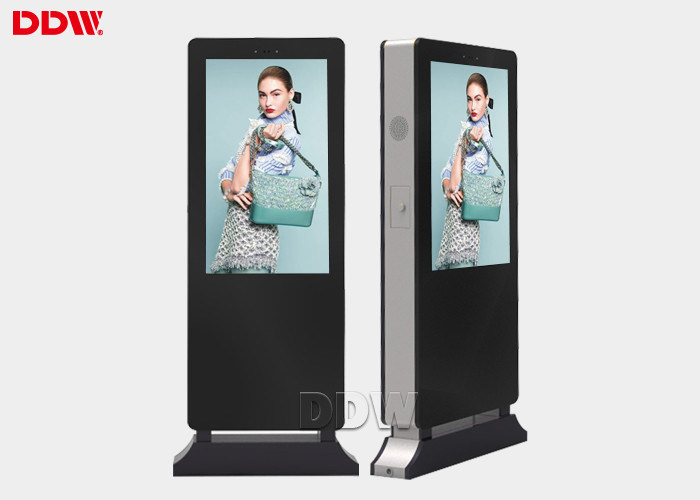

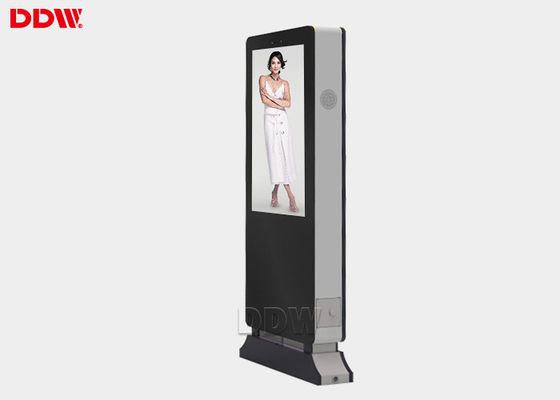

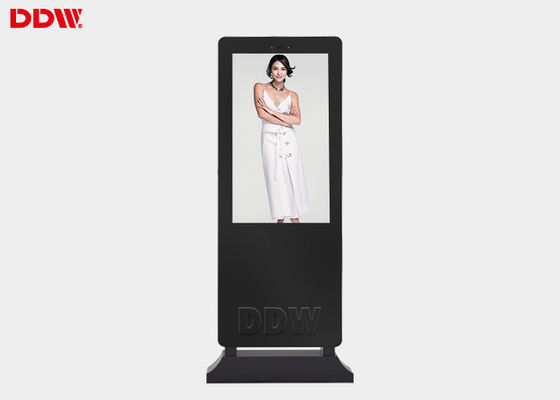

2000 nits 55" outdoor kiosk with fan cooling system
main specification:
1, high brightness LCD Module, standard 1500nits brightness,1920x1080 resolution,4000:1 contrast,LED backlight, Sunlight viewable, built in light sensor module, screen brightness can change according to the surrounding environment,
2, Special designed LED backlight modular + constant current source drive components
3, Special designed fan cooling system, automatically temperature control with temperature sensor built in, to make the display inner part work at a constant temperature
4, IP55 grade all weatherproof dustproof enclosure, +6mm vandal-proof protective glass, +1.5mm SPCC
5, Fan cooling, heat exchange system
6, Interfaces: Android : support ,VGA input, USB, WIFI, RJ45; Windows: , VGA output, USB,WIFI, RJ45
7,OS: Android OS 5.1+, Windows OS 7/8/10, RS232 board optional
8, Adapt Akesu paint powder from Germany, 5-7 years no fade, professional anti-corrosion more than 5 years
9, LCD protect function: Auto Shut off function upon internal temperature reaches 70℃
10, Integrated with Lightning protection, leakage protection switch,
11, Adapt Taiwan Meanwell power, A/C 100-240V, 50/60Hz
12, Different enclosures can be customized exactly according to client requirements
13, Screen surface 6mm AR glass, light transmittance can be highest 97%
14, Unique LCD screen substrate wide range temperature -30℃-60℃ processing
| LCD Parameter | |
| panel type | 100% orginal TFT LCD |
| size | 18.5"/21.5"/32"/43"/55"/65"/75" |
| brightness | 1500/2000/2500 nits |
| resolution | 1920*1080 |
| backlight | LED |
| screen surface | 6mm AR Glass |
| Enclosure | |
| Material | 1.9mm SPCC, surface treament Adapt Akesu paint powder from Germany, professional anti-corrosion more than 10 years |
| shape | can custom made |
| Temperature control | |
| Fan cooling | industrial fan, heat exchange, air circulation, automatically temperature control with temperature sensor system, when the inner temperature arise, the fan rotate acceleratatively and make the air circulation faster |
| Air conditioner | industrial grade air conditioner, built in temperature sensor module, air conditioner cooling, constant inner working temperature, smart control, when the inner temperature to 30°, stop cooling, when the working temperature -5°, start heating, when up to 0°, stop heating |
