Customized Ports Video Wall Processor Real Time Image Display, For Meeting / Security Room

China Customized Ports Video Wall Processor Real Time Image Display, For Meeting / Security Room supplier
Customized Ports Video Wall Processor Real Time Image Display, For Meeting / Security Room supplier Customized Ports Video Wall Processor Real Time Image Display, For Meeting / Security Room supplier

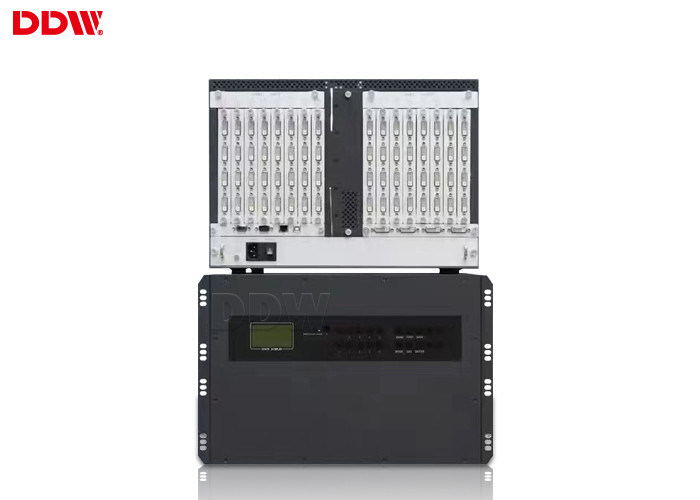

Large Image :  Customized Ports Video Wall Processor Real Time Image Display, For Meeting / Security Room

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 ,CE , RoHS , FCC , 3C
Model Number: DDW-VPH2424

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Double layer carton pack
Delivery Time: 3working days upon payment
Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Max Signal Output:: 144ch Or More IPad/iPhone Remote Control: Support Customized APP Remote Control
System Default:: EDID Control Method: RS232,IP
Rich Resolution: Support 1080P,1080I,720P,480P &multiple Resolution Inputs Frame Material: Aluminum Brushed
Standard Packing: Double Layer Carton Box Pack Weight: 5-100kg
Color: Black

Customized Ports Video Wall Processor Real Time Image Display, For Meeting / Security Room



Support HDMI,DVI,VGA,AV,YPBPR and IP,1080P higher resolution


 Key Features:
1. Full hardware configuration without operating system
2. High-speed bus parallel processing technology, high-bandwidth uncompressed processing
3. Real time image display, no dropped frames
4. Flexibility to increase the input/output board
5. Support partial input and output cards with mixed interpolation
6. Input/output card supports hot-swappable, plug-and-play functionality
7. Output resolution up to 1920 x 1200
8. Rich BNC, VGA, DVI, HDMI, SDI and RJ45 input interface, support for multiple resolutions up to 1920x1200,control via RS-232 or Ethernet
9. Support memory card or network transmission ultra-high-definition pictures, peer-to-peer ultra-high-definition mosaic wall background image
10. Redundant power supply design, thermostatically controlled fan
11. Chassis backplane + plug-in configuration, excellent performance for radiating, anti-dust chassis, equipped with replaceable air filter can be stable for a long time, even in harsh environments







Some of the Video Wall Controller Parameters:



Vertical/Horizontal Display Support
Combine Display Support combine any horizontal &vertical numbers of screens and show display
Support combine all screens together to show 1image
Solid Display Support each screen input with separate signal
PIP/Zoom/Roaming Support open one window for each screen, each window can be zoomed &roaming internal freely
iPad/iPhone remote control Support customized APP remote control
Signal preview function Support Audit/Preview signal before output to windows/video wall screens
Scene management Support Multiple scenes management/recall function
Support scenes cycle broadcast Support scenes cycle broadcast function
Multiple Interfaces Support multiple DVI,HDMI,VGA,AV inputss &multiple signal outputs
Rich Resolution Support 1080P,1080I,720P,480P &multiple resolution inputs
Standard Packing Double layer carton box pack
Weight 5-100kg
6kg-110kg



Detail Parameters:

Technical Specifications
Model series With CBD No CBD
Function description 4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
Input signal(optional) HDMI/DVI/VGA/AV/YPbPr
Input resolution 1024x768~1080p,commonly used resolutions
Output signal format DVI/VGA/AV/YPbPr/HDMI(DVI-HDMI converter)
Output resolution Up to 1920x1200/60HZ
System control software Special control software
Power Supply Redundant power supply 110-220VAC, 50/60Hz
Consumption 12W/channel
Working temperature -20°C——60°C
Working Humidity 5-95%
Case specification 4U/6U/10U/15U standard rackmount chassis
Serial Control Interface RS-232,9-pin female, Type-D
Baud Rate 115200
Pin configuration 2=TX,3=RX,5=GND
Ethernet control interface RJ-45 female, TCP/IP
Ethernet control speed Auto 10M or 100M,Full-duplex or half-duplex
Working time 365x7x24hrs
Technical specification of input/output connectors
VGA/RGB input Input: 15pin HD D-Sub, female
Sync mode: HV independent sync
Color Depth: 32bit/pixel
Resolution: 640*480/60HZ—1920*1200/60HZ
Input impedance :75Ω
Video input Input connector: BNC
Detecting: full-format auto detecting
Input impedance :75Ω
VGA or DVI output Resolution:1024x768/60HZ-1920x1200/60HZ
Color depth: 32bit/pixel
Output impedance:75Ω
Physical properties of input/output connectors
Signals Connectors Type
Composite VIDEO input BNC female
VGA input 15 pin HD D-Sub female
VGA output 15 pin HD D-Sub female
DVI output 24+5 or 24+1 standard female
AUX RS-232 9-pin D-Sub female
Main RS-232 9-pin D-Sub female

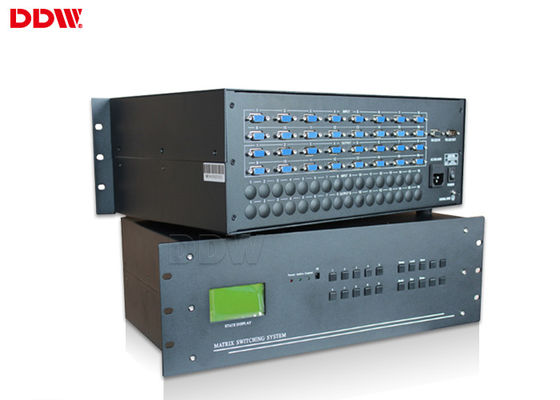

Customized Ports Video Wall Processor Real Time Image Display, For Meeting / Security RoomCustomized Ports Video Wall Processor Real Time Image Display, For Meeting / Security Room
