| Place of Origin: | China |
|---|---|
| Brand Name: | DDW |
| Certification: | CE/CCC/FCC/ROHS/ISO9001 |
| Model Number: | DDW-ADO4301S |
| Minimum Order Quantity: | 1set |
| Price: | USD 1000-2500 per set |
| Packaging Details: | full wood box/pallet,carton,flight case |
| Delivery Time: | 7days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets per month |
| Response Time: | 6ms | Type: | TFT |
|---|---|---|---|
| Brightness: | 2500 Cd/m2 | Input Voltage: | AC100~240V 50 /60 HZ |
| Application: | Outdoor | Color: | 16.7M |
| Max Resolution: | 1920*1080 | Viewing Angle: | 178 /178 |
| Warranty: | 1 Year | Product Name: | Outdoor Advertising Lcd Display |
| Network: | Support LAN/WLAN Network,Wifi/3G/LAN (Optional),can Be Added | Video Format: | MPG,PMP,VOB,3GP,M4v |
| High Light: | outdoor digital display signs,digital display signs outdoor |
||

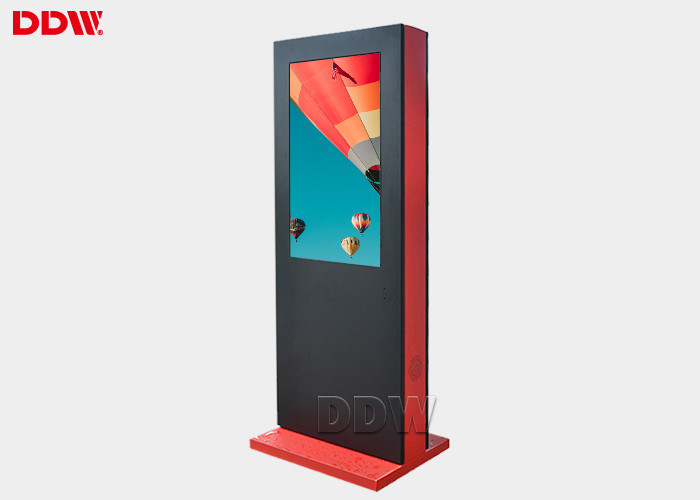

43 inch Outdoor LCD Display ip65 waterproof 2500nits 178°viewing angle
TFT panel 6ms response
Production specifications
| Panel | Panel type | Samsung / LG a-Si LCD |
| Physical Resolution | 1920*1080 / 3840x2160 | |
| Color depth | 10bit(D), 1.07Billon colors | |
| Viewing Angle | H178º/ V178º | |
| Luminance(nits) | 1500cd/m2 2000cd/m2 2500cd/m2 | |
| Contrast | 3000:1 – 4000:1 | |
| Backlit type | WLED | |
| Response time | 6ms | |
| Life(hrs) | more than 60000 | |
| Core Board | BOARD | Optional from above |
| Consumption | Power Supply | AC100~240V 50/60Hz |
| Standby/Max.Consumption | ≤3W/≤200W | |
| Working function &Environment | Control Method | Depends on above board selected |
| Color System Support | PAL/NTSC/SECAM | |
| OSD Language | English/Multiple Language | |
| Rich Resolution | Support 4K UHD 1080P,1080I,720P,480P &multiple resolutions | |
| Video forma tsupport | MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI | |
| Image format support | JPEG/BMP/TIFF/PNG/GIF | |
| Audio format support | Wave/MP3/WMA/AAC | |
| Splicing Display | Support | |
| Working Temperature | 0℃-50℃ | |
| Working Humidity | -0.95 | |
| Storage Temperature | 0℃-50℃ | |
| Storage Humidity | 5%-95% | |
| Cooling | Low noise fans | |
| Appearance &packing | Application Condition | Pure outdoor all weatherproof |
| Material | Cold-roll steel SPCC | |
| Frame Color | Black/White/Silver/Customization | |
| Mount/Installation type | Standing,iPhone seamless design | |
| Packing way | Safe packing with bubble foam, in wooden case | |
| Quality Standard | ISO9001,CE,RoHS,FCC,CCC |
Production description
