3x2 Video Wall Processor Security Cctv Windows System VGA DVI x2 1920X1080p

Basic Information
Place of Origin: China
Brand Name: DDW
Certification: CE/CCC/FCC/ROHS/ISO9001
Model Number: DDW-VPH0302
Minimum Order Quantity: 1
Price: USD 1000-1800 per set
Packaging Details: full wood box/pallet,carton,flight case
Delivery Time: 7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets per month
Detail Information
Viewing Angle: 178 /178 Type: TFT
Response Time: 6ms Brightness: 500cd/m2
Input Voltage: AC100~240V 50 /60 HZ Application: Indoor
Color: 16.7M Product Name: Video Wall Controller
Warranty: 1 Year Max Resolution: 1920*1080
After-sales Service Provided: Online Support,Video Technical Support,Field Installation,commissioning And Training,Field Maintenance And Repair Service Input: DVI,/DVI/VGA/USB
Keyword: 2x2 Video Wall Controller
High Light:

videowall processor

,

multi display processor


Product Description

3x2 video wall processor security cctv windows system

VGA DVI x2 1920X1080p


Production spercification

Professional video wall controller Technical Specifications
Model seriesWith CBDNo CBD
Function description4channel CBD,16channel AV,16channel AV,
12channel VGA/DVI input,16channel VGA/ DVI input,
6U case supports 12 screens arrays,6U case supports 16screens arrays
compatible with ultrahigh resolution
4000/(8000)x2000 Dynamic
background image
Input signal(optional)/DVI/VGA/AV/YPbPr
Input resolution1024x768~1080p,commonly used resolutions
Output signal formatDVI/VGA/AV/YPbPr/(DVI- converter)
Output resolutionUp to 1920*1200/60HZ
System control softwareSpecial control software
Power SupplyRedundant power supply 110-220VAC, 50/60Hz
Consumption12W/channel
Working temperature-20°C——60°C
Working Humidity5-95%
Case specification4U/6U/10U/15U standard rackmount chassis
Serial Control InterfaceRS-232,9-pin female, Type-D
Baud Rate115200
Pin configuration2=TX,3=RX,5=GND
Ethernet control interfaceRJ-45 female, TCP/IP
Ethernet control speedAuto 10M or 100M,Full-duplex or half-duplex
Working time365*7*24hrs
Technical specification of input/output connectors
VGA/RGB inputInput: 15pin HD D-Sub, female
Sync mode: HV independent sync
Color Depth: 32bit/pixel
Resolution: 640*480/60HZ—1920*1200/60HZ
Input impedance :75Ω
Video inputInput connector: BNC
Detecting: full-format auto detecting
Input impedance :75Ω
VGA or DVI outputResolution:1024*768/60HZ-1920*1200/60HZ
Color depth: 32bit/pixel
Output impedance:75Ω
Physical properties of input/output connectors
SignalsConnectorsType
Composite VIDEO inputBNCfemale
VGA input15 pin HD D-Subfemale
VGA output15 pin HD D-Subfemale
DVI output24+5 or 24+1 standardfemale
AUX RS-2329-pin D-Subfemale
Main RS-2329-pin D-Subfemale




Production description

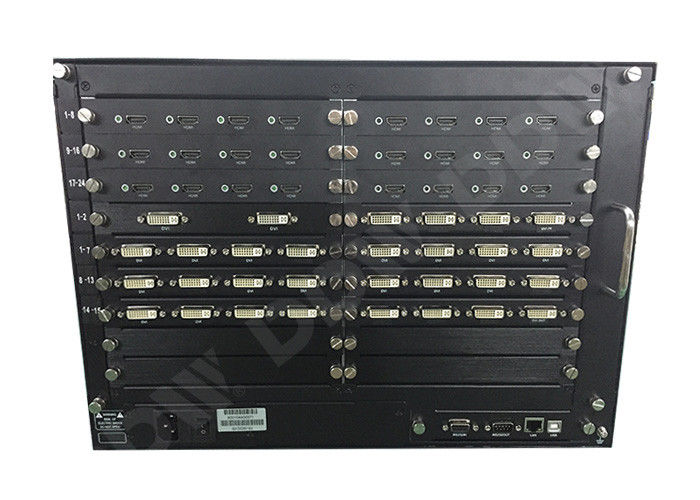

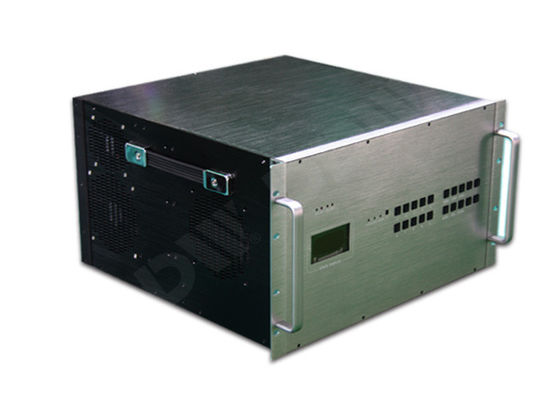

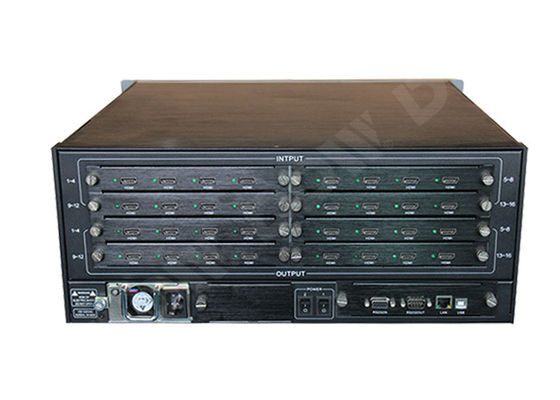

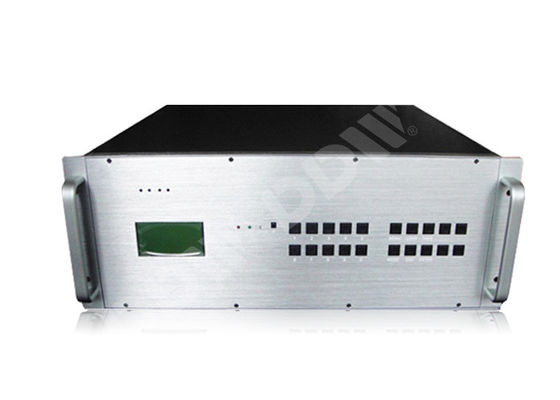

3x2 Video Wall Processor Security Cctv Windows System VGA DVI x2 1920X1080p 03x2 Video Wall Processor Security Cctv Windows System VGA DVI x2 1920X1080p 13x2 Video Wall Processor Security Cctv Windows System VGA DVI x2 1920X1080p 23x2 Video Wall Processor Security Cctv Windows System VGA DVI x2 1920X1080p 33x2 Video Wall Processor Security Cctv Windows System VGA DVI x2 1920X1080p 4
