LED Back Light Transparent Monitor Screen , 47'' See Through Lcd Display FHD 1920*1080

China LED Back Light Transparent Monitor Screen , 47'' See Through Lcd Display FHD 1920*1080 supplier
LED Back Light Transparent Monitor Screen , 47'' See Through Lcd Display FHD 1920*1080 supplier LED Back Light Transparent Monitor Screen , 47'' See Through Lcd Display FHD 1920*1080 supplier

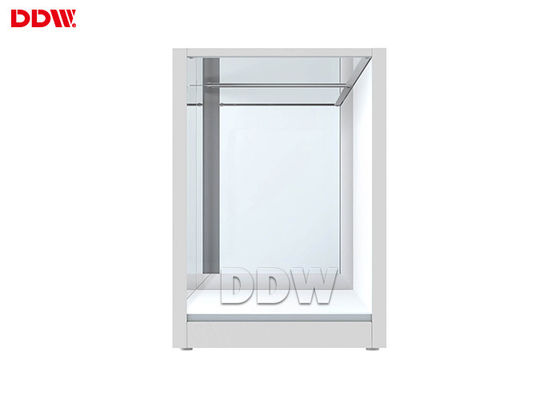

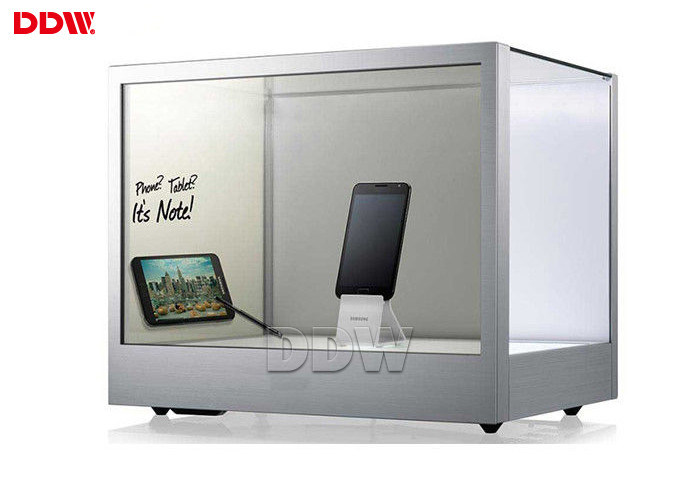

Large Image :  LED Back Light Transparent Monitor Screen , 47'' See Through Lcd Display FHD 1920*1080

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-ADTS4701

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: negotiable
Packaging Details: Carton and Full wood box packing
Delivery Time: 3-7working days upon payment
Payment Terms: T/T , Western Union , L/C , Alibaba Trade Assurance, D/P, D/A
Supply Ability: 1000 set per month
Contact Now
Detailed Product Description
Physical Resolution: 1920x1080 Display Colors: 16.7M
Backlit Type: WLED

WLED Backlit Transparent Display Screen , 47'' See Through Lcd Display DDW-ADTS4701



Key features

1 . LED Backlight , FHD 1920x1080 resolution;

2 . Seamless designed aluminum alloy frame;

3 . Android OS IP/WIFI remote networkcontrol;

4. brightness 300-400nits;





Display mode

Support video , flash animation,images and text mix broadcasting . Video truly seamless playback, Up to 14 kinds of picture transition mode .

Support rich display resolution 1366x768, 1440x900, 1600x900, 1680x1050, 1920x1080;





Specifications

Panel type TFT-LCD
Diagonal 47"
Aspect Ratio 16/9
Physical Resolution 1920x1080
Display Colors 16.7M
Viewing Angle H178º/ V178º
Luminance(nits) 300-400cd/m2
Contrast 1100/1
Backlit type WLED
Response time 6ms
Life(hrs) more than 60000
RJ45(network port) 1
USB 1(USB 2.0)
SD 1(Capatible MMC/MS)
CF 1
VGA Optional
DVI Optional
HDMI Optional
Power Supply AC100~250V 50/60 HZ
Max.Consumption ≤200W
Standby Consumption ≤3W
Control Method TCP/IP , WIFI , Software Control(Network version only) , IR
Color System Support PAL/NTSC/SECAM
OSD Language Multiple languages
Rich Resolution Support 1080P , 1080I , 720P , 480P &multiple resolutions
Video forma tsupport MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI
Image format support JPEG/BMP/TIFF/PNG/GIF
Audio format support Wave/MP3/WMA/AAC
Splicing Display Support
Working Temperature 0℃-50℃
Working Humidity 10%-85%
Storage Temperature 0℃-50℃
Storage Humidity 5%-95%
Cooling Low noise fans
Application Condition Indoor/Semi Outdoor
Material Cold-roll steel SPCC
Frame Color Black/White/Customization
Mount/Installation type Standby/Wall mount with wheel rack






Program encryption

Make encryption and authentication for playlists and program material , refuse illegal program broadcast . Pre-set independent password by grouping . Certificate U disk, only authenticated program can be imported. Multi-language menu: Support Chinese ,English and other languages(Multiple OSD languages can be added according to the sales area and needs )







Timing management

Support turn on , turn off , timer switch , manually 4 o perating mode Select the timer switch Support 2 independent timers everyday Support set up 7 days a week independent , also support set up according to the daily management File import Support CF card , SD card , U disk & other storing media store file , improt playlist and program material file into these storing media . Configuer terminal parameters and update the software by CF card , SD card and U disk



Log management

Terminal works log Switch time record Remont control record File import and software update record Terminal log Abnoemal record Broadcast record log Fully record program broadcast date , time and broadcast times Export log files by the terminal ID and date to the U disk Support retain logs up to 1 month , automatically delaeted the log files beyond this time .



Applications

Business Organizations supermarket , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , star-rated hotels , restaurants , travel agencies , pharmacy .
Financial Organizations

Banks , negotiable securities , funds , insurance companies , pawnshops

Non-profit Organizations Telecommunications , post offices , hospital , schools

Public Places subway , airports , stations , gas stations , toll stations , bookstores , parks , exhibition halls , stadiums , museums , convention centers , ticket agencies , HR market , lottery centers , Real Estate Property , Apartments , villas , offices , commercial buildings , model rooms , property brokers .
