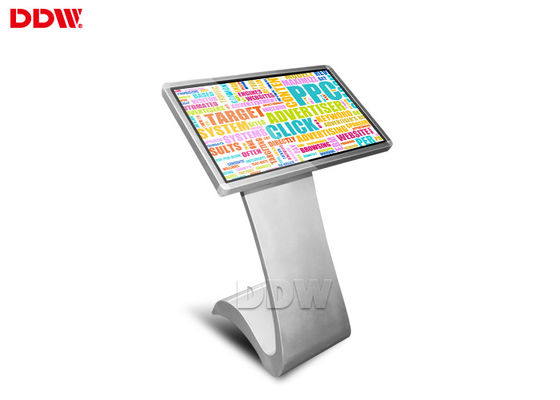

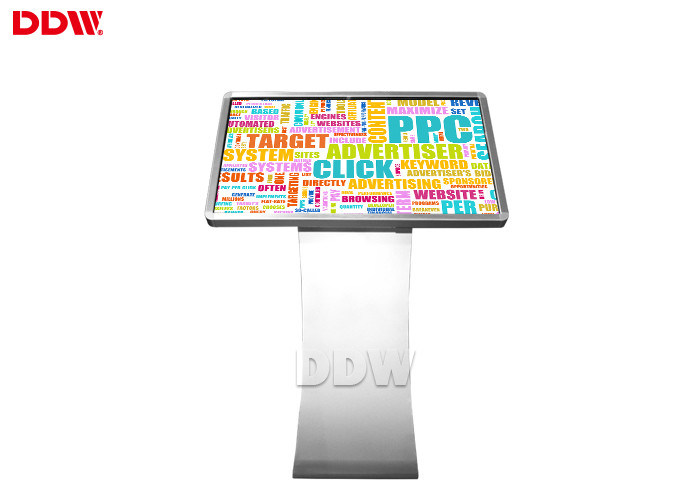

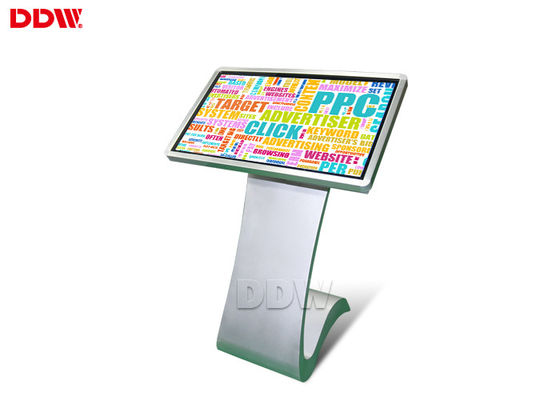

Lcd Tft Digital Display Signs 500 Nits Panel Samsung DID LG IP 82'' Real Color

Basic Information
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-AD8201TK
Minimum Order Quantity: 1Set
Price: negotiable
Packaging Details: Carton and Full wood box packing
Delivery Time: 3-7working days upon payment
Payment Terms: T/T , Western Union , L/C , Alibaba Trade Assurance, D/P, D/A
Supply Ability: 1000 set per month
Detail Information
Diagonal: 82 Inch Certificate: CE, Rohs, CCC , FCC , ISO9001
Display Colors: 16.7M Viewing Angle: H178º/ V178º
Luminance(nits): 500cd/m2 Panel Brand: Samsung DID LG IP
Backlit Type: WLED Control Method: TCP/IP , APP , WIFI , Software Control , IR
OSD Language: Multiple Languages Physical Resolution: 1920x1080
High Light:

freestanding digital signage

,

outdoor digital display signs


Product Description

Panel brand Samsung DID LG IP 82 inch Real Color Lcd Tft Touch Screen Informational Kiosk 500 nits DDW-AD8201TK



Features Highlights:

1 . Video formats MP4(AVI:DIVX/XVID) , MPG2(DVD:VOB/MPG2) , MPEG1 (VCD DAT/MPG1)

2 . Audio formats MP3

3 . Advanced IR touch technology , support single-touch technology

4 . interactive touch for widely using

5 . Adopt memory card to update ad files

6 . SD card or USB port at one player;

Lcd Tft Digital Display Signs 500 Nits Panel Samsung DID LG IP 82'' Real Color 0

Description:

1 . Outer shell is made by extra quality metal material, Color for Outer Shell Shinning Black.

2 . With 3mm thickness tempered glass as protection layer against the sureface of LCD screen.

3 . Full New LG or Samsung ( Made in Korea) A Grade Standard LCD Panel.

4 . Support SD card or USB port at one player; it is optional for VGA Port, S-video port and port.

5 . Safely locking system function to avoid flash memory card and advertising playing contents being taken away , also can be protected by password.

6 . With USB update feature; support functions between the card and card copying files (such as CF card to SD card , or SD to CF card etc.); support U-copy , conveniently and quickly updating target content , more details please visit user manual.

7 . Playing advertising program automatically and circular; support media format JPEG (JPG) , MP3 , AVI , MPEG1 , MPEG2 , MPEG4 , VOB and DIVX (5.0/6.0).

8 . Playlists support functions , can set different folders , copy all target files to those different folders , system would default to play your target file one by one.

9 . Capable of setting rolling caption on the screen, playing rolling caption in the advertisement program.

10 . Build-in clock and calendar function in the system of player.

11 . Support 5 groups of auto power-on/off timer, able to set those 5 groups of time one day and 7 days in one week.

12 . Support shockproof and dustproof function.





Specifications



Technical Parameter for LCD Panel Panel Size 82 inch real color LCD screen
Aspect Ratio 16:9
Max. Resolution 1920x 1080
Number of Color 16.7M
Brightness 500cd/m2
Contrast Ratio 1500:1
Responsive Time 8ms
Panel Life above 50000 hours
Storage Medium Flash memory card 2gb to 36gb for the capacity
Support Ad files Video formats MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1)
Audio formats MP3
Photo formats JPG
OSD Language English ,  Chinese ,  French ,  German ,  Italian ,  Spanish , Arabic
Audio output stereo L/R ,  5Wx2 ,  8Ω
Power supply AC 110V - 240V , 50/60HZ
Storage Temperature -7 to 65 Celsius degree
Normal Working Temperature -5 to 65 Celsius degree





Infrared touchscreen Panel Parameters:

Touch Max Resolution 4096×4096
Transparency > 90%, Up to 100%
Scanning Speed >50Scans/S
Response Speed <12ms
Touch Type Horizontal Multi Dot Touch Screen (Vertical way is optional)
Touch precision 0.625mm
Minimum Touch object ≥5mm
Touch Intensity Over 60,000,000 Single Point Touch
Operation System DOS, WINDOWS9X/ME/2000/XP/2003/VISTA, LINUX
perating Voltage DC 5V ±5%
Power Supply Keyboard Serial Interface
Power <1W (Current<200mA)
Communication RS-232 Interface Port, USB Port
Vandal-Proof Steel Ball (Diameter 63.5mm 1040g Weight) drop from 1040mm, No break
Temperature Operating -41°C ~70°C Temperature Storage: -50°C ~85°C
Altitude 3000m
Noise None
Life Time >10 Year



Applications:

Business Organizations Supermarket ,  large-scale shopping malls ,  exclusive agency ,  chain shops ,  large-scale sales ,  star-rated hotels ,  restaurants ,  travel agencies ,  pharmacy.
Financial Organizations

Banks ,  negotiable securities ,  funds ,  insurance companies , pawnshops;

Non-profit Organizations  Telecommunications ,  post offices , hospital ,  schools;

Public Places subway ,  airports ,  stations, gas stations ,  toll stations ,  bookstores , parks , exhibition halls ,  stadiums ,  museums ,  convention centers , ticket agencies ,  HR market ,  lottery centers; Real Estate Property  Apartments , villas ,  offices ,  commercial buildings ,  model rooms , property brokers;
Entertainments Movie theaters ,  fitness halls ,  country clubs ,  clubs ,  massage rooms ,  bars ,  cafes ,  Internet bars ,  beauty shops ,  golf course



Lcd Tft Digital Display Signs 500 Nits Panel Samsung DID LG IP 82'' Real Color 1Lcd Tft Digital Display Signs 500 Nits Panel Samsung DID LG IP 82'' Real Color 2Lcd Tft Digital Display Signs 500 Nits Panel Samsung DID LG IP 82'' Real Color 3
