High Definition Daisy Chain Gefen Multi Screen Controller Aluminum Brushed Frame DDW-VPH1010

China High Definition Daisy Chain Gefen Multi Screen Controller Aluminum Brushed Frame DDW-VPH1010 supplier
High Definition Daisy Chain Gefen Multi Screen Controller Aluminum Brushed Frame DDW-VPH1010 supplier High Definition Daisy Chain Gefen Multi Screen Controller Aluminum Brushed Frame DDW-VPH1010 supplier

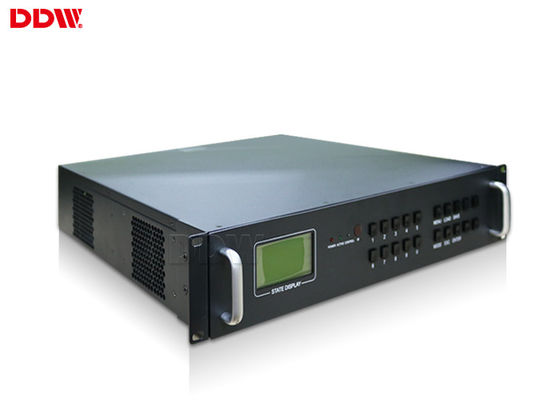

Large Image :  High Definition Daisy Chain Gefen Multi Screen Controller Aluminum Brushed Frame DDW-VPH1010

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 ,CE , RoHS , FCC
Model Number: DDW-VPH1010

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Double layer carton pack
Delivery Time: 3working days upon payment
Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
System Default:: EDID Video Wall Controller Color Quality: 32bit
Frame Material:: Aluminum Brushed Max. Data Rate:: 3.2Gbps
Control Method: RS232,IP Rich Resolution: Support 1080P,1080I,720P,480P &multiple Resolution Inputs
Standard Packing: Double Layer Carton Box Pack Weight: 5-100kg

10 input 10 output High Definition Daisy Chain Gefen Multi Screen Controller Aluminum Brushed Frame DDW-VPH1010




DDW Lcd video wall controller is one of professional modularized and hardware Lcd video wall processor which supports HDMI,DVI,VGA,AV,YPBPR, each channel support 1920x1200 resolution signal inputs and outputs,RS232 and IP control method.


It has following key features:



1 . Support partial input and output cards with mixed interpolation
2 . Redundant power supply design, thermostatically controlled fan
3 . Input/output card supports hot-swappable, plug-and-play functionality
4 . Support display at arbitrary position, at any size and any superimposed
5 . High-speed bus parallel processing technology, high-bandwidth uncompressed processing
6 . Support memory card or network transmission ultra-high-definition pictures, peer-to-peer ultra-high-definition mosaic wall background image
7 . Chassis backplane + plug-in configuration, excellent performance for radiating, anti-dust chassis, equipped with replaceable air filter can be stable for a long time, even in harsh environments
8 . Support large-screen image freeze

9 . Support open-window effects processing

10 . Flexibility to increase the input/output board
11 . Real time image display, no dropped frames

12 . Full hardware configuration without operating system





Parameters:

Technical Specifications
Model series With CBD No CBD
Function description 4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
Input signal(optional) HDMI/DVI/VGA/AV/YPbPr
Input resolution 1024x768~1080p,commonly used resolutions
Output signal format DVI/VGA/AV/YPbPr/HDMI(DVI-HDMI converter)
Output resolution Up to 1920x1200/60HZ
System control software Special control software
Power Supply Redundant power supply 110-220VAC, 50/60Hz
Consumption 12W/channel
Working temperature -20°C——60°C
Working Humidity 5-95%
Case specification 4U/6U/10U/15U standard rackmount chassis
Serial Control Interface RS-232,9-pin female, Type-D
Baud Rate 115200
Pin configuration 2=TX,3=RX,5=GND
Ethernet control interface RJ-45 female, TCP/IP
Ethernet control speed Auto 10M or 100M,Full-duplex or half-duplex
Working time 365 24hrs
Technical specification of input/output connectors
VGA/RGB input Input: 15pin HD D-Sub, female
Sync mode: HV independent sync
Color Depth: 32bit/pixel
Resolution: 640 480/60HZ—1920 x1200/60HZ
Input impedance :75Ω
Video input Input connector: BNC
Detecting: full-format auto detecting
Input impedance :75Ω
VGA or DVI output Resolution:1024 768/60HZ-1920 1200/60HZ
Color depth: 32bit/pixel
Output impedance:75Ω

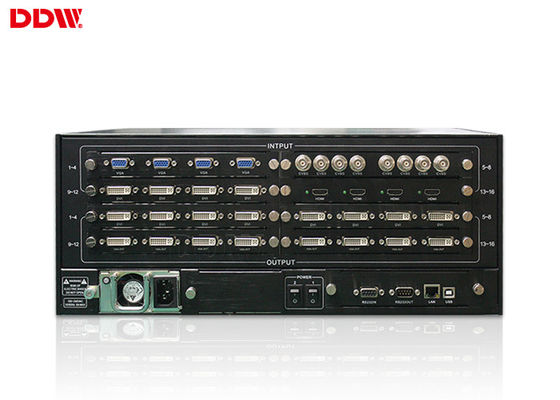

Physical properties of input/output connectors
Signals Connectors Type
Composite VIDEO input BNC female
VGA input 15 pin HD D-Sub female
VGA output 15 pin HD D-Sub female
DVI output 24+5 or 24+1 standard female
AUX RS-232 9-pin D-Sub female
Main RS-232 9-pin D-Sub female



High Definition Daisy Chain Gefen Multi Screen Controller Aluminum Brushed Frame DDW-VPH1010High Definition Daisy Chain Gefen Multi Screen Controller Aluminum Brushed Frame DDW-VPH1010High Definition Daisy Chain Gefen Multi Screen Controller Aluminum Brushed Frame DDW-VPH1010
