65" Curved Video Wall 500 Nits 1080p High Resolution 3.5mm Snarrow Bezel DDW-LW650HN11

Basic Information
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW650HN11
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Detail Information
Panel Size: 65inch Resolution: 1920x1080
Bezel Width: 22mm Viewing Angle: 178x178
Brightness: 500nits Brand: LG IPS
Backlight: LED Application Condition: Indoor And Semi-outdoor
High Light:

curved display monitor

,

flexible video wall


Product Description

ISO9001 65" curved video wall 500nits brightness 1080p high resolution 22mm snarrow bezel curved tv DDW-LW650HN11





Key Features

  • Support a variety of signal ports;
  • Built-in splicing module, support splice function;
  • Support Creating one window PIP across the screen, roaming service, scaling, PIP;
  • Support matrix joint control;
  • Unique DNX motion supplement image processing technology;
  • Dynamic image without motion trail;
  • Splicing image processing RS-232 RJ45 loop-circuit input/output;
  • Input by remote control with wire , mobile receiver head;



Descriptions

1, Original SHARP commercial grade lcd video wall, 16:9 SHARP a-Si TFT-LCD;

2, 500nits brightness, MEGA DCR contrast;

3, FHD physical resolution 1920x1080;

4, Only 3.5mm ultra narrow bezel , high quality , practical , good vision effect;

5, Signal interface rich , RS232 , , DVI , VGA , YPbPr , AV;

6, HD video wall unit , high brightness , high contrast , high gamut;

7, Flexible structure design, easy installation, extensible, arbitrary combination;

8, Stable performance, suitable working for a long time



Specifications

Panel Specifications
LCD Technology LG a-Si TFT-LCD
Active Screen Diagonal 65"
Bezel Width Total: 22mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System WLED
Luminance(nits) 500cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Pixel Pitch(WxH) 0.63x0.63 mm
Active Display Area(WxH) 1209.6 × 680.4 mm
Panel Dimension(WxHxD) 1213.5x684.3x67.7mm
White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing
1
VGA 1
CVBS IN 1
CVBS OUT 1
RS232 IN 1
RS232 OUT 1
ISP IN 1
IR IN 1
CODING BUTTON 1
AC IN AC100-240V
Color System Support PAL/NTSC/SECAM
Control Type IR Remote &Software Control
Menu Language English/Chinese(Multiple Language can be customized)
Vertical/Horizontal Display Support
Combine Display Support combine any horizontal &vertical numbers of screens and show display
Support combine all screens together to show 1image
Solid Display Support each screen input with separate signal
PIP/Zoom/Roaming Support open one window for each screen, each window can be zoomed &roaming internal freely
Multiple Interfaces Support DVI,,VGA,AV &multiple signal inputs
Rich Resolution Support 1080P,1080I,720P,480P &multiple resolution inputs

65" Curved Video Wall 500 Nits 1080p High Resolution 3.5mm Snarrow Bezel DDW-LW650HN11 065" Curved Video Wall 500 Nits 1080p High Resolution 3.5mm Snarrow Bezel DDW-LW650HN11 1

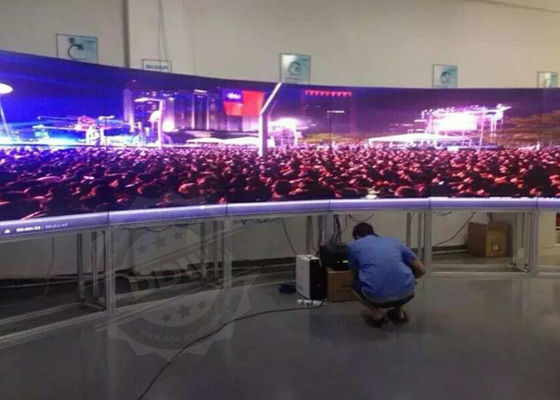

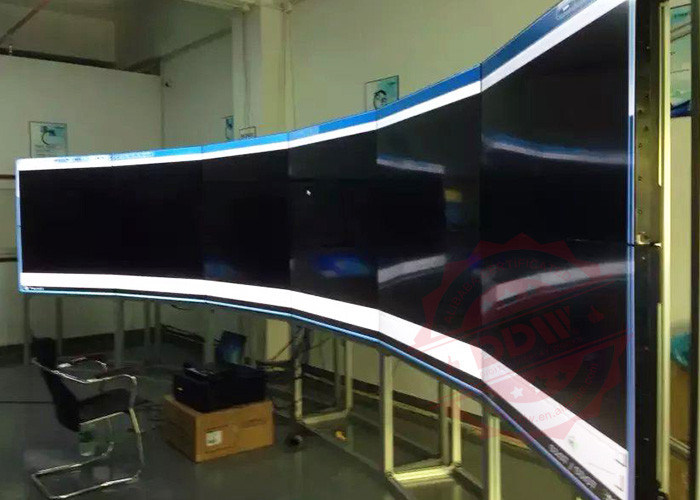

Generally for some group company which has large number of viewer and has high requirement for view , if the display area is allowed and enough , we can use curved LCD video wall display.
