Curved Multi 4k Video Wall Processor Large Screen Image Freeze RS232 / IP Control

China Curved Multi 4k Video Wall Processor Large Screen Image Freeze RS232 / IP Control supplier
Curved Multi 4k Video Wall Processor Large Screen Image Freeze RS232 / IP Control supplier Curved Multi 4k Video Wall Processor Large Screen Image Freeze RS232 / IP Control supplier Curved Multi 4k Video Wall Processor Large Screen Image Freeze RS232 / IP Control supplier Curved Multi 4k Video Wall Processor Large Screen Image Freeze RS232 / IP Control supplier

Large Image :  Curved Multi 4k Video Wall Processor Large Screen Image Freeze RS232 / IP Control

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 ,CE , RoHS , FCC
Model Number: DDW-VPH1515

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Double layer carton pack
Delivery Time: 3working days upon payment
Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Max PIP Per Screen:: 1,4,16,customization IPad/iPhone Remote Control: Support Customized APP Remote Control
Maximum Input Numbers:: 128 Maximum Output Numbers:: 128
Control Method: RS232,IP Input Output Signal Sources:: HDMI,DVI,VGA,AV,YPBPR,IP
Standard Packing: Double Layer Carton Box Pack Weight: 5-100kg

15 Input 15 Output Curved Multi 4k Video Wall Processor Large Screen Image Freeze

key features:

1, Compact and expandable inputs and outputs

40 input channels , can be extended up to 18 or 36 output channels , you can realize a large-scale multi-display system in a compact one-unit housing.

2, Power-saving design

Build-in power-saving graphics board and parts reduction effect by one unit structure design.

3, Easy Replacement

Rear detachable input-output board introduction and expansion can be easily.

User can replace the input and output board with a single unit without removing the entire chassis from the rack.

4, 2 split ~ 4 split display function (one single screen)

One single screen up to 4 signal source simultaneously input , it can be layout in any pattern and superimposed images.

5, Video Wall configuration support

iMAX-5000 series , which has built-in the high resolution of digital image processor , supports both of the matrix and mosaic video wall configuration.

6, Seamless Switching Processor Inside

No joints , no black screen , smooth video switching processor inside.

7, PIP/POP Function

Support picture in picture (PIP) picture outside picture (POP) functions .

Single screen can be superimposed 4 contents on the screen. You can also size and position or cross the border at any other screen.

8, Partial Zooming Function

Support in a single screen zoom function. You can zoom view an image from any of the signal source in a particular area.

9, User friendly graphical user interface

Just use the mouse device , click on the video content which you want to play , then drag and drop the displayed size and position.

10, Multi-Input format switching support

VGA,DVI,CVBS,HDMI and SDI such as multi-input format support.

11, Looping Playback

It can be stored more than 100 sets of display mode.

Support looping playback and control switching via RS232 network or TCP/IP mode.

12, Operation System

Support Microsoft Windows , Linux , Sun , and Mac operation systems.

13, Power off memory function

When the system power outage then restoration again , it will return to the state before the power failure.

14, Plug & Play function

Pure external hardware design , free to install any software or drivers.

15, Input status identified

Operation software can be identified for each input and output interfaces , and can identify the input ports there a signal input.



Products application:

1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.

2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.

3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.

4. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.

5. Public Service: Hospital, School, Telecom, Post office, etc.

6. Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model houses, Sales offices, the entrance of elevator, etc.





Technical Specifications
Model series With CBD No CBD
Function description 4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
Input signal(optional) HDMI/DVI/VGA/AV/YPbPr
Input resolution 1024x768~1080p,commonly used resolutions
Output signal format DVI/VGA/AV/YPbPr/HDMI(DVI-HDMI converter)
Output resolution Up to 1920x1200/60HZ
System control software Special control software
Power Supply Redundant power supply 110-220VAC, 50/60Hz
Consumption 12W/channel
Working temperature -20°C——60°C
Working Humidity 5-95%
Case specification 4U/6U/10U/15U standard rackmount chassis
Serial Control Interface RS-232,9-pin female, Type-D
Baud Rate 115200
Pin configuration 2=TX,3=RX,5=GND
Ethernet control interface RJ-45 female, TCP/IP
Ethernet control speed Auto 10M or 100M,Full-duplex or half-duplex
Working time 365 x 7 x 24hrs
Technical specification of input/output connectors
VGA/RGB input Input: 15pin HD D-Sub, female
Sync mode: HV independent sync
Color Depth: 32bit/pixel
Resolution: 640 x 480/60HZ—1920 x1200/60HZ
Input impedance :75Ω
Video input Input connector: BNC
Detecting: full-format auto detecting
Input impedance :75Ω
VGA or DVI output Resolution:1024 x 768/60HZ-1920 x 1200/60HZ
Color depth: 32bit/pixel
Output impedance:75Ω
Physical properties of input/output connectors
Signals Connectors Type
Composite VIDEO input BNC female
VGA input 15 pin HD D-Sub female
VGA output 15 pin HD D-Sub female
DVI output 24+5 or 24+1 standard female
AUX RS-232 9-pin D-Sub female
Main RS-232 9-pin D-Sub female

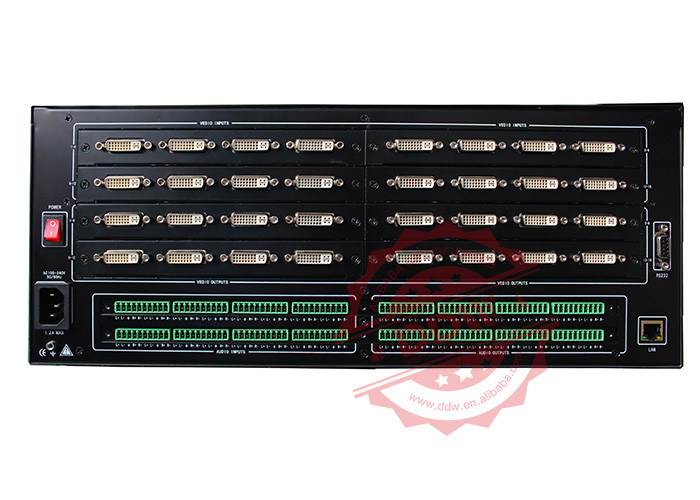

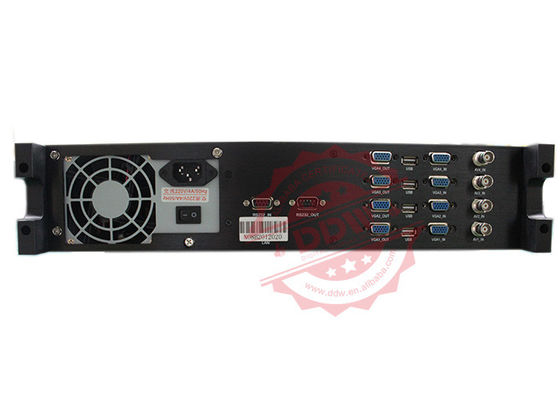

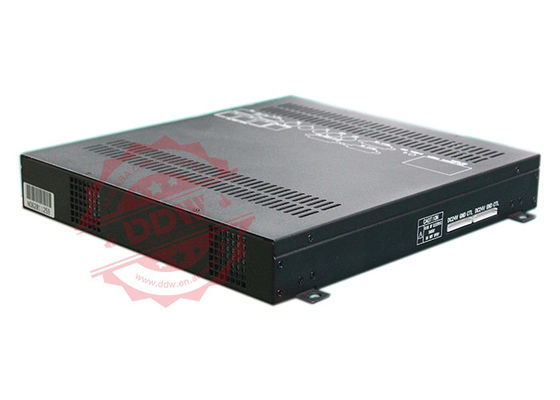

Curved Multi 4k Video Wall Processor Large Screen Image Freeze RS232 / IP ControlCurved Multi 4k Video Wall Processor Large Screen Image Freeze RS232 / IP Control
