| Place of Origin: | China |
|---|---|
| Brand Name: | DDW |
| Certification: | CE/CCC/FCC/ROHS/ISO9001 |
| Model Number: | DDW-LW550HN11 |
| Minimum Order Quantity: | >=1 |
| Price: | USD$450-USD$650 |
| Packaging Details: | carton box and wooden box |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000PCS/Month |
| Installation: | Wall Mountable/floor Standing | OS: | Androrid/Windows7/8/10(optional) |
|---|---|---|---|
| Total Bezel Gap: | 3.5mm Bezel | Panel Brand: | DID LG |
| Network: | WIFI/LAN/3G/4G Optional | Lcd Video Wall Panel Brightness: | 500nits Support |
| Lcd Video Wall Contrast: | 4000:1 | Keyword: | Narrow Bezel Lcd Video Wall |
| 47 Lcd Video Wall Surface: | Anti-glare | Splicing Lcd Video Wall Application: | Indoor And Semi-outdoor |
| Video Wall Display Power Consummtion: | 230W | Lcd Video Wall Signal Support: | DVI//VGA/AV/YPBPR |
| High Light: | 230W Lcd Wall Panel,Narrow Bezel Lcd Wall Panel,500cd/m2 Lcd Video Display |
||

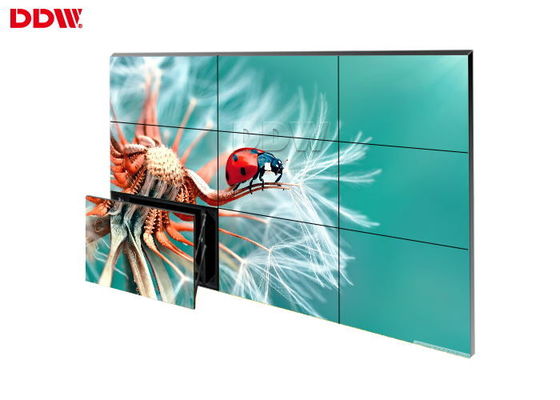

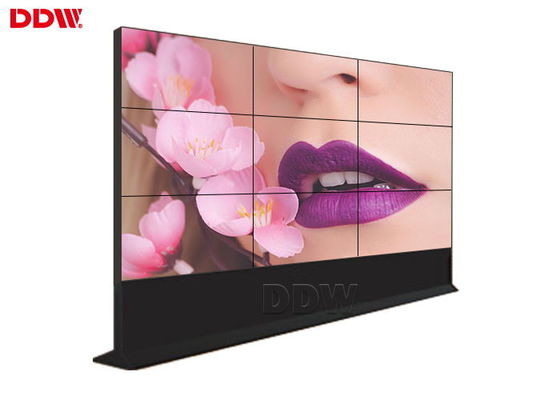

Customized best-selling 55 inch led/oled/lcd samsung video wall advertising display 55" lcd video wall stand system
| LCD Video Wall Screen (SAMSUNG DID panel) | ||||||||
| Specifications | ||||||||
| Model No. | DDW-LW550HN11 | |||||||
| Panel Size | 55'' SAMSUNG DID LCD Screen(super narrow bezel 1.7 mm) | |||||||
| Aspect Ratio | 16:9 | |||||||
| Max Resolution Support | 1920x1080 | |||||||
| Color | 8Bit,16.7M | |||||||
| Brightness (nits) | 500cd/m2 | |||||||
| Contrast | 4000:1 | |||||||
| Visual Angle (H/V) | 178° | |||||||
| Response Time | <=6ms | |||||||
| Life(hrs) | >60,000(hrs) | |||||||
| Input and output | ||||||||
| DVI | 1 | |||||||
| 1 | ||||||||
| D-15 RGB Input(VGA) | 1 | |||||||
| YUV/YPbPR | 1(3xBNC) | |||||||
| S-(YC) | 1(2xBNC) | |||||||
| Composite Video Input/(AV) | 3(3xBNC) | |||||||
| Composite Video Output | 2(2xBNC) | |||||||
| AUDIO INPUT | 1 | |||||||
| Split Screen | Support Picture in Picture(PIP/POP/PAP) | |||||||
| Power | ||||||||
| Power Supply | AC100V~240V | |||||||
| Maximum Power Consumption | 250W | |||||||
| Standby Power Consumption | <=3W | |||||||
| Temperature | ||||||||
| Working Temperature | 0°C~50°C | |||||||
| Working Humidity | 20%-80% | |||||||
| Dimension | 1213.5x684.3x127.0mm | |||||||
| Video Wall Controller(Built-in each Screen) | ||||||||
| Input | CVBS | 1*BNC port, support PAL/NTSC all formats | ||||||
| DVI | 1*DVI-I port, support SVGA/XGA/WUXGA | |||||||
| VGA | 1*D15 port, support SVGA/XGA/WXGA | |||||||
| 5*BNC ports, support SVGA/XGA/WUXGA | ||||||||
| Output | LVDS | Support signal or double LVDS output, and WUXGA (1920*1080) display | ||||||
| CVBS | support PAL/NTSC all formats | |||||||
| DVI | 1*DVI-I port, support SVGA/XGA/WUXGA | |||||||
| Operate mode | Panel key operation(needs customization) | |||||||
| Standard RS232 port( provide free control software) | ||||||||
| ADD Code | ||||||||
| Engineering software | XK_LCD_CONTROL_Manager,RS232 interface control(1 input,2 looping out) | |||||||
| Working temperature | 0~70 ℃ | |||||||
| working humidity | 5~95 %RH | |||||||
| AC voltage power supply | 100-240V/50, 60Hz | |||||||
| power consumption | Max 300W,according to different Screen models | |||||||
| Dimension | 307×283×55(mm) | |||||||
| Weight | About 3.5KG | |||||||
1. Q: Are you a manufacturer or trading company?
A:We are a manufacturer who has been specializing in producing LCD display for years.
2. Q: How does your factory do regarding quality control?
A:Quality is priority.DDW people always attach great importance to quality controlling from the
very beginning to the very end. We focus on every detail ,Our factory has gained ISO9001, ISO14001, CE, RoHS authentication.
3. Q: What is your after-sale service?
A: We offer 100% guarantee on our product .
4. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
5. Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days according to the size and quantities
of your order.
6.Q:what brand of screen are you using?
A:we are using Samsung,LG,AUO and CHIMEI screen.
7.Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
8.Q:if you are not online,how can i get contact with you?
A:if i am not online,please kindly check the following contact information,you can send me email,you can call me or skype me,i will reply you ASAP
