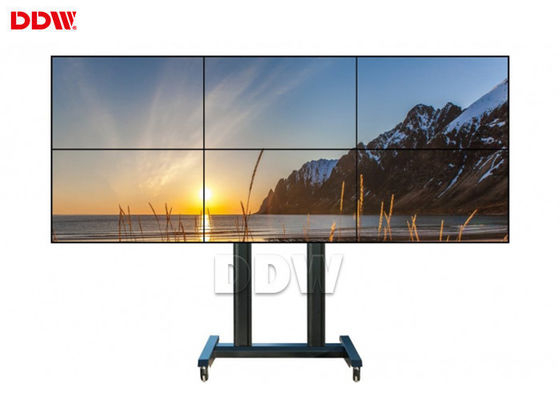

Arbitrary Combination DDW LCD Video Wall With 2 X HDMI Input / DVI Input

Basic Information
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW550DUN-TKB1
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Detail Information
Panel Size: 55" Bezel Width: 3.5mm
Brightness: 500 Nits Product Name: DDW LCD Video Wall
Color: 8Bit , 16M Aspect Ratio: 16:9
Panel Width: 1213.4 Mm Panel Height: 684.2 Mm
High Light:

seamless lcd display

,

frameless lcd display


Product Description

Arbitrary Combination DDW LCD Video Wall With 2 X HDMI Input / DVI Input





DDW LCD Video Wall​ Key features



1. 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

2. Flexible structure design ---easy installation ,extensible,arbitrary combination

3. Stable performance,suitable working for a long time

4. Original Innolux commercial grade lcd video wall panel 55 inch,16:9 Innolux a-Si TFT-LCD

5. 500nits brightness,5000:1 contrast

6. Only 3.5mm Ultra narrow bezel.high quality ,Practical ,good vision effect.



DDW LCD Video Wall​ Service


Our customizable solutions offer a range of user-friendly features that streamline operation and enable the interconnectivity of your corporate control room, meeting rooms, and multi-screen display systems. Integrating a range of content types and signal formats, DDW’s multi screen video wall, control room display and digital signage systems can help you get your message across to customers more effectively.


DDW offers a range of scalable connectivity and display processing systems for corporate av applications, as well as large-scale multiscreen video wall solutions for enterprise-level installations. The remote capabilities and real-time signal processing provided by our conference, board, collaboration and control room display systems support multi-site workflows and critical decision-making.



DDW LCD Video Wall​ Specifications



Model No: DDW-LW550DUN-TKB1
LCD Technology INNOLUX a-Si TFT-LCD (INNOLUX OFFICIAL MODEL. V420DK1-KS1)
Active Screen Diagonal 55"
Total Bezel Width 3.5 mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 500 cd/㎡
Contrast 4000:1
Viewing Angle H 178°|V 178°
Panel Dimension(WxHxD) 1213.4x684.2x38.9 mm
White Point 10,000 K
Display Colors 1.07GB colors
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption ≦160W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0℃~50℃
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing
