| Place of Origin: | Guangdong , China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW550HN12 |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | L/C , L/C , T/T |
| Supply Ability: | 3 , 000pcs per month |
| Product Name: | Interactive Video Wall | Color: | 8Bit,16.7M |
|---|---|---|---|
| Daisy Chain: | RJ45 Loop | Control Method: | RS232 Control |
| Total Physical Bezel: | 3.5 Mm | Resolution: | 1920*1080 |
| Brightness: | 700 Nits | Backlit Type: | LED |
| High Light: | interactive video display,interactive touch screen video wall |
||

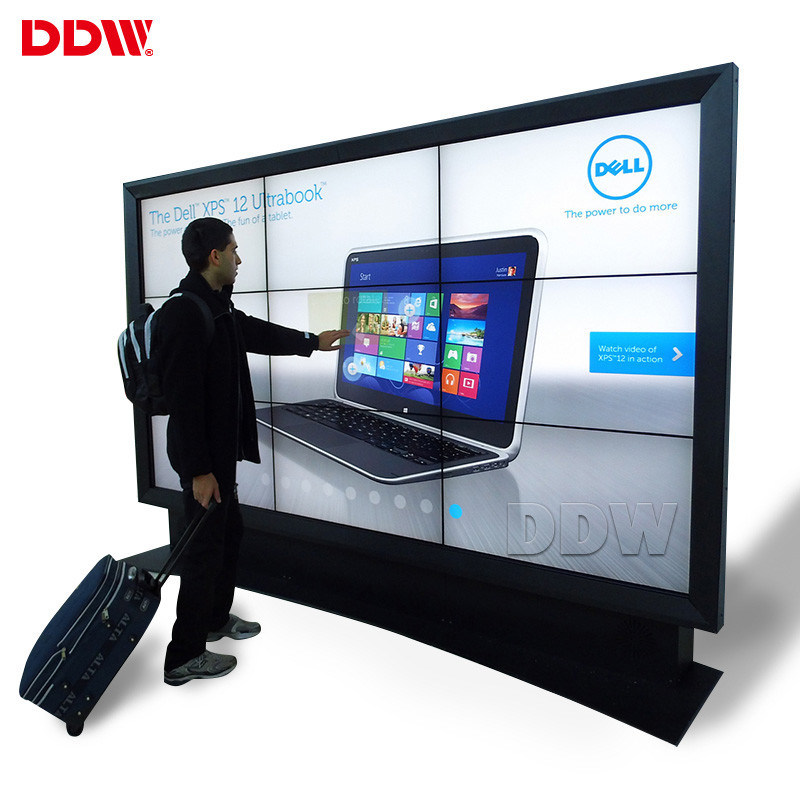

LG video wall 55" 1920x1080 700nits high resolution 3.5 mm bezel open source video wall
Parameters
1, 55 inch original DDW commercial grade lcd video wall display panel, 16:9 LG a-Si TFT-LCD
2, 700nits brightness , MEGA DCR contrast
3, FHD physical resolution 1920x1080
4, Only 3.5 mm ultra narrow bezel , high quality , practical , good vision effect
5, Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
6, FHD video wall unit , high brightness , high contrast , high gamut
7, Flexible structure design , easy installation , extensible , arbitrary combination
8, Stable performance , suitable working for a long time
Key features
Support a variety of signal ports
Built-in splicing module , Support splice function
Support creating one window PIP across the screen , roaming service , scaling , PIP
Support matrix joint control
Unique DNX motion supplement image processing technology
Dynamic image without motion trail
Splicing image processing RS-232 RJ45 loop-circuit input/output
Input by remote control with wire , mobile receiver head
Specifications
| Panel Specifications | |
| Active Screen Diagonal | 55'' |
| Bezel Width | Total: 3.5mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backight System | LED |
| Luminance(nits) | 700cd/sqm |
| Contrast | MEGA DCR |
| Viewing Angle | H 178°|V 178° |
| Panel Dimension(WxHxD) |
1213.5x684.3x67.7mm |
| White Point | 10,000 K |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | lower than 250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 0.85 |
| Storage Temperature | -20-60°C | -4-140°F |
| Storage Humidity | 85% non-condensing |
LCD Video Wall Board Specifications
| Support | PC | Color | 24bit |
| Signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
|
DVI HDMI DP |
Color | 24bit | |
| Line synchronization range | 30-80KHZ | ||
| Field synchronization range | 50-75HZ | ||
| Interface | Input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| Output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
