Camera Multi Interactive Video Wall 55 LG Wall Mounted With Low Noise Fans

Basic Information
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW550HN12
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Detail Information
Surface: Anti-glare Product Name: Interactive Video Wall
Resolution: 1920*1080 Input Voltage: AC 220v-250v
MTBF: > 100,000h Cooling: Low Noise Fans
Working Temperature: 0°C~50°C Display Colors: 8Bit,16.7M
High Light:

interactive touch screen video wall

,

interactive wall display


Product Description

55" Commercial Multi Interactive Video Wall LG Wall Mount LCD Display LW550HN12





Interactive Video Wall​ Key features:

1. Support a variety of signal ports.

2. Built-in splicing module, Support splice function

3. Support creating one window PIP across the screen, roaming service, scaling,PIP

4. Support matrix joint control.

5. Unique DNX motion supplement image processing technology,

6. Dynamic image without motion trail

7. Splicing image processing RS-232 RJ45 loop-circuit input/output.

8. Input by remote control with wire, mobile receiver head.



55 " Interactive Video Wall main parameters

1. Original DDW commercial grade lcd video wall display panel ,16:9 Samsung a-Si TFT-LCD

2. 700 nits brightness,MEGA DCR contrast.FHD video wall unit--- High brightness,high contrast,High gamut.

3. FHD physical resolution 1920x1080

4. Only 3.5 mm Ultra narrow bezel, high quality ,Practical ,good vision effect.

5. Interface--- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

6. Flexible structure design ---easy installation ,extensible,arbitrary combination

. Stable performance,suitable working for a long time



Specifications

Model No: DDW-LW550HN12
LCD Technology Samsung a-Si TFT-LCD
Active Screen Diagonal 55"
Pixel Pitch(WxH)

0.63x0.63 mm

Active Display Area(WxH)

1209.6 × 680.4 mm

Panel Dimension(WxHxD)

1213.5x684.3x67.7mm

Total Bezel Width 3.5mm | 0.208”
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backlight System LED
Luminance(nits) 700cd/sqm
Contrast 5000:1 (typ.)
Viewing Angle H 178°|V 178°
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption <=250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor/Outdoor
Working Temperature 0°C~50°C
Working Humidity 85% non-condensing
Storage Temperature -20-60°C | -4-149°F
Storage Humidity 85% non-condensing



Interactive Video Wall​ Board Specifications

Support PC Color 24bit
Signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)

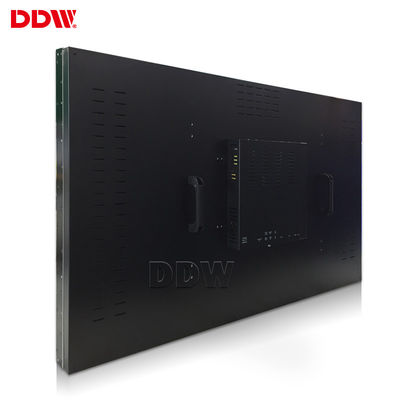

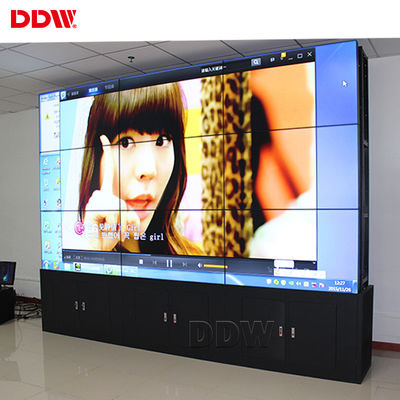

Camera Multi Interactive Video Wall 55 LG Wall Mounted With Low Noise Fans 0Camera Multi Interactive Video Wall 55 LG Wall Mounted With Low Noise Fans 1Camera Multi Interactive Video Wall 55 LG Wall Mounted With Low Noise Fans 2
