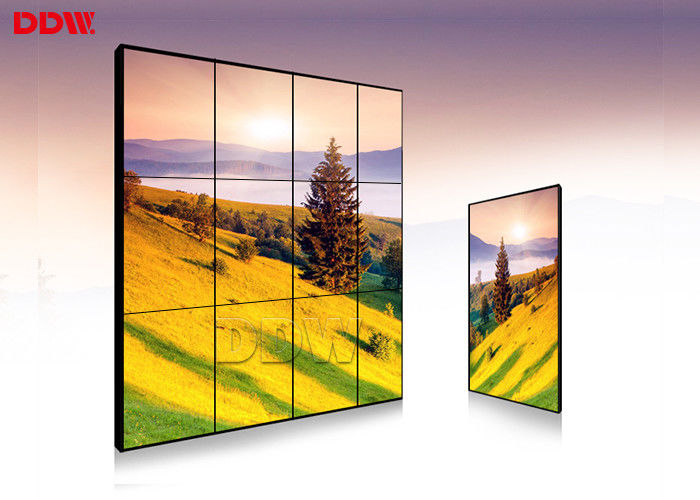

49 Inch LED Commercial Video Wall With 178 Degree Wide Viewing Angle

Basic Information
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW460HN13
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Detail Information
Product Name: Commercial Video Wall Size: 49 Inch
Resolution: 1920*1080 Input Voltage: AC 220v-250v
Total Physical Bezel: 1.7mm Refresh Rate: 60Hz
Brightness: 700nit Dimension: 1020.02x574.61 Mm
High Light:

lcd screen wall

,

seamless lcd video wall


Product Description

49 Inch LED Commercial Video Wall With 178 Degree Wide Viewing Angle





Narrow Bezel:

  •  46 inch LCD video wall narrow bezel available: 1.7 mm, 1.8 mm, 3.5 mm;
  •  5×3 LCD Video Wall show commercial advertisement, food picture, video play, product picture;

HD Panel Display

  •  HD video wall unit: high brightness, contrast and gamut.
  •  Resolution: 1920×1080, 3840×2160; Color: 16.7M; Brightness: 700cd/m2;

Functions:

  •  Supporting 225 units (15×15) multi-matrix;
  •  Single screen display. Each unit can display the picture independently;
  •  Image overlay. Superimposed on screen another picture;
  •  Easy to choose full screen or multi-screen display by control video wall controller.

 Panel dimension and interfaces:

  •  Dimension: 1020.02x574.61 mm;
  •  Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

Total bezel width

  •  Bezel size: 1.7 mm;
  •  The front shell adapting black matt anti magnetic unique and exquisite strong in anti interface;

Connection topology and applications:

  •  Supports multiple signal input: BNC, YPbPr, VGA, HDMI, DVI and RS232;
  •  Applications: Financial center, real estate center, security room, cinema, theater, etc;

Commercial Video Wall Specifications:



Model No: DDW-LW460HN13 Commercial Video Wall
LCD Technology SAMSUNG LCD
Active Screen Diagonal 46 Inch
Total Bezel Width 1.7 mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 700 cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Panel Dimension(WxHxD)
1020.02x574.61x68.1mm
White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing



Commercial Video Wall Board Specifications



Support PC Color 24bit
Signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)
