1920*1080P 55 Inch Commercial Video Wall With Anti Glare Surface 500 Nits

Basic Information
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW550DUN-TKB1
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Detail Information
Viewing Angle: 178x178 Bezel Width: 3.5mm
Brightness: 500 Nits Product Name: Commercial Video Wall
Backlight: LED Resolution: 1920*1080
High Light:

multi display video wall

,

seamless lcd video wall


Product Description

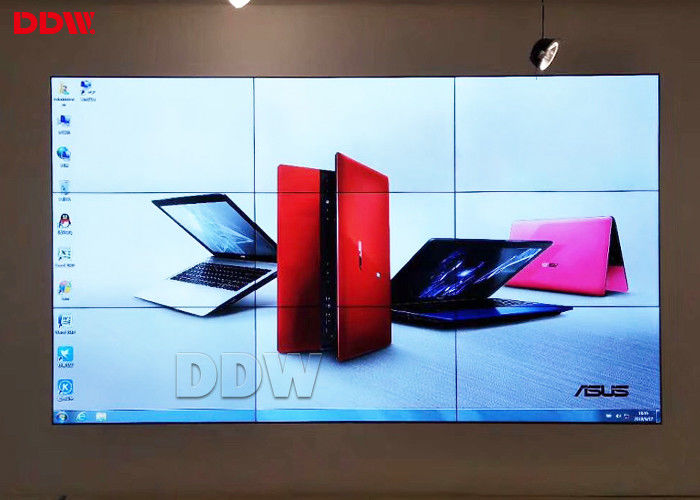

1920*1080P 55 Inch Commercial Video Wall With Anti Glare Surface 500 Nits



Commercial Video Wall​ basic informations:



Commercial Video Wall With original LG, Samsung panel, has a stylish design, lighter weight, easy to handle and install;

Adapting modular components, making maintenance operations and parts replacement very easily;

The installation method: floor standing;

Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;

7x24x365 keep working;



Commercial Video Wall parameters



1. Original DDW commercial grade lcd video wall display panel

2. 500 nits brightness,MEGA DCR contrast

3. FHD physical resolution 1920x1080

4. Only 3.5mm ultra narrow bezel, high quality ,Practical ,good vision effect.

5. Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

6. HD video wall unit--- High brightness,high contrast,High gamut .

7. Flexible structure design ---easy installation ,extensible,arbitrary combination

8. Stable performance,suitable working for a long time



Commercial Video Wall​ Key features:



1. Support a variety of signal ports.

2. Built-in splicing module, support splice function

3. Support creating one window PIP across the screen, roaming service, scaling,PIP

4. Support matrix joint control.

5. Unique DNX motion supplement image processing technology,



Commercial Video Wall​ Specifications:



Viewing Angle: 178x178 Bezel Width: 3.5mm
Brightness: 500 Nits Product Name: Commercial Video Wall
Backlight: LED Resolution: 1920*1080



LCD Video Wall Board Specifications



Support PC Color 24bit
Signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)
