Place of Origin: | Guangdong , China (Mainland) |
---|---|
Brand Name: | DDW |
Certification: | ISO9001 , CE , RoHS , FCC |
Model Number: | DDW-DV490FHM-NV0 |
Minimum Order Quantity: | Negotiable |
Price: | Negotiable |
Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
Delivery Time: | 3 working days upon payment |
Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
Supply Ability: | 3 , 000pcs per month |
Panel: | Original LG Panel | Bezel Width: | 3.5 Mm |
---|---|---|---|
Surface: | Anti-glare | Brightness: | 500 Nits Brightness |
Product Name: | Commercial Video Wall | Feature: | Ultra High Brightness |
Panel Width: | 1077.6 Mm | Panel Height: | 607.8 Mm |
High Light: | multi display video wall,seamless lcd video wall |

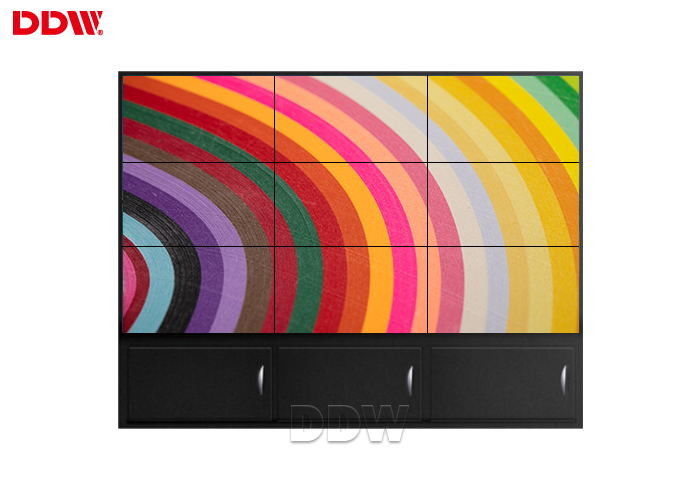

Original LG Panel Commercial Video Wall 500 Nits Brightness High Brightness
Commercial Video Wallfunctions
Commercial Video Wall Applications
This 49 inch Commercial Video Wall is the best cost-effective model , which can be widely used for cctv control room conference and meeting rooms , gym center , lobbies , security monitoring center , surveillance and retail center , restaurant and hotel , retail shopping mall advertising and information displays , public installations , exhibition and show center , live show , rental and advertising center , museums , church , transportation and mass info display systems.
Commercial Video Wall Specifications
Model No: | DDW-DV490FHM-NV0 Original LG Panel Commercial Video Wall 500 Nits Brightness High Brightness |
Active Screen Diagonal | 49" |
TotalBezel Width | 3.5 mm |
Aspect Ratio | 16:9 |
Physical Resolution | 1920x1080 |
Backight System | LED |
Luminance(nits) | 500 cd/sqm |
Contrast | MEGA DCR |
Viewing Angle | H 178°|V 178° |
Panel Dimension(WxHxD) |
1077.6x607.8x59.67mm |
White Point | 10,000 K |
Display Colors | 8Bit,16.7M |
Refresh Rate | 60Hz |
Response Time | <=6ms |
Life(hrs) | >60,000(hrs) |
MTBF | > 100,000 h |
Surface | Anti-glare |
Standby Power Consumption | <3W |
Maximum Power Consumption | lower than 250W |
Power Supply | AC100~240V 50/60 HZ |
Cooling | Low noise fans |
Heat Dissipation | 819 BTU/h (max) |
Working Time Capacity | 7x24x365hours |
Application Area | Indoor/Semi Outdoor |
Working Temperature | 0°C~50°C |
Commercial Video Wall LCD Video Wall Board Specifications
Support | PC | Color | 24bit |
Signal | Line synchronization range | 30-80KHZ | |
Field synchronization range | 50-75HZ | ||
DVI HDMI DP |
Color | 24bit | |
Line synchronization range | 30-80KHZ | ||
Field synchronization range | 50-75HZ | ||
Interface | Input | VGA x 1 | 15pin D-Sub |
DVI x 1 | DVI-I | ||
DP x 1 | Display Port | ||
HDMI x 2 | HDMI-19 pin | ||
Output | PANEL | LVDS 36Pin/2.0 | |
DP out | DP loop out |
