| Place of Origin: | Guangdong , China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW550DUN-TKB1 |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
| Product Name: | Commercial Video Wall | Viewing Angle: | 178x178 |
|---|---|---|---|
| Bezel Width: | 3.5mm | Surface: | Anti Glare Surface |
| Brightness: | 500 Nits | Size: | Custom Made |
| Resolution: | 1920*1080 | Input Voltage: | AC 220v-250v |
| High Light: | multi display video wall,seamless lcd video wall |
||

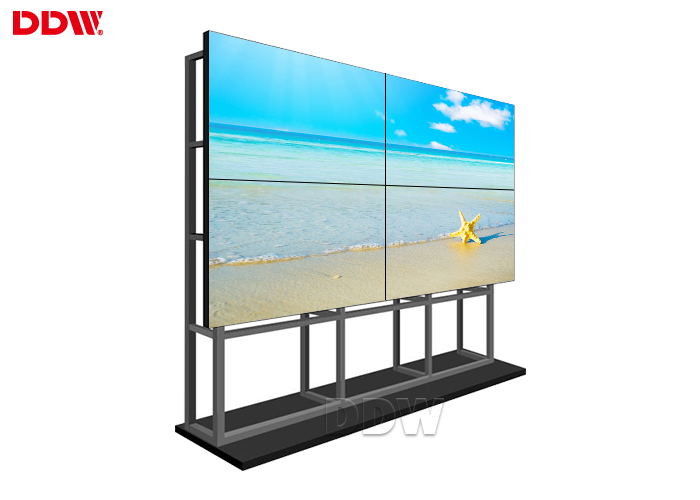

Custom Made Commercial Video Wall For Advertising Anti Glare Surface
Commercial Video Wall Introduction
1. Narrow design: the narrowest can reach 5.3mm (55did), and it truly achieves the seamless.
2. Interface type: VGA, DVI and HD connected analog signal and digital high-definition signal
3. Remote control function: by RS232 port and Ethernet connection for remote operation
4. Beautiful wall structure design, be convenient for installation and maintenance
5. Continuous boot for 7 * 24 hours, deserve to trust.
6. Support 365 days non-stop boot, the backlight life is up to 60,000 hours
7. Splicing mode is optional.
8. Support error and compensation function of video wall pictures
9. Modular design according to customer demand (M * N)
10. Diversification of the display mode
11. Excellent display
Commercial Video Wall main parameters
1. Original DDW commercial grade lcd video wall display panel
2. 500 nits brightness,MEGA DCR contrast
3. FHD physical resolution 1920x1080
4. Only 3.5mm ultra narrow bezel, high quality ,Practical ,good vision effect.
5. Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
6. HD video wall unit--- High brightness,high contrast,High gamut .
Commercial Video Wall Key features:
1. Support a variety of signal ports.
2. Built-in splicing module, support splice function
3. Support creating one window PIP across the screen, roaming service, scaling,PIP
4. Support matrix joint control.
5. Unique DNX motion supplement image processing technology,
6. Dynamic image without motion trail
Commercial Video Wall Specifications:
| Model No: | DDW-LW550DUN-TKB1 |
| Active Screen Diagonal | 55'' |
| Total Bezel Width | 3.5mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backight System | LED |
| Luminance(nits) | 500cd/sqm |
| Contrast | MEGA DCR |
| Viewing Angle | H 178°|V 178° |
| Pixel Pitch(WxH) |
0.63x0.63 mm |
| Active Display Area(WxH) |
1209.6 × 680.4 mm |
| Panel Dimension(WxHxD) |
1213.4x684.2x38.9mm
|
| White Point | 10,000 K |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | lower than 250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 0.85 |
| Storage Temperature | -20-60°C | -4-140°F |
| Storage Humidity | 85% non-condensing |
