| Place of Origin: | Guangdong , China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW460HN12 |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | L/C , L/C , T/T |
| Supply Ability: | 3 , 000pcs per month |
| Product Name: | CCTV Video Wall | Resolution: | 1920*1080 |
|---|---|---|---|
| Backlit Type: | LED | Panel Width: | 1021.98mm |
| Panel Height: | 576.57mm | Surface: | Anti-glare |
| Refresh Rate: | 60Hz | Contrast: | MEGA DCR |
| High Light: | conference room video wall,broadcast video wall |
||

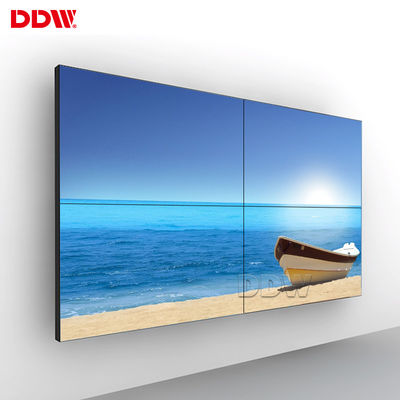

46 inch 3.5mm CCTV Video Wall for fashion store advertising DDW-LW460HN12
CCTV Video Wall Key features:
Support a variety of signal ports.
Built-in splicing module, Support splice function
Support Creating one window PIP across the screen, roaming service, scaling,PIP
Support matrix joint control.
Unique DNX motion supplement image processing technology,
Dynamic image without motion trail
Splicing image processing RS-232 RJ45 loop-circuit input/output.
Input by remote control with wire, mobile receiver head.
46" CCTV Video Wall main parameters
1, Original DDW commercial grade lcd video wall display panel,16:9 LG a-Si TFT-LCD
2, 700nits brightness,MEGA DCR contrast
3, FHD physical resolution 1920x1080
4, Only 3.5mm ultra narrow bezel, high quality ,practical ,good vision effect.
5, Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
6, HD video wall unit--- High brightness,high contrast,high gamut .
7, Flexible structure design ---easy installation ,extensible,arbitrary combination
8, Stable performance,suitable working for a long time

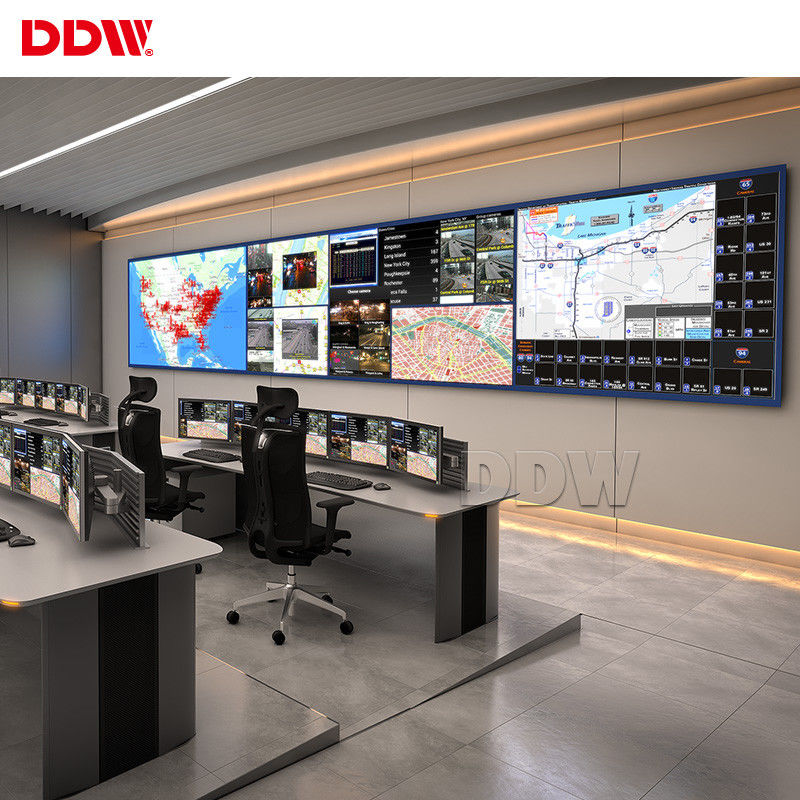

Advertising video wall can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.
CCTV Video Wall Specifications:
| LCD Technology | SAMSUNG LCD |
| Active Screen Diagonal | 46" |
| Bezel Width | Total: 3.5mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backight System | LED |
| Luminance(nits) | 700cd/sqm |
| Contrast | MEGA DCR |
| Viewing Angle | H 178°|V 178° |
| Panel Dimension(WxHxD) |
1021.98×576.57x66.9mm |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | lower than 250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 0.85 |
| Storage Temperature | -20-60°C | -4-140°F |
| Storage Humidity | 85% non-condensing |
CCTV Video Wall Board Specifications
| Support | PC | Color | 24bit |
| Signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
|
DVI HDMI DP |
Color | 24bit | |
| Line synchronization range | 30-80KHZ | ||
| Field synchronization range | 50-75HZ | ||
| Interface | Input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| Output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
