Place of Origin: | Guangdong , China (Mainland) |
---|---|
Brand Name: | DDW |
Certification: | ISO9001 , CE , RoHS , FCC |
Model Number: | DDW-LW490DUN-TJB1 |
Minimum Order Quantity: | 2pcs |
Price: | Negotiable |
Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
Delivery Time: | 3 working days upon payment |
Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
Supply Ability: | 3 , 000pcs per month |
Panel Size: | 49 Inch | Bezel Width: | 1.8 Mm |
---|---|---|---|
Brightness: | 500 Nits | Product Name: | CCTV Video Wall |
Panel Brand: | LG | Panel Width: | 1075.38 Mm |
Panel Height: | 605.8 Mm | Working Temperature: | 0°C~50°C |
High Light: | broadcast video wall,control room displays |
LG 49 Inch CCTV Video Wall Display LW490DUN-TJB1 1.8mm Ultra narrow bezel
CCTV Video Wall Key features:
49" CCTV Video Wall main parameters
1. Original DDW commercial grade lcd video wall display panel,16:9 LG a-Si TFT-LCD
2. 500 nits brightness,MEGA DCR contrast
3. FHD physical resolution 1920x1080
4. Only 1.8mm ultra narrow bezel, high quality ,practical ,good vision effect.
5. Interface--- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
6. HD video wall unit--- High brightness,high contrast,high gamut .
7. Flexible structure design ---easy installation ,extensible,arbitrary combination
8. Stable performance,suitable working for a long time

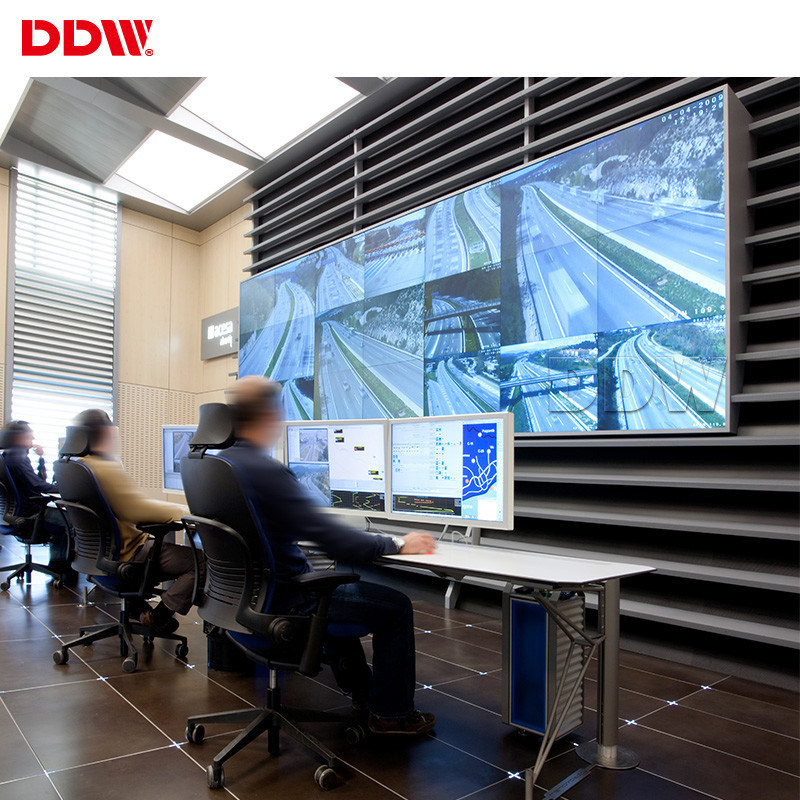

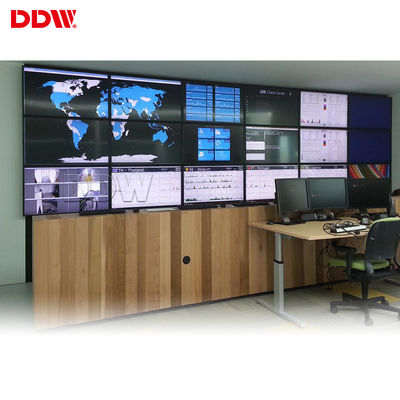

CCTV Video Wall Application
CCTV Video Wall technology is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and television, the product supports audio embedded solution, at the same time, supports the highest resolution to 1080p 60Hz, which should be more extensive.
CCTV Video Wall Specifications:
Model No: | DDW-LW490DUN-TJB1 |
LCD Technology | LG IPS LCD |
Active Screen Diagonal | 49" |
Bezel Width | Total: 1.8mm |
Aspect Ratio | 16:9 |
Physical Resolution | 1920x1080 |
Backight System | LED |
Luminance(nits) | 500 cd/sqm |
Contrast | MEGA DCR |
Viewing Angle | H 178°|V 178° |
Pixel Pitch(WxH) |
0.5593x0.5593mm |
Active Display Area(WxH) |
1073.8 × 604 mm |
Panel Dimension(WxHxD) |
1075.38 x 605.8x53.6mm |
White Point | 10,000 K |
Display Colors | 8Bit,16.7M |
Refresh Rate | 60Hz |
Response Time | <=6ms |
Life(hrs) | >60,000(hrs) |
MTBF | > 100,000 h |
Surface | Anti-glare |
Standby Power Consumption | <3W |
Maximum Power Consumption | lower than 250W |
Power Supply | AC100~240V 50/60 HZ |
Cooling | Low noise fans |
Heat Dissipation | 819 BTU/h (max) |
Working Time Capacity | 7x24x365hours |
Application Area | Indoor/Semi Outdoor |
Working Temperature | 0°C~50°C |
Working Humidity | 0.85 |
Storage Temperature | -20-60°C | -4-140°F |
Storage Humidity | 85% non-condensing |
CCTV Video Wall Board Specifications
Support | PC | Color | 24bit |
Signal | Line synchronization range | 30-80KHZ | |
Field synchronization range | 50-75HZ | ||
DVI HDMI DP |
Color | 24bit | |
Line synchronization range | 30-80KHZ | ||
Field synchronization range | 50-75HZ | ||
Interface | Input | VGA x 1 | 15pin D-Sub |
DVI x 1 | DVI-I | ||
DP x 1 | Display Port | ||
HDMI x 2 | HDMI-19 pin | ||
Output | PANEL | LVDS 36Pin/2.0 | |
DP out | DP loop out | ||
Power | Input power | DC24V/12V/5V | |
Drive panel | 5V/12V | ||
Power mode | Normal working mode, power saving mode | ||
Other | OSD | Chinese, English and other languages (other languages can be added as required) |
