Operation Center CCTV Video Wall 5.3mm 500nits Splice Screen Function Thin Bezel TV

Basic Information
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-DV55FHM-NS0
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: L/C , L/C , T/T
Supply Ability: 3 , 000pcs per month
Detail Information
Product Name: CCTV Video Wall Color: 8Bit,16.7M
Total Physical Bezel: 5.3 Mm Resolution: 1920x1080
Brightness: 500nits Backlit Type: LED
HDMI Input: 2 Refresh Rate: 60Hz
High Light:

conference room video wall

,

control room displays


Product Description

DV55FHM-NS0 Open source CCTV Video Wall 5.3mm splice screen function thin bezel tv





55 inch CCTV Video Wall Parameters
1, Original DDW commercial grade lcd video wall display panel  , 16:9 BOE a-Si TFT-LCD
2, 500nits brightness , MEGA DCR contrast.
FHD video wall unit , high brightness , high contrast , high gamut.
3, FHD physical resolution 1920x1080
4, Only 5.3mm ultra narrow bezel , high quality , practical , good vision effect
5,
Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
6, Flexible structure design , easy installation , extensible , arbitrary combination
7, Stable performance , suitable working for a long time



CCTV Video Wall Key features

Support a variety of signal ports

Built-in splicing module , Support splice function

Support creating one window PIP across the screen , roaming service , scaling , PIP

Support matrix joint control

Unique DNX motion supplement image processing technology

Dynamic image without motion trail

Splicing image processing RS-232 RJ45 loop-circuit input/output

Input by remote control with wire , mobile receiver head



CCTV Video Wall Specifications

Panel Specifications
Active Screen Diagonal 55"
Bezel Width Total: 5.3 mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 500cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Panel Dimension(WxHxD)

1077.6×607.8x55.7mm

White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing



CCTV Video Wall Board Specifications

Support PC Color 24bit
Signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)

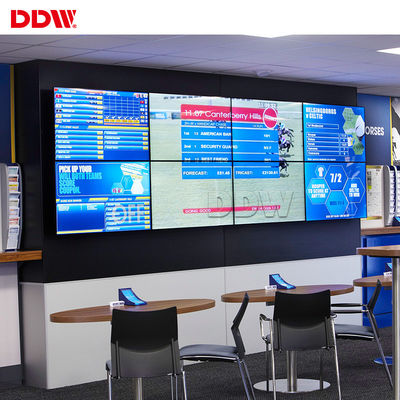

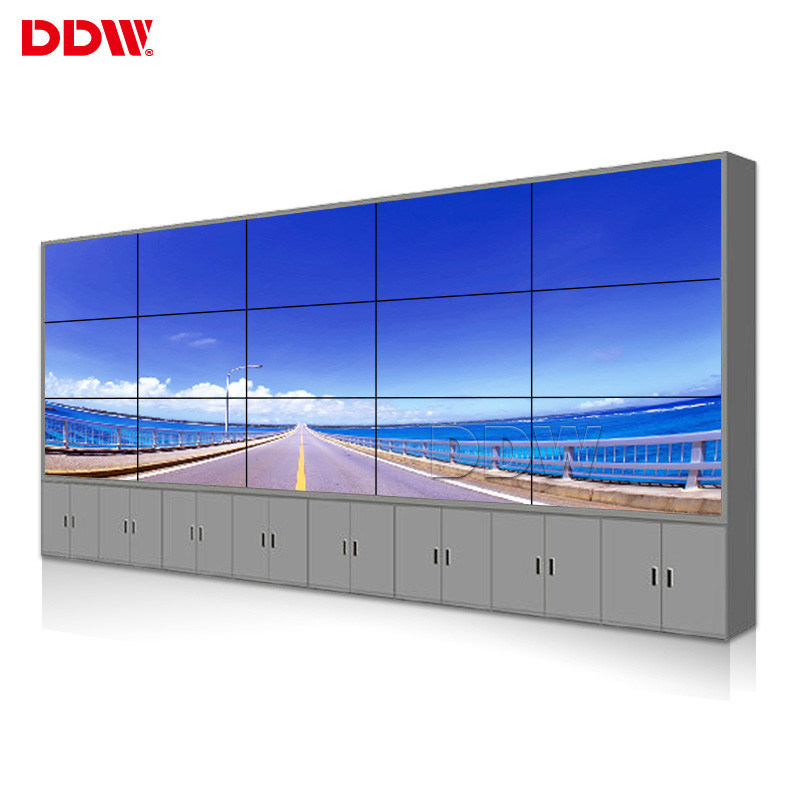

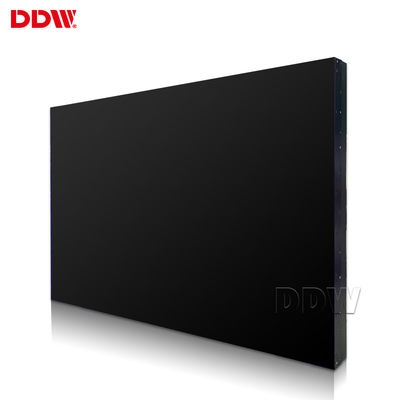

Operation Center CCTV Video Wall 5.3mm 500nits Splice Screen Function Thin Bezel TV 0Operation Center CCTV Video Wall 5.3mm 500nits Splice Screen Function Thin Bezel TV 1Operation Center CCTV Video Wall 5.3mm 500nits Splice Screen Function Thin Bezel TV 2
