Digital Video Wall Command Center , Interactive Multi Touch Video Wall

Basic Information
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-DV46FHM-NV0
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: L/C , L/C , T/T
Supply Ability: 3 , 000pcs per month
Detail Information
Product Name: CCTV Video Wall Type: TFT
Application: Indoor Color: 8Bit,16.7M
Daisy Chain: RJ45 Loop Input Voltage: 230W
Surface: Anti-glare Working Humidity: 0.85
High Light:

conference room video wall

,

control room displays


Product Description

Digital Video Wall Command Center , Interactive Multi Touch Video Wall

Video Wall Command Center Specifications


- LED backlight 500nits brightnes
- 100% New Samsung screen
Origianl Samsung DID panel
The world first & best seller lcd video wall screen!!
Most cost-effective lcd video wall solution screen in the world

Video Wall Command Center features:


1, Original DDW Industrial grade Samsung lcd video wall solution screen, 16:9 LG a-Si TFT-LCD
2, 500nits brightness,4000:1 contrast
3, HD physical resolution 1920x1080
4, Only 3.5 mm ultra narrow bezel.high quality ,practical ,good vision effect.
5, Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

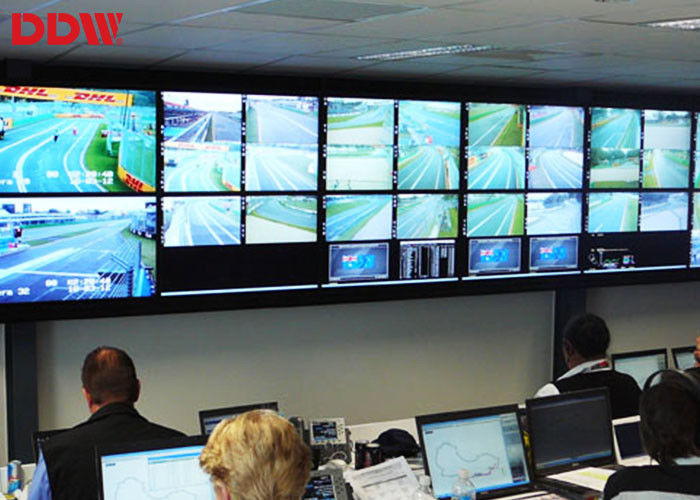

Video Wall Command Center Application


conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show,rental and advertising center,museums,church,transportation and mass info display systems.

Video Wall Command Center Specifications



Active Screen Diagonal 46" 16:9
Bezel Width Total: 3.5mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 500cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Panel Dimension(WxHxD)

1213.5x684.3x59mm

White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing


CCTV Video Wall​ Board Specifications

Support PC Color 24bit
Signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)
