| Place of Origin: | Guangdong , China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW490DUN-THC1 |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
| Size: | 49" | Surface: | Anti-glare |
|---|---|---|---|
| Product Name: | Video Wall Display Monitors | Backlight: | LED |
| Color: | 8Bit , 16M | Working Humidity: | 0.85 |
| Advantage: | High Color Gamut | MTBF: | > 100,000 H |
| High Light: | broadcast video wall,control room displays |
||

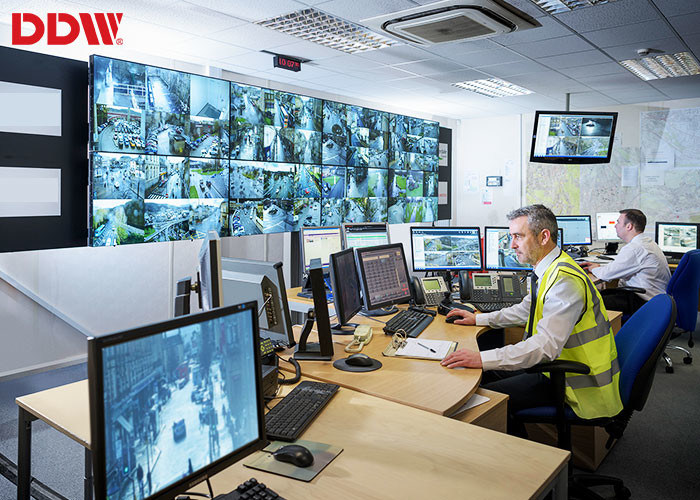

49" Video Wall Display Monitors , High Color Gamut Security Video Wall
Video Wall Display Monitors Introduction
Video Wall Display Monitors technology is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and television, the product supports audio embedded solution, at the same time, supports the highest resolution to 1080p 60Hz, which should be more extensive.
Video Wall Display Monitors features:
1. Support a variety of signal ports.
2. Built-in splicing module, Support splice function
3. Support creating one window PIP across the screen, roaming service, scaling,PIP
4. Support matrix joint control.
5. Unique DNX motion supplement image processing technology,
Video Wall Display Monitors Specifications:
| Model No: | DDW-LW49DUN-THC1 Video Wall Display Monitors |
| LCD Technology | LG IPS LCD |
| Active Screen Diagonal | 49" |
| Total Bezel Width | 3.5mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backight System | LED |
| Luminance(nits) | 500cd/sqm |
| Contrast | MEGA DCR |
| Viewing Angle | H 178°|V 178° |
| Pixel Pitch(WxH) |
0.5593x0.5593mm |
| Active Display Area(WxH) | 1073..8×604 mm |
| Panel Dimension(WxHxD) | 1077.6×607.8x55.6mm |
| White Point | 10,000 K |
| Maximum Power Consumption | lower than 250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 0.85 |
| Storage Temperature | -20-60°C | -4-140°F |
| Storage Humidity | 85% non-condensing |
Video Wall Display Monitors Board Specifications
| Support | PC | Color | 24bit |
| Signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
|
DVI HDMI DP |
Color | 24bit | |
| Line synchronization range | 30-80KHZ | ||
| Field synchronization range | 50-75HZ | ||
| Interface | Input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| Output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
