| Input/Output Resolution: | 1920*1080 | Roam,zoom,PIP: | Support |
|---|---|---|---|
| Max PIP Per Screen: | 1,4,16,customization | Color Quality: | 32bit |
| Input Output Signal Sources: | HDMI,DVI,VGA,AV,YPBPR,IP | Control Method: | RS232,LAN |
| Working Humidity: | 5-95% | Product Name: | Video Wall Processor |
| High Light: | multi display processor,video matrix processor |
||

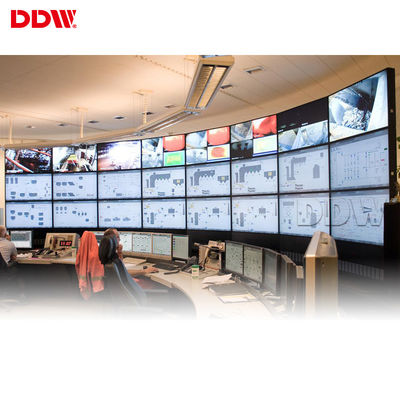

Ultra - Narrow Bezel Video Wall Processor With VGA HDMI DVI Signal Input
LCD video processor key features:
Simplified installation & disassembly
Pure hardware architecture board any combination:
DDW Video Wall Processor Technical Specifications
| Model series | With CBD | Function | No CBD | ||||
| Function description | 4channel CBD,16channel AV, 12channel VGA/DVI input, support multiple splicing player freely , and can show differentsigal at the same time to the system,require screen built in daisy chain board | ~ | 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays | ||||
| Input signal(optional) | CVBS | Support PAL/NTSC format, multiple BNC ports | ~ | ||||
| VGA/RGBHV | Multi-channel VGA DB-15 ports, support VGA full-format input | ~ | |||||
| HDMI, DVI, 4K-DVI, IP | Support 4K(3840x2160) input, each IP decode 4 channels | ~ | |||||
| YPbPr, YCbCr(customizable) | The same connector of VGA, RGBHV signal, support PAL, NTSC format and 720P, 1080i HSTV | ~ | |||||
| SDI(customizable) | BNC Port | ~ | |||||
| AV, SD/HD/3G SDI, IP decoding, optical fiber, DP, HDBaseT, Preview monitoring card can be customized; | ~ | ~ | |||||
| Input resolution | up to 4K,commonly used resolutions | ||||||
| Output signal format | VGA, RGBHV | signal channel XGA(1024x768@60Hz)/DB-15 port | ~ | ||||
| HDMI, DVI, 4K-DVI | HDMI, DVI output | ~ | |||||
| 3G SDI(customzable) | BNC Port loop out | ~ | |||||
| AV, YPbPr,DVI-HDMI converter, SD, HD, DP, HDBaset can be customized; | ~ | ~ | |||||
| Output resolution | up to 4K,commonly used resolutions | ||||||
| Control | Standard RS232 port | ||||||
| IR remote control(customzable), LAN contril, IOS, Android APP control( optional) | |||||||
| System control software | Special control software | ||||||
| Power Supply | Redundant power supply 110-220VAC, 50/60Hz | ||||||
| Consumption | 12W/channel | ||||||
| Working temperature | -20°C——60°C | ||||||
| Working Humidity | 5-95% | ||||||
| Case specification | 2U, 3.5U, 7U,10U, 12.5U, 15U, 23U standard rackmount chassis | ||||||
| Serial Control Interface | RS-232,9-pin female, Type-D | ||||||
| Baud Rate | 115200 | ||||||
| Pin configuration | 2=TX,3=RX,5=GND | ||||||
| Ethernet control interface | RJ-45 female, TCP/IP | ||||||
| Ethernet control speed | Auto 10M or 100M,Full-duplex or half-duplex | ||||||
| Working time | 365x7x24hrs | ||||||

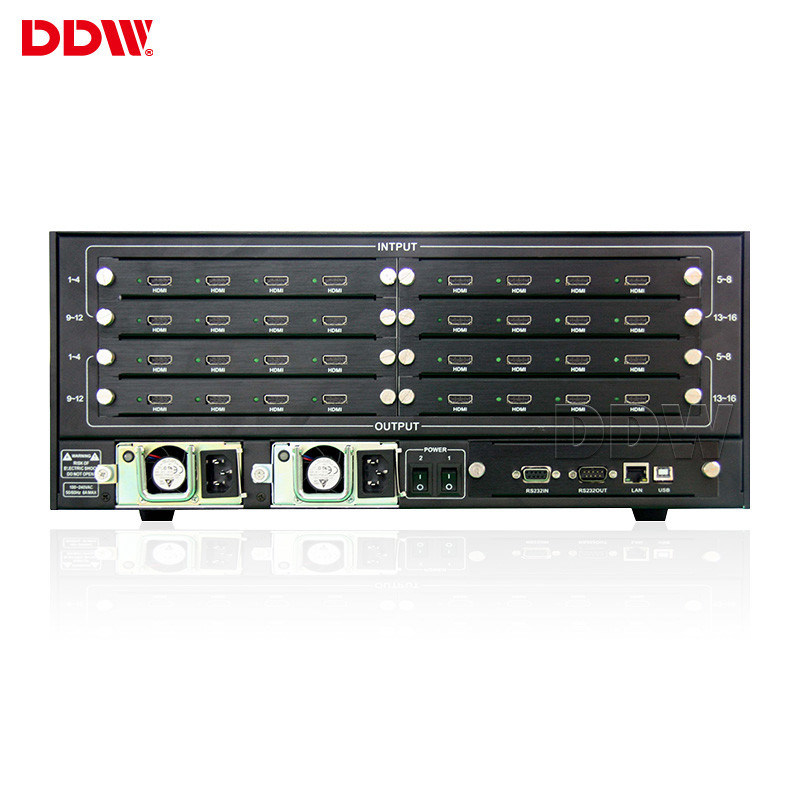

Hareware video wall controller U Chassis Specs
| Chassis U size | Controller Dims(mm) L*W*H |
Pack dims(mm) L*W*H |
N.W(kg) | G.W(kg) | Max input Nos. | Max output Nos. | Max Power Consumption(Watts) |
| 2U | 406×440×102 | 590×530×190 | 11.25 | 12.25 | 8 | 8 | 200 |
| 3.5U | 450x440x170 | 620x620x270 | 18.25 | 19.25 | 16 | 16 | 320 |
| 7U | 442×402×320 | 590×530×460 | 29.5 | 31.50 | 32 | 32 | 400 |
| 12.5U | 446×440×553 | 625×580×725 | 37.85 | 39.85 | 71 | 68 | 750 |
| 23U | 442×43×1022 | 615×570×1180 | 80.46 | 82.46 | 143 | 140 | 1300 |
