4K VGA PC Video Wall Controller 2x2 For Indoor Exhibition Display Color Depth 32bit/Pixel

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: DDW
Certification: ISO9001 ,CE , RoHS , FCC , 3C
Model Number: DDW-VPH1010
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Double layer carton pack
Delivery Time: 3working days upon payment
Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
Supply Ability: 1000pcs/month
Detail Information
Input/output Numbers: 10x10 Output Resolution: 1920*1080
Max PIP Per Screen: 1,4,16,customization Color Quality: 32bit
Roam,zoom,PIP: Support Input Output Signal Sources: HDMI,DVI,VGA,AV,YPBPR,IP
Control Method: RS232,LAN Product Name: PC Video Wall Controller
High Light:

multi screen controller

,

vga video wall processor


Product Description

4K VGA PC Video Wall Controller For Indoor Exhibition Display Color Depth 32bit/Pixel




PC Video Wall Controller​ key features:

  •  With special virtual display technology, full channel real HD 1080P signal processing;
  •  Signal Preview function available;
  •  Supporting PC, Android APK, iOS APP control software;
  •  Image parameters( white balance, brightness, contrast, saturation) can be adjusted;
  •  Scaling and positioning, size is scalable and position adjustable;
  •  With background logo display function. It can be customized;

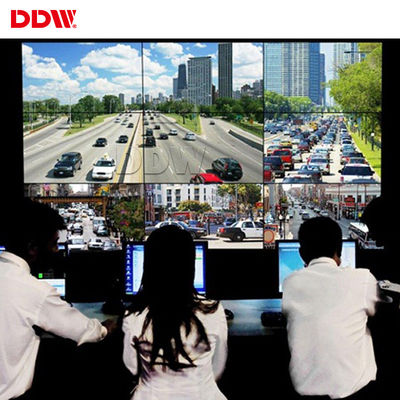

  •  Applications: company meeting, monitoring, exhibition, public security, railway, military, meteorological, aviation, market, museum; monitoring, command and scheduling systems, public security, railway, military, meteorological, aviation;

Multi – group video wall management:

  • It can manage several sets of splicing walls at the same time, common input signal sources between splicing walls, and the output does not interfere with each other;
  • Setting different resolutions, adjust colors and other parameters.

Support PC, mobile control software pre-monitoring display

  •  Supporting users to preview all input signals in real time on the mobile terminal of PC and control software;
  •  The operating signal source can be selected more intuitively as needed;
  •  On the interface, you can view large-screen real-time echo images to improve the operator’s work efficiency and prevent misuse;



DDW Video Wall Scaler Technical Specifications

Model series With CBD Function No CBD
Function description

4channel CBD,16channel AV, 12channel VGA/DVI input, support multiple splicing player freely , and can show different

sigal at the same time to the system,require screen built in daisy chain board

~ 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
Input signal(optional) CVBS Support PAL/NTSC format, multiple BNC ports ~
VGA/RGBHV Multi-channel VGA DB-15 ports, support VGA full-format input ~
HDMI, DVI, 4K-DVI, IP Support 4K(3840x2160) input, each IP decode 4 channels ~
YPbPr, YCbCr(customizable) The same connector of VGA, RGBHV signal, support PAL, NTSC format and 720P, 1080i HSTV ~
SDI(customizable) BNC Port ~
AV, SD/HD/3G SDI, IP decoding, optical fiber, DP, HDBaseT, Preview monitoring card can be customized; ~ ~
Input resolution up to 4K,commonly used resolutions
Output signal format VGA, RGBHV signal channel XGA(1024x768@60Hz)/DB-15 port ~
HDMI, DVI, 4K-DVI HDMI, DVI output ~
3G SDI(customzable) BNC Port loop out ~
AV, YPbPr,DVI-HDMI converter, SD, HD, DP, HDBaset can be customized; ~ ~
Output resolution up to 4K,commonly used resolutions
Control Standard RS232 port
IR remote control(customzable), LAN contril, IOS, Android APP control( optional)
System control software Special control software
Power Supply Redundant power supply 110-220VAC, 50/60Hz
Consumption 12W/channel
Working temperature -20°C——60°C
Working Humidity 5-95%
Case specification 2U, 3.5U, 7U,10U, 12.5U, 15U, 23U standard rackmount chassis
Serial Control Interface RS-232,9-pin female, Type-D
Baud Rate 115200
Pin configuration 2=TX,3=RX,5=GND
Ethernet control interface RJ-45 female, TCP/IP
Ethernet control speed Auto 10M or 100M,Full-duplex or half-duplex
Working time 365x7x24hrs

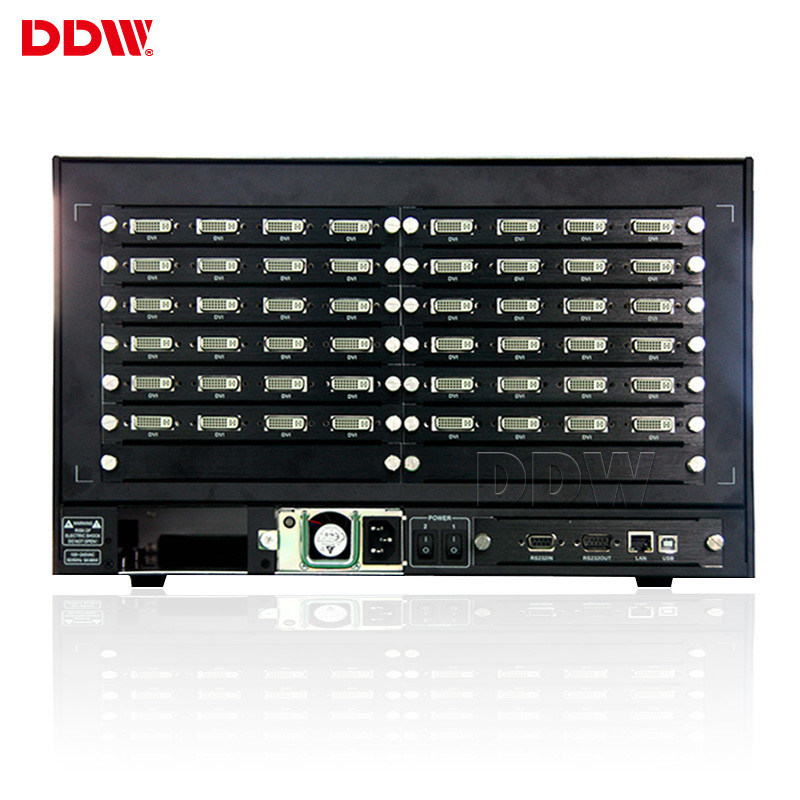

Hareware video wall controller U Chassis Specs

Chassis U size Controller Dims(mm)
L*W*H
Pack dims(mm)
L*W*H
N.W(kg) G.W(kg) Max input Nos. Max output Nos. Max Power Consumption(Watts)
2U 406×440×102 590×530×190 11.25 12.25 8 8 200
3.5U 450x440x170 620x620x270 18.25 19.25 16 16 320
7U 442×402×320 590×530×460 29.5 31.50 32 32 400
12.5U 446×440×553 625×580×725 37.85 39.85 71 68 750
23U 442×43×1022 615×570×1180 80.46 82.46 143 140 1300


4K VGA PC Video Wall Controller 2x2 For Indoor Exhibition Display Color Depth 32bit/Pixel 0
4K VGA PC Video Wall Controller 2x2 For Indoor Exhibition Display Color Depth 32bit/Pixel 14K VGA PC Video Wall Controller 2x2 For Indoor Exhibition Display Color Depth 32bit/Pixel 2
