| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 ,CE , RoHS , FCC , 3C |
| Model Number: | DDW-VPH0606 |
| Minimum Order Quantity: | 1 Set/Sets |
| Price: | Negotiable |
| Packaging Details: | Double layer carton pack |
| Delivery Time: | 3working days upon payment |
| Payment Terms: | T/T,L/C,Western Union,Alibaba Trade Assurance |
| Supply Ability: | 1000pcs/month |
| Product Name: | Video Wall Controller 6x6 | Input/output Numbers: | 6x6 |
|---|---|---|---|
| Input Output: | Card Board | Feature: | Real Time Image |
| Color Quality: | 32bit | Input Output Signal Sources: | HDMI,DVI,VGA,AV,YPBPR,IP |
| Control Method: | RS232,LAN | Baud Rate: | 115200 |
| High Light: | multi screen controller,vga video wall processor |
||

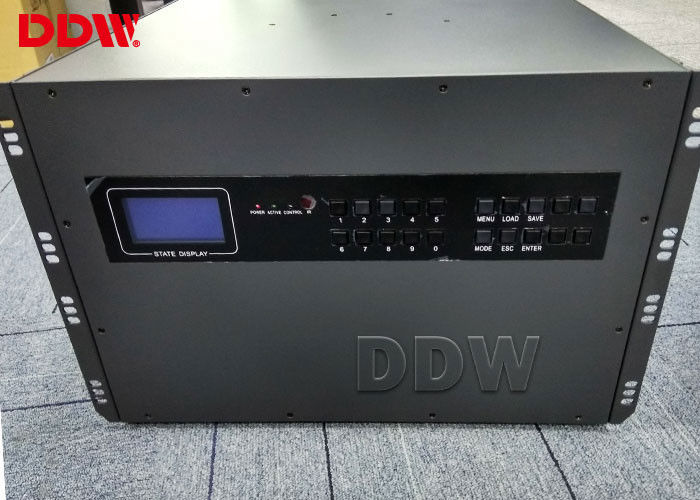

Real Time Image PC Video Wall Controller 6x6 Input Output Card Board
Video Wall Controller 6x6 Features:
1. Full hardware configuration without operating system
2. High-speed bus parallel processing technology, high-bandwidth uncompressed processing
3. Real time image display, no dropped frames
4. Flexibility to increase the input/output board
5. Support partial input and output cards with mixed interpolation
6. Input/output card supports hot-swappable, plug-and-play functionality
7. Output resolution up to 1920 x 1200
8. Rich BNC, VGA, DVI, HDMI, SDI and RJ45 input interface, support for multiple resolutions up to 1920x1200,control via RS-232 or Ethernet
Video Wall Controller 6x6 Simplified installation & disassembly
Video Wall Controller 6x6 Technical Specifications
| Model series | With CBD | Function | No CBD | ||||
| Function description |
4channel CBD,16channel AV, 12channel VGA/DVI input, support multiple splicing player freely , and can show different sigal at the same time to the system,require screen built in daisy chain board |
~ | 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays | ||||
| Input signal(optional) | CVBS | Support PAL/NTSC format, multiple BNC ports | ~ | ||||
| VGA/RGBHV | Multi-channel VGA DB-15 ports, support VGA full-format input | ~ | |||||
| HDMI, DVI, 4K-DVI, IP | Support 4K(3840x2160) input, each IP decode 4 channels | ~ | |||||
| YPbPr, YCbCr(customizable) | The same connector of VGA, RGBHV signal, support PAL, NTSC format and 720P, 1080i HSTV | ~ | |||||
| SDI(customizable) | BNC Port | ~ | |||||
| AV, SD/HD/3G SDI, IP decoding, optical fiber, DP, HDBaseT, Preview monitoring card can be customized; | ~ | ~ | |||||
| Input resolution | up to 4K,commonly used resolutions | ||||||
| Output signal format | VGA, RGBHV | signal channel XGA(1024x768@60Hz)/DB-15 port | ~ | ||||
| HDMI, DVI, 4K-DVI | HDMI, DVI output | ~ | |||||
| 3G SDI(customzable) | BNC Port loop out | ~ | |||||
| AV, YPbPr,DVI-HDMI converter, SD, HD, DP, HDBaset can be customized; | ~ | ~ | |||||
| Output resolution | up to 4K,commonly used resolutions | ||||||
| Control | Standard RS232 port | ||||||
| IR remote control(customzable), LAN contril, IOS, Android APP control( optional) | |||||||
| System control software | Special control software | ||||||
| Power Supply | Redundant power supply 110-220VAC, 50/60Hz | ||||||
| Consumption | 12W/channel | ||||||
| Working temperature | -20°C——60°C | ||||||
| Working Humidity | 5-95% | ||||||
| Case specification | 2U, 3.5U, 7U,10U, 12.5U, 15U, 23U standard rackmount chassis | ||||||
| Serial Control Interface | RS-232,9-pin female, Type-D | ||||||
| Baud Rate | 115200 | ||||||
Hareware video wall controller U Chassis Specs
| Chassis U size | Controller Dims(mm) L*W*H |
Pack dims(mm) L*W*H |
N.W(kg) | G.W(kg) | Max input Nos. | Max output Nos. | Max Power Consumption(Watts) |
| 2U | 406×440×102 | 590×530×190 | 11.25 | 12.25 | 8 | 8 | 200 |
| 3.5U | 450x440x170 | 620x620x270 | 18.25 | 19.25 | 16 | 16 | 320 |
| 7U | 442×402×320 | 590×530×460 | 29.5 | 31.50 | 32 | 32 | 400 |
| 12.5U | 446×440×553 | 625×580×725 | 37.85 | 39.85 | 71 | 68 | 750 |
