Roam Support PC Video Wall Controller For Multi Screen Display Samsung

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: DDW
Certification: ISO9001 ,CE , RoHS , FCC , 3C
Model Number: DDW-VPH1818
Minimum Order Quantity: negotiation
Price: Negotiable
Packaging Details: Double layer carton pack
Delivery Time: 3working days upon payment
Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
Supply Ability: 1000pcs/month
Detail Information
Name: PC Video Wall Controller Panel Brand: Samsung
Application: Video Wall Controller For Multi Screen Display Roam: Support
Max PIP Per Screen: 1,4,16,customization Maximum Input Numbers: 18
Maximum Output Numbers: 18 Input Output Signal Sources: HDMI,DVI,VGA,AV,YPBPR,IP
High Light:

multi screen controller

,

multi display controller


Product Description

Roam Support PC Video Wall Controller For Multi Screen Display Samsung



Support PC, mobile control software pre-monitoring display:

  •  Supporting users to preview all input signals in real time on the mobile terminal of PC and control software;
  •  The operating signal source can be selected more intuitively as needed;
  •  On the interface, you can view large-screen real-time echo images to improve the operator’s work efficiency and prevent misuse;

Integrated control function:

  •  Integrated control serial port control interface;
  •  Transferred out RS232, RS485, DMX512 type command, control the projector, large screen switch, curtain lift and so on;

PC Video Wall Controller Technical Specifications



Model series With CBD Function No CBD
Function description 4channel CBD,16channel AV, 12channel VGA/DVI input,

support multiple splicing player freely , and can show different

sigal at the same time to the system,require screen built in daisy chain board

~ 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
Input signal(optional) CVBS Support PAL/NTSC format, multiple BNC ports ~
VGA/RGBHV Multi-channel VGA DB-15 ports, support VGA full-format input ~
HDMI, DVI, 4K-DVI, IP Support 4K(3840x2160) input, each IP decode 4 channels ~
YPbPr, YCbCr(customizable) The same connector of VGA, RGBHV signal, support PAL, NTSC format and 720P, 1080i HSTV ~
SDI(customizable) BNC Port ~
AV, SD/HD/3G SDI, IP decoding, optical fiber, DP, HDBaseT, Preview monitoring card can be customized; ~ ~
Output resolution up to 4K,commonly used resolutions
Control Standard RS232 port
IR remote control(customzable), LAN contril, IOS, Android APP control( optional)
System control software Special control software
Power Supply Redundant power supply 110-220VAC, 50/60Hz
Consumption 12W/channel
Working temperature -20°C——60°C
Working Humidity 5-95%
Case specification 2U, 3.5U, 7U,10U, 12.5U, 15U, 23U standard rackmount chassis
Serial Control Interface RS-232,9-pin female, Type-D
Baud Rate 115200
Pin configuration 2=TX,3=RX,5=GND
Ethernet control interface RJ-45 female, TCP/IP
Ethernet control speed Auto 10M or 100M,Full-duplex or half-duplex
Working time 365x7x24hrs


Technical specification of input/output connectors



VGA/RGB input Input: 15pin HD D-Sub, female
Sync mode: HV independent sync
Color Depth: 32bit/pixel
Resolution: 640*480/60HZ—1920*1200/60HZ
Input impedance :75Ω
Video input Input connector: BNC
Detecting: full-format auto detecting
Input impedance :75Ω
VGA or DVI output Resolution:1024x768/60HZ-1920x1200/60HZ
Color depth: 32bit/pixel
Output impedance:75Ω
Physical properties of input/output connectors
Signals Connectors Type
Composite VIDEO input BNC female
VGA input 15 pin HD D-Sub female
VGA output 15 pin HD D-Sub female
DVI output 24+5 or 24+1 standard female
AUX RS-232 9-pin D-Sub female
Main RS-232 9-pin D-Sub female

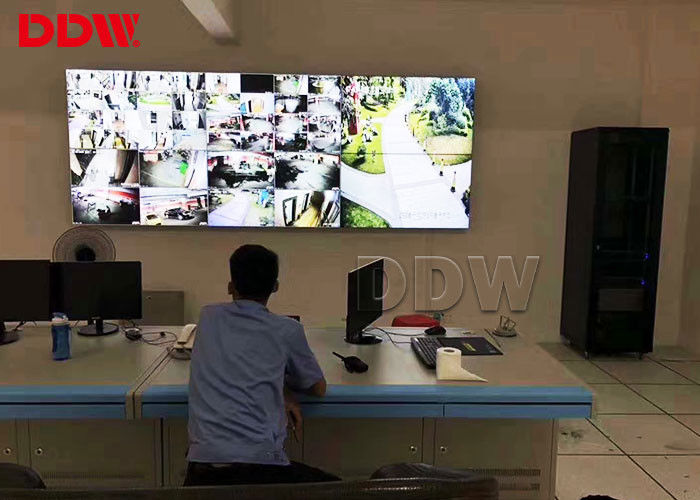

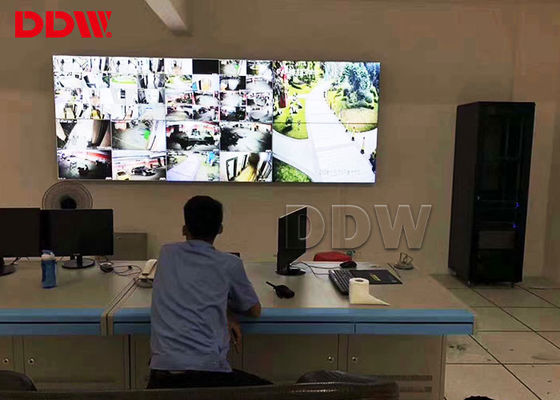

Roam Support PC Video Wall Controller For Multi Screen Display Samsung 0Roam Support PC Video Wall Controller For Multi Screen Display Samsung 1
