| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 ,CE , RoHS , FCC , 3C |
| Model Number: | DDW-VPH0808 |
| Minimum Order Quantity: | 10 Unit/Unit |
| Price: | Negotiable |
| Packaging Details: | Double layer carton pack |
| Delivery Time: | 3working days upon payment |
| Payment Terms: | T/T,L/C,Western Union,Alibaba Trade Assurance |
| Supply Ability: | 1000pcs/month |
| Product Name: | Video Wall Control Box | Output Resolution: | 1920x1080 |
|---|---|---|---|
| Roam,zoom,PIP: | Support | Max PIP Per Screen: | 1,4,16,customization |
| Color Quality: | 32bit | Input Output Signal Sources: | HDMI,DVI,VGA,AV,YPBPR,IP |
| Control Method: | RS232,IP | Consumption: | 12W/channel |
| High Light: | video display controller,lcd video wall controller |
||

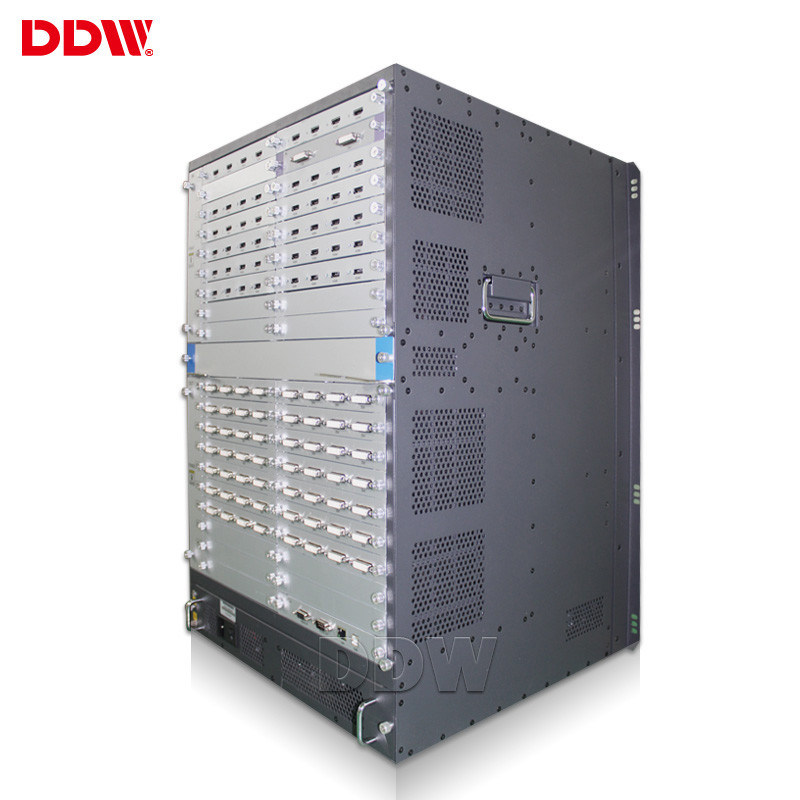

LCD Video Wall Control Box Dp 4K DVI HDMI SD Input Android IOS Control 32bit
Video Wall Control Box application:

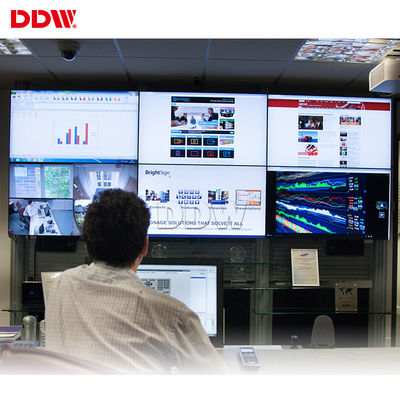

1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.
2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.
3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.
4. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.
5. Public Service: Hospital, School, Telecom, Post office, etc.
6. Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model houses, Sales offices, the entrance of elevator, etc.
Video Wall Control Box key features:
1, Compact and expandable inputs and outputs
40 input channels , can be extended up to 18 or 36 output channels , you can realize a large-scale multi-display system in a compact one-unit housing.
2, Power-saving design
Build-in power-saving graphics board and parts reduction effect by one unit structure design.
3, Easy Replacement
Rear detachable input-output board introduction and expansion can be easily.
User can replace the input and output board with a single unit without removing the entire chassis from the rack.
4, 2 split ~ 4 split display function (one single screen)
One single screen up to 4 signal source simultaneously input , it can be layout in any pattern and superimposed images.
5, Video Wall configuration support
iMAX-5000 series , which has built-in the high resolution of digital image processor , supports both of the matrix and mosaic video wall configuration.
6, Seamless Switching Processor Inside
No joints , no black screen , smooth video switching processor inside.
Video Wall Control Box Technical Specifications
| Model series | With CBD | Function | No CBD | ||||
| Function description | 4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image | ~ | 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays | ||||
| Input signal(optional) | CVBS | Support PAL/NTSC format, multiple BNC ports | ~ | ||||
| VGA/RGBHV | Multi-channel VGA DB-15 ports, support VGA full-format input | ~ | |||||
| HDMI, DVI, 4K-DVI, IP | Support 4K(3840x2160) input, each IP decode 4 channels | ~ | |||||
| YPbPr, YCbCr(customizable) | The same connector of VGA, RGBHV signal, support PAL, NTSC format and 720P, 1080i HSTV | ~ | |||||
| SDI(customizable) | BNC Port | ~ | |||||
| AV, SD/HD/3G SDI, IP decoding, optical fiber, DP, HDBaseT, Preview monitoring card can be customized; | ~ | ~ | |||||
| Input resolution | up to 4K,commonly used resolutions | ||||||
| Output signal format | VGA, RGBHV | signal channel XGA(1024x768@60Hz)/DB-15 port | ~ | ||||
| HDMI, DVI, 4K-DVI | HDMI, DVI output | ~ | |||||
| 3G SDI(customzable) | BNC Port loop out | ~ | |||||
| AV, YPbPr,DVI-HDMI converter, SD, HD, DP, HDBaset can be customized; | ~ | ~ | |||||
| Output resolution | up to 4K,commonly used resolutions | ||||||
| Control | Standard RS232 port | ||||||
| IR remote control(customzable), LAN contril, IOS, Android APP control( optional) | |||||||
| System control software | Special control software | ||||||
| Power Supply | Redundant power supply 110-220VAC, 50/60Hz | ||||||
| Consumption | 12W/channel | ||||||
| Working temperature | -20°C——60°C | ||||||
| Working Humidity | 5-95% | ||||||
| Case specification | 2U, 3.5U, 7U,10U, 12.5U, 15U, 23U standard rackmount chassis | ||||||
| Serial Control Interface | RS-232,9-pin female, Type-D | ||||||
| Baud Rate | 115200 | ||||||
| Pin configuration | 2=TX,3=RX,5=GND | ||||||
| Ethernet control interface | RJ-45 female, TCP/IP | ||||||
| Ethernet control speed | Auto 10M or 100M,Full-duplex or half-duplex | ||||||
| Working time | 365x7x24hrs | ||||||
Hareware video wall controller U Chassis Specs
| Chassis U size | Controller Dims(mm) L*W*H |
Pack dims(mm) L*W*H |
N.W(kg) | G.W(kg) | Max input Nos. | Max output Nos. | Max Power Consumption(Watts) |
| 2U | 406×440×102 | 590×530×190 | 11.25 | 12.25 | 8 | 8 | 200 |
| 3.5U | 450x440x170 | 620x620x270 | 18.25 | 19.25 | 16 | 16 | 320 |
| 7U | 442×402×320 | 590×530×460 | 29.5 | 31.50 | 32 | 32 | 400 |
| 12.5U | 446×440×553 | 625×580×725 | 37.85 | 39.85 | 71 | 68 | 750 |
| 23U | 442×43×1022 | 615×570×1180 | 80.46 | 82.46 | 143 | 140 | 1300 |
