| Place of Origin: | Guangdong , China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LEDP3.91 |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
| Product Name: | LED Video Wall Display | Feature: | Waterproof |
|---|---|---|---|
| Panel Type: | Die-case Aluminum | Frame Frequency: | 50/60 Hz |
| Refresh Rate: | 3840Hz | Drive Mode: | Constant Driving,1/16S |
| Advantage: | High Contrast Ratio | Gray Scale: | 65536 |
| High Light: | seamless video wall displays,large display wall |
||

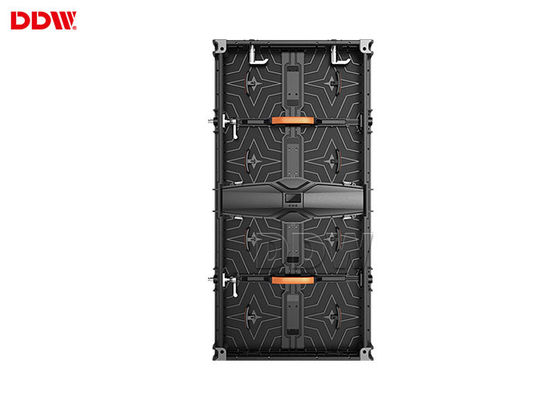

Noiseless Rental LED Video Wall Display Light Weight High Contrast Ratio Waterproof
LED Video Wall Display Advantages
Light weight,Easy installation,High contrast ratio,Noiseless design,Black SMD LEDs
Precise
Die-casting aluminum, within 0. 1mm error,with up and down handle lock and arc lock for left and right inner arc-10 degree Outer Arc-5 degree
Water-proof
LED,Module,cabinet and connector all use water-proof design IP65/54, totally meet the needs of outdoor application.Mature signal transmission, safer and more reliable.
Silent design
Superior heat dissipation, farless design-fulfilling quiet working Silent environment without noise.
Intelligent monitoring module
Intelligent cabinet with intelligent monitoring (LED display) shows the working status, smart monitoring the signal and record the span life.
Perfect design of maintenance
RGB Share’s new generation rental series supports both front and rear maintenance (both module and power supply), saving time and space for customers.
To protect both the module and user from accidental damage all cabinet corners are designed with protectable way.

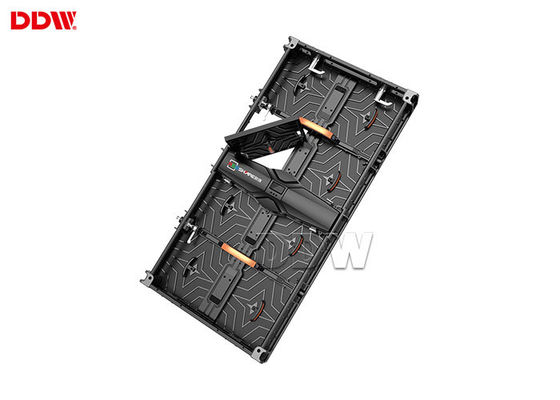

Front maintain cabinet/ Convenient to assemble and disassemble
Use of Special heat dissipation structure make excellent heat dissipation.
Ultra-wide viewing angle give you the largest screen viewing area
Die-cast aluminum cabinet design light and easy to transport.
It’s important to know the role of a video wall processor. Generally speaking, they are meant to split the images on a screen. So basically, your video wall can have one solid image or you can use a video wall controller/processor to divide up the images so they can be displayed individually on each screen. The controllers are broken down into two groups; one that is hardware based and the other is software based.
LED Video Wall Display Introduction
| Pixel Configuration | SMD1921 |
| Pixel Pitch(mm) | 3.91 |
| Pixel Density(dot/m2) | 65536 |
| Module Pixel Matrix (W×H) | 64×64 |
| Module Size(mm) | 250(W)×250(H) |
| Module Weight(kg) | 0.6 |
| Module Power Consumption Max.(W) | 45 |
| Module/Panel(W×H) | 2×4 |
| Panel Resolution(W×H) | 128×256 |
| Panel Size(mm) | 500(W)×1000(H) |
| Panel Weight(kg) | 15 |
| Maitainence Mode | Rear Maitainence |
| Panel type | Die-case Aluminum |
| Brightness(nits) | ≥3000(color temperature 6500k) |
| Color Temperature(K) | 3200—9300 |
| Viewing Angle(Hor/Vert°) | 140/120 |
| Power Consumption Max(W/m2) | 800 |
| Power Consumption Avg(W/m2) | 200-300 |
| Operating Power Source | AC90~264V,Frequency 47-63(Hz) |
| Frame Frequency(Hz) | 50&60 |
| Drive Mode | Constant Driving,1/16S |
| Gray Scale | 65536 |
| Refresh Rate(Hz) | 3840 |
| Gray Scale per Color Level | 16bit |
| Working Temperature/Humidity(℃/RH) | -20 – 60 / 10%-85%RH |
| Storage Temperature/Humidity(℃/RH) | -20 – 60 / 10%-85%RH |
