| Place of Origin: | Guangdong , China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LEDP5.95 |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
| Product Name: | LED Video Wall Display | Module Size: | 250×250 Mm |
|---|---|---|---|
| Panel Resolution: | 84×168 | Pixel Configuration: | SMD2727 |
| Panel Type: | Die-case Aluminum | Drive Mode: | Constant Driving,1/7S |
| Gray Scale: | 65536 | Refresh Rate: | 3840Hz |
| High Light: | seamless video wall displays,seamless led video wall |
||

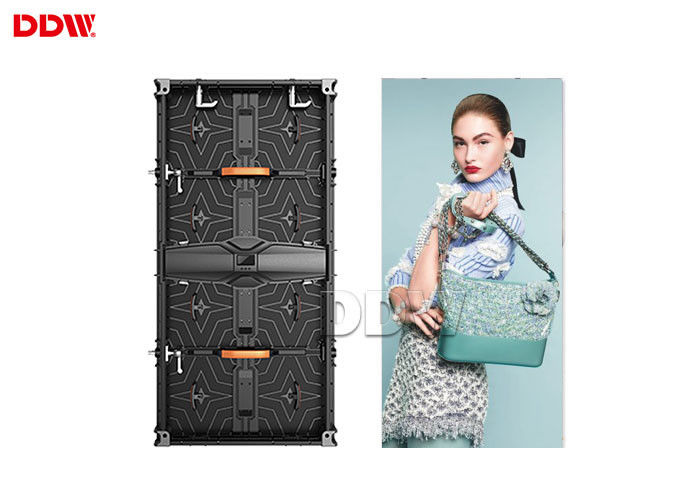

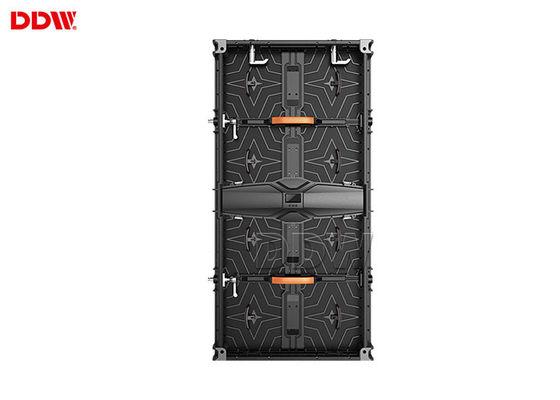

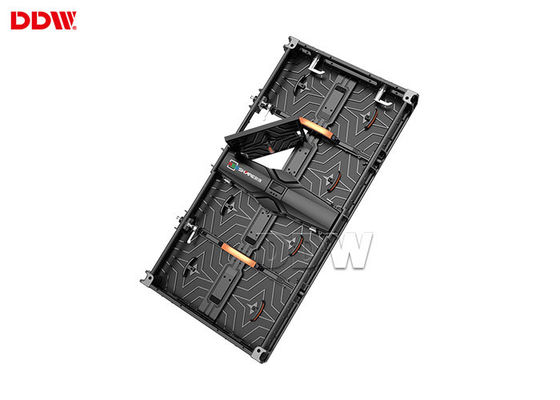

3200—9300K LED Video Wall Display Die case Aluminum 176×176 Panel Resolution
LED Video Wall Display Main Features
Front maintain cabinet/ Convenient to assemble and disassemble
Use of Special heat dissipation structure make excellent heat dissipation.
Ultra-wide viewing angle give you the largest screen viewing area
Die-cast aluminum cabinet design light and easy to transport.
Intelligent monitoring module
Intelligent cabinet with intelligent monitoring (LCD display) shows the working status, smart monitoring the signal and record the span life.
Perfect design of maintenance
RGB Share’s new generation rental series supports both front and rear maintenance (both module and power supply), saving time and space for customers.
Protection design
To protect both the module and user from accidental damage all cabinet corners are designed with protectable way.
You are probably very familiar with LED lightbulbs of various sorts in your home and office and if being eco-friendly is a major sticking point for you, an LED video wall may be what you need. They are energy efficient, compact, super lightweight and offer a great picture quality that can be viewed from any distance or angle without any colour or picture distortions. They also get the edge when a bezel-free display is desired and tend to be used on curved walls and by broadcast media for on-camera background displays thanks to colour and luminance qualities.
It’s also important to know the role of a video wall processor. Generally speaking, they are meant to split the images on a screen. So basically, your video wall can have one solid image or you can use a video wall controller/processor to divide up the images so they can be displayed individually on each screen. The controllers are broken down into two groups; one that is hardware based and the other is software based. While the hardware based video wall processor offers reliability and high performance, a software based controller allows you to use it in VOIP applications and to launch maps and other informational tools.
LED Video Wall Display Specification
| Pixel Configuration | SMD2727 |
| Pixel Pitch(mm) | 5.95 |
| Pixel Density(dot/m2) | 28224 |
| Module Pixel Matrix (W×H) | 42×42 |
| Module Size(mm) | 250(W)×250(H) |
| Module Weight(kg) | 0.6 |
| Module Power Consumption Max.(W) | 45 |
| Module/Panel(W×H) | 2×4 |
| Panel Resolution(W×H) | 84×168 |
| Panel Size(mm) | 500(W)×1000(H) |
| Panel Weight(kg) | 15 |
| Maitainence Mode | Rear Maitainence |
| Panel type | Die-case Aluminum |
| Brightness(nits) | ≥3000(color temperature 6500k) |
| Color Temperature(K) | 3200—9300 |
| Viewing Angle(Hor/Vert°) | 140/120 |
| Power Consumption Max(W/m2) | 800 |
| Power Consumption Avg(W/m2) | 200-300 |
| Operating Power Source | AC90~264V,Frequency 47-63(Hz) |
| Frame Frequency(Hz) | 50&60 |
| Drive Mode | Constant Driving,1/7S |
| Gray Scale | 65536 |
| Refresh Rate(Hz) | 3840 |
| Gray Scale per Color Level | 16bit |
| Working Temperature/Humidity(℃/RH) | -20 – 60 / 10%-85%RH |
| Storage Temperature/Humidity(℃/RH) | -20 – 60 / 10%-85%RH |
