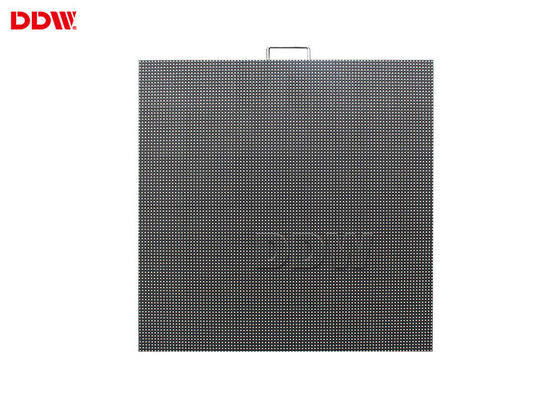

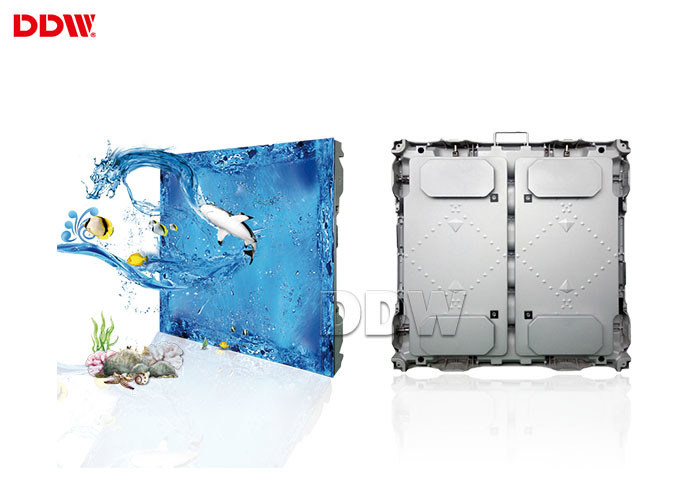

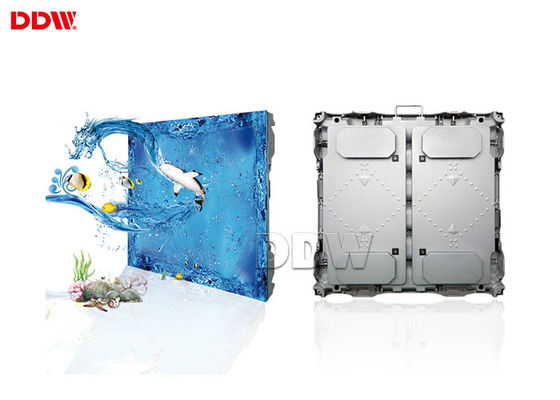

High Protection Grade Seamless Video Wall Displays , Rear Maitainence HD LED Video Wall

Basic Information
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LEDP10
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Detail Information
Product Name: LED Video Wall Display Feature: Energy Saving
Color Temperature: 3200—9300K Working Humidity: 10%-95%RH
Frame Frequency: 50&60 Hz Refresh Rate: ≥1920 Hz
Panel Type: Steel Cabinet Gray Scale: 65536
High Light:

seamless led video wall

,

large display wall


Product Description

High Protection Grade Fixed LED Video Wall Display Environment Protection Rear Maitainence



Fixed LED Video Wall Main Features

  •  Ultra-light---lighter 40% than aluminum die-csting cabinet.

  •  High precision---seamless splicing though CNC machining.

  •  Super slim---high-strength,more slim than aluminum in the design,thiner around 30%.

  •  Easy installation---installed by quick lock for 20s only.

IP65 front Water proof

High protection grade of IP65 guarantees,Durability, Reliability, Anti-ultraviolet and Steady.



Dual channel heat dissipation

Low power consumption and fast heat dissipation/ energy saving and environment protection.



Super wide angle

Wide Viewing Angle can achieve to Vertical viewing 150 Horizontal viewing 120.



Application

Fixed LED Video Wall is a special multi-monitor setup that consists of multiple computer monitors, video projectors, or television sets tiled together contiguously or overlapped in order to form one large screen.Video walls are sometimes found in control rooms, stadiums, and other large public venues.





LED Video Wall Display Specification

Pixel Configuration SMD3535
Pixel Pitch(mm) 10
Pixel Density(dot/m2) 10000
Module Pixel Matrix (W×H) 32×16
Module Size(mm) 320(W)×160(H)
Module Weight(kg) 0.8
Module Power Consumption Max.(W) 40
Module/Panel(W×H) 3x6
Panel Resolution(W×H) 96×96
Panel Size(mm) 960(W)×960(H)×160(D)
Panel Weight(kg) 35

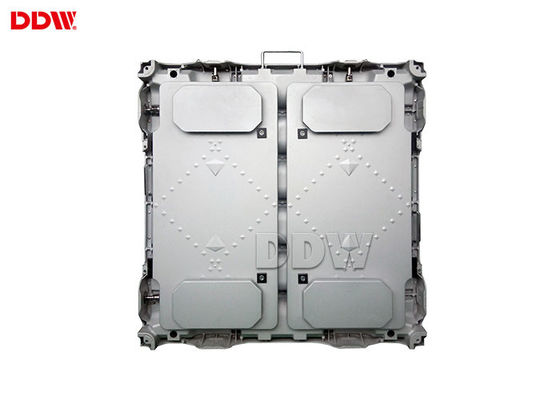

Maitainence Mode Rear Maitainence
Panel type Steel cabinet
Brightness(nits) ≥6500
Color Temperature(K) 3200—9300
Viewing Angle(Hor/Vert°) 140/120
Power Consumption Max(W/m2) 1000
Power Consumption Avg(W/m2) 200-300
Operating Power Source AC90~264V,Frequency 47-63(Hz)
Frame Frequency(Hz) 50&60
Drice Mode Constant Driving,1/2S
Gray Scale 65536
Refresh Rate(Hz) ≥1920
Gray Scale per Color Level 16bit
Working Temperature/Humidity(℃/RH) -20 – 60 / 10%-85%RH
Storage Temperature/Humidity(℃/RH) -20 – 60 / 10%-85%RH



High Protection Grade Seamless Video Wall Displays , Rear Maitainence HD LED Video Wall 0High Protection Grade Seamless Video Wall Displays , Rear Maitainence HD LED Video Wall 1High Protection Grade Seamless Video Wall Displays , Rear Maitainence HD LED Video Wall 2
