| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW550HN16 |
| Minimum Order Quantity: | negotiation |
| Price: | Negotiation |
| Packaging Details: | Quality carton with full wood box packing |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3 , 000pcs per month |
| Name: | Irregular Video Wall | Feature: | High Resolution |
|---|---|---|---|
| Application: | Indoor, Semi-outdoor | Viewing Angle: | 178°/178° |
| Contrast Ratio: | 4000:1 | Screen: | 4 Screen |
| Response Time: | 6ms | Input Voltage: | 220V |
| High Light: | mosaic video wall,art video wall |
||

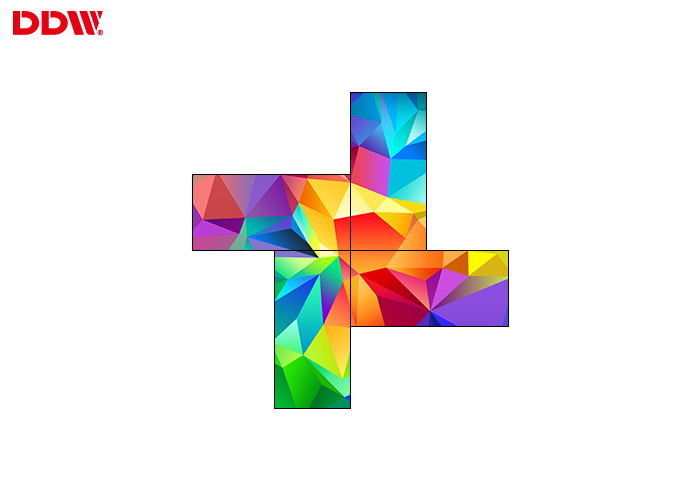

High Resolution Irregular Video Wall / 4 Screen Artistic Video Wall
Irregular Video Wall Feature
SAME SIZE HORIZONTAL COMBINATION
Users can use their imagination to freely build blocks
SPLICING AT ANY ANGLE OF THE SAME SIZE
Users can rotate the screen at any angle for free combination
DIFFERENT SIZE MIXED STITCHING
Users can mix and match large and small screens according to the scene, and arrange them at any angle.
Irregular Video Wall Parameters:
| Name | High Resolution Irregular Video Wall / 4 Screen Artistic Video Wall | ||
| Item No. | Components | Descriptions | |
| 1 | 55" Samsung 1.7mm bezel | 500nits brightness,WLED Backlit,1920x1080 resolution,with 1080P HDMI input | |
| 2 | System controller | 1 in 16output HDMI splitter | |
| 3 | Bracket | POP out bracket for 55" lcd video wall | |
| 4 | Standard Accessories | IR Controller,Power Cables,RJ45 Cables,RS232-RJ45 Connector | |
| 5 | Packing | 4/5 screens in 1 wooden case | |
| 1080P HDMI input daisy chain board Signal Inputs, Outputs | |||
| DVI-I DUAL LINK | 1 | ||
| HDMI input 2K | 1 | ||
| VGA input | 1 | ||
| RS232 IN | 1 | ||
| RS232 OUT | 2 | ||
| IR IN | 1 | ||
| AC IN | AC100-240V | ||
| Color System Support | PAL/NTSC/SECAM | ||
| Control Type | IR Remote &Software Control | ||
| Menu Language | English | ||
| Vertical/Horizontal Display | Support | ||
Packaging & Delivery
Selling Units:Single item
Single package size: 110X20X80 cm
Single gross weight:32.0 kg
Package Type:Quality carton with full wood box packing
