| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW550HN16 |
| Minimum Order Quantity: | negotiation |
| Price: | Negotiation |
| Packaging Details: | Quality carton with full wood box packing |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3 , 000pcs per month |
| Name: | Irregular Video Wall | Type: | TFT |
|---|---|---|---|
| Structure: | Flexible Structure | Viewing Angle: | 178° |
| Contrast Ratio: | 4000:1 | Application: | Airport , Finacial , Metro |
| Response Time: | 6ms | Input Voltage: | 220V |
| High Light: | mosaic video wall,artistic video wall |
||

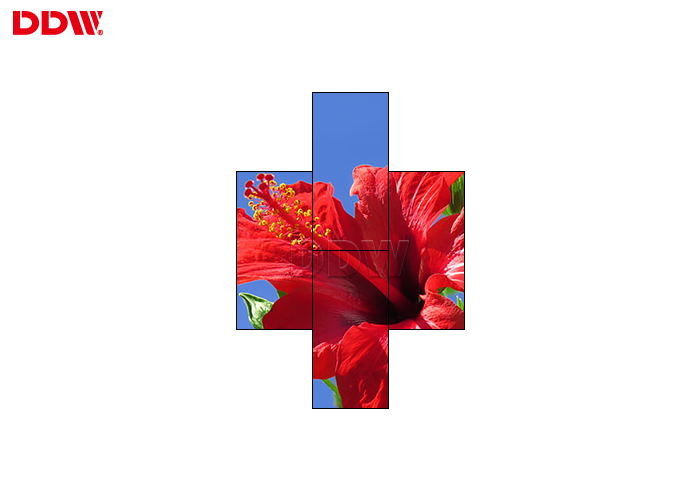

Flexible Structure Irregular Video Wall For Airport , Finacial , Metro
Irregular Video Wall Description
Experience total freedom to design a fully customised and flexible video wall, as you turn or pivot each screen to create your vision. The irregular video wall concept also involves the arrangement of screens of different sizes with small spaces between them, in a mosaic. This concept bases on the ability of the human eye to spot the missing areas and to integrate them in the visual landscape.
Irregular Video Wall Parameters:
| Name | Flexible Structure Irregular Video Wall For Airport , Finacial , Metro | ||
| Item No. | Components | Descriptions | |
| Panel Specifications | |||
| LCD Technology | Original Samsung DID LCD | ||
| Active Screen Diagonal | 55" | ||
| Panel Dimension(WxH) | 1211.6*682.4mm | ||
| Total Bezel Width | 1.7mm | ||
| Aspect Ratio | 16:9 | ||
| Physical Resolution | 1920*1080 | ||
| Backlight System | WLED | ||
| Luminance(nits) | 500cd/m2 | ||
| Contrast | 1500:1 (typ.) | ||
| Viewing Angle | H 178°|V 178° | ||
| Display Colors | 8Bit,16.7M | ||
| Refresh Rate | 60Hz | ||
| Response Time | <=6ms | ||
| Life(hrs) | >60,000(hrs) | ||
| MTBF | > 100,000 h | ||
| Surface | Anti-glare | ||
| Standby Power Consumption | <3W | ||
| Maximum Power Consumption | <=260W | ||
| Power Supply | AC100~240V 50/60 HZ | ||
| Cooling | Low noise fans | ||
| Working Time Capacity | 7x24x365hours | ||
| Working Temperature | 0℃~50℃ | ||
| Working Humidity | 0.85 | ||
| Storage Temperature | -20-60°C | -4-140°F | ||
| Storage Humidity | 85% non-condensing | ||
| Net Weight | 26kg/unit | ||
| 1080P HDMI input daisy chain board Signal Inputs, Outputs | |||
| DVI-I DUAL LINK | 1 | ||
| HDMI input 2K | 1 | ||
| VGA input | 1 | ||
| RS232 IN | 1 | ||
| RS232 OUT | 2 | ||
| IR IN | 1 | ||
| AC IN | AC100-240V | ||
| Color System Support | PAL/NTSC/SECAM | ||
| Control Type | IR Remote &Software Control | ||
| Menu Language | English | ||
| Vertical/Horizontal Display | Support | ||
Packaging & Delivery
Selling Units:Single item
Single package size: 110X20X80 cm
Single gross weight:32.0 kg
Package Type:Quality carton with full wood box packing
Lead Time :
| Quantity(Piece) | 1 - 50 | 51 - 100 | >100 |
| Est. Time(days) | 3 | 5 | To be negotiated |
