| Place of Origin: | Guangdong , China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-DV55FHM-NS0 |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
| Panel Size: | 55inch | Resolution: | 1920 X 1080 |
|---|---|---|---|
| Bezel Width: | 5.3mm | Color: | 8Bit , 16M |
| Brightness: | 500nits | Surface: | Anti-glare |
| Backlight: | LED | Control Method: | RS232 Control |
| Response Time: | 5ms | Input Voltage: | AC 110-240v |
| Signal Support: | DVI//VGA/AV/YPBPR | Working Time Capacity: | 7x24hours |
| High Light: | hd video wall,samsung commercial displays |
||

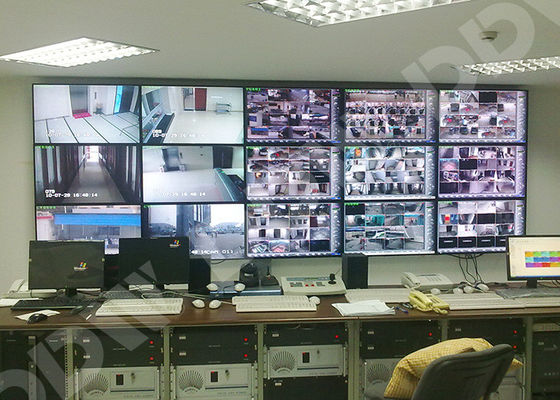

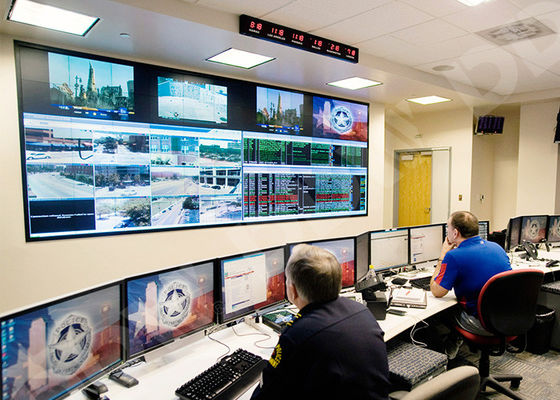

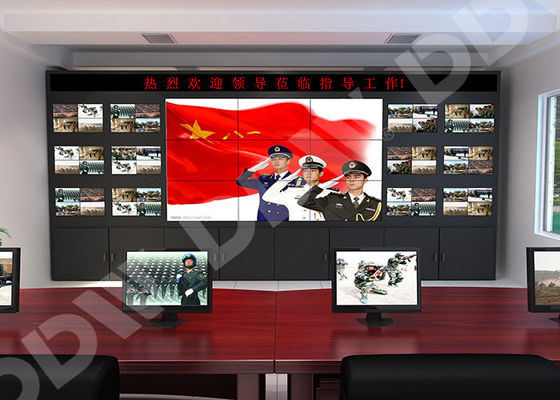

Samsung digital walls control room video wall 5.3mm 500 nits for monitoring center DDW-DV55FHM-NS0
DDW offers a range of scalable connectivity and display processing systems for corporate av applications, as well as large-scale multiscreen video wall solutions for enterprise-level installations. The remote capabilities and real-time signal processing provided by our conference, board, collaboration and control room display systems support multi-site workflows and critical decision-making.
Key features
Specifications
| LCD Technology | Samsung a-Si TFT-LCD |
| Active Screen Diagonal | 55" |
| Pixel Pitch(WxH) | 0.630x0.630mm |
| Active Display Area(WxH) | 1073.8 × 604 mm |
| Panel Dimension(WxHxD) | 1077.6x607.8x55.7mm |
| Total Bezel Width | 5.3mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backlight System | LED |
| Luminance(nits) | 500cd/sqm |
| Contrast | 5000:1 (typ.) |
| Viewing Angle | H 178°|V 178° |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | <=250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor/Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 85% non-condensing |
| Storage Temperature | -20-60°C | -4-149°F |
| Storage Humidity | 85% non-condensing |
| DVI-I DUAL LINK | 1 |
| 1 | |
| VGA | 1 |
| CVBS IN | 1 |
| CVBS OUT | 1 |
| RS232 IN | 1 |
| RS232 OUT | 1 |
| ISP IN | 1 |
| IR IN | 1 |
| CODING BUTTON | 1 |
| AC IN | AC100-240V |
| Color System Support |
PAL/NTSC/SECAM |
| Control Type | IR Remote &Software Control |
| Menu Language | English/Chinese(Multiple Language can be customized) |
