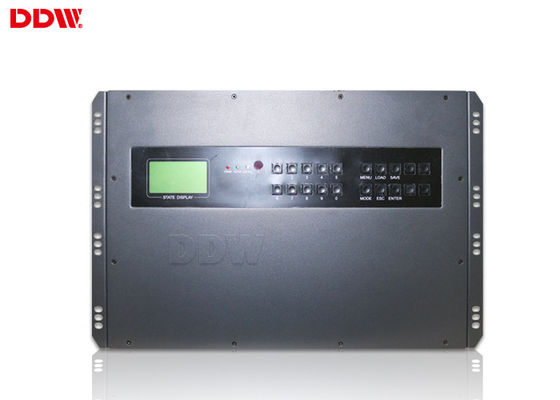

Digital signage video wall display wall processor , multi screen processor APP remote control DDW-VPH1515

Basic Information
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 ,CE , RoHS , FCC
Model Number: DDW-VPH1515
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Double layer carton pack
Delivery Time: 3working days upon payment
Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
Supply Ability: 1000pcs/month
Detail Information
Solid Display: Support Each Screen Input With Separate Signal IPad/iPhone Remote Control: Support Customized APP Remote Control
Scene Management: Support Multiple Scenes Management/recall Function Control Method: RS232,IP
Rich Resolution: Support 1080P,1080I,720P,480P &multiple Resolution Inputs Frame Material: Aluminum Brushed
Standard Packing: Double Layer Carton Box Pack Weight: 5-100kg
High Light:

video display processor

,

multi display processor


Product Description

Digital signage video wall display wall processor multi screen processor APP remote control DDW-VPH1515





DDW Lcd video wall Processor is one of professional modularized and hardware Lcd video wall processor which supports ,DVI,VGA,AV,YPBPR, each channel support 1920x1200 resolution signal inputs and outputs,RS232 and IP control method.



Key Features:

1 . Support large-screen image freeze

2 . Support open-window effects processing

3 . Flexibility to increase the input/output board
4 . Real time image display, no dropped frames

5 . Full hardware configuration without operating system

6 . Support partial input and output cards with mixed interpolation
7 . Redundant power supply design, thermostatically controlled fan
8 . Input/output card supports hot-swappable, plug-and-play functionality
9 . Support display at arbitrary position, at any size and any superimposed
10 . High-speed bus parallel processing technology, high-bandwidth uncompressed processing
11 . Support memory card or network transmission ultra-high-definition pictures, peer-to-peer ultra-high-definition mosaic wall background image
12 . Chassis backplane + plug-in configuration, excellent performance for radiating, anti-dust chassis, equipped with replaceable air filter can be stable for a long time, even in harsh environments




Some of the Video Wall Controller Parameters:

Vertical/Horizontal Display Support
Combine Display Support combine any horizontal &vertical numbers of screens and show display
Support combine all screens together to show 1image
Solid Display Support each screen input with separate signal
PIP/Zoom/Roaming Support open one window for each screen, each window can be zoomed &roaming internal freely
iPad/iPhone remote control Support customized APP remote control
Signal preview function Support Audit/Preview signal before output to windows/video wall screens
Scene management Support Multiple scenes management/recall function
Support scenes cycle broadcast Support scenes cycle broadcast function
Multiple Interfaces Support multiple DVI,,VGA,AV inputss &multiple signal outputs
Rich Resolution Support 1080P,1080I,720P,480P &multiple resolution inputs
Standard Packing Double layer carton box pack
Weight 5-100kg
6kg-110kg


Detail Parameters:

Technical Specifications
Model series With CBD No CBD
Function description 4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
Input signal(optional) /DVI/VGA/AV/YPbPr
Input resolution 1024x768~1080p,commonly used resolutions
Output signal format DVI/VGA/AV/YPbPr/(DVI- converter)
Output resolution Up to 1920x1200/60HZ
System control software Special control software
Power Supply Redundant power supply 110-220VAC, 50/60Hz
Consumption 12W/channel
Working temperature -20°C——60°C
Working Humidity 5-95%
Case specification 4U/6U/10U/15U standard rackmount chassis
Serial Control Interface RS-232,9-pin female, Type-D
Baud Rate 115200
Pin configuration 2=TX,3=RX,5=GND
Ethernet control interface RJ-45 female, TCP/IP
Ethernet control speed Auto 10M or 100M,Full-duplex or half-duplex
Working time 365x7x24hrs
Technical specification of input/output connectors
VGA/RGB input Input: 15pin HD D-Sub, female
Sync mode: HV independent sync
Color Depth: 32bit/pixel
Resolution: 640*480/60HZ—1920*1200/60HZ
Input impedance :75Ω
Video input Input connector: BNC
Detecting: full-format auto detecting
Input impedance :75Ω
VGA or DVI output Resolution:1024x768/60HZ-1920x1200/60HZ
Color depth: 32bit/pixel
Output impedance:75Ω

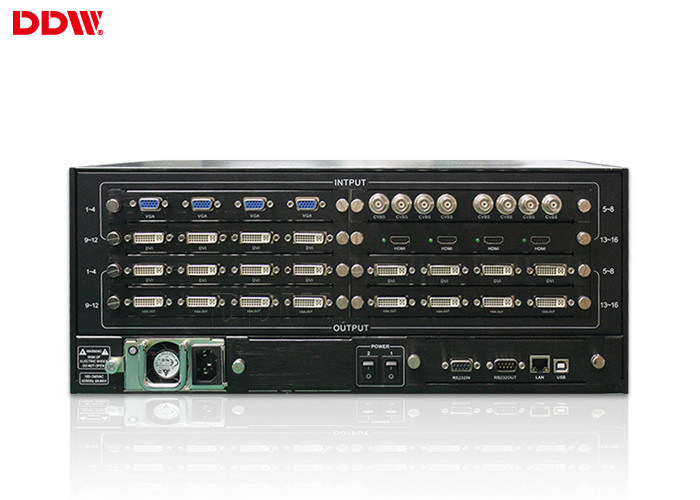

Physical properties of input/output connectors
Signals Connectors Type
Composite VIDEO input BNC female
VGA input 15 pin HD D-Sub female
VGA output 15 pin HD D-Sub female
DVI output 24+5 or 24+1 standard female
AUX RS-232 9-pin D-Sub female
Main RS-232 9-pin D-Sub female

Digital signage video wall display wall processor , multi screen processor APP remote control DDW-VPH1515 0Digital signage video wall display wall processor , multi screen processor APP remote control DDW-VPH1515 1
