Ultra narrow bezel screen LG video wall 55inch 3.5mm 700nits brightness video wall display monitors

Basic Information
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-DV550FHM-NV3
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Detail Information
Panel Size: 55inch Resolution: 1920x1080
Bezel Width: 3.5mm Color: 8Bit , 16M
Brightness: 700nits Surface: Anti-glare
Backlight: LED Control Method: RS232 Control
High Light:

video display walls

,

hd video wall


Product Description

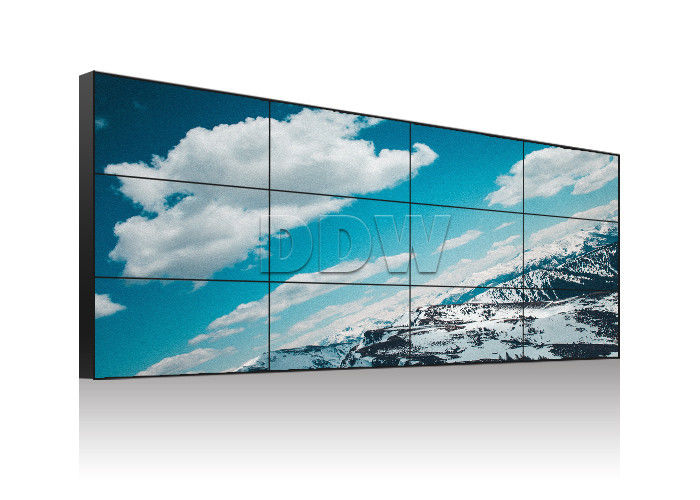

Ultra narrow bezel screen LG video wall 55inch 3.5mm 700nits brightness video wall display monitors

Ultra narrow bezel screen LG video wall 55inch 3.5mm 700nits brightness video wall display monitors 0



LG Video Wall Parameters

  • Original LG commercial grade lcd video wall display panel, 16:9 LG a-Si TFT-LCD;
  • 700nits brightness, MEGA DCR contrast;
  • FHD 3.5mm Ultra narrow bezel, high quality, practical, good vision effect;
  • Signal interface rich, RS232, , DVI, VGA, YPbPr, AV;
  • FHD video wall unit, high brightness, high contrast, high gamut;
  • Flexible structure design, easy installation, extensible, arbitrary combination;
  • Stable performance, suitable working for a long time;



LG Video Wall Features

  • Support a variety of signal ports;
  • Built-in splicing module, Support splice function;
  • Support Creating one window PIP across the screen, roaming service, scaling, PIP;
  • Support matrix joint control;
  • Unique DNX motion supplement image processing technology;
  • Dynamic image without motion trail;
  • Splicing image processing RS-232 RJ45 loop-circuit input/output;
  • Input by remote control with wire, mobile receiver head;



Specifications

Model No. DDW-DV550FHM-NV3
LCD Technology LG a-Si TFT-LCD
Active Screen Diagonal 55"
Total Bezel Width 3.5mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System WLED
Luminance(nits) 700cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Pixel Pitch(WxH) 0.63x0.63 mm
Active Display Area(WxH) 1209.6×680.4 mm
Panel Dimension(WxHxD) 1213.5x684.3x60.39mm
White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing
1
VGA 1
CVBS IN 1
CVBS OUT 1
RS232 IN 1
RS232 OUT 1
ISP IN 1
IR IN 1
CODING BUTTON 1
AC IN AC100-240V
Color System Support PAL/NTSC/SECAM
Control Type IR Remote &Software Control
Menu Language English/Chinese(Multiple Language can be customized)
Vertical/Horizontal Display Support
Combine Display Support combine any horizontal &vertical numbers of screens and show display
Support combine all screens together to show 1image
Solid Display Support each screen input with separate signal
PIP/Zoom/Roaming Support open one window for each screen, each window can be zoomed &roaming internal freely
Multiple Interfaces Support DVI,,VGA,AV &multiple signal inputs
Rich Resolution Support 1080P,1080I,720P,480P &multiple resolution inputs



Various video wall control board options

Ultra narrow bezel screen LG video wall 55inch 3.5mm 700nits brightness video wall display monitors 1

Ultra narrow bezel screen LG video wall 55inch 3.5mm 700nits brightness video wall display monitors 2Ultra narrow bezel screen LG video wall 55inch 3.5mm 700nits brightness video wall display monitors 3
