| Place of Origin: | Guangdong , China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-AD5001SNT |
| Minimum Order Quantity: | 1Set |
| Price: | negotiable |
| Packaging Details: | Carton and Full wood box packing |
| Delivery Time: | 3-7working days upon payment |
| Payment Terms: | T/T , Western Union , L/C , Alibaba Trade Assurance, D/P, D/A |
| Supply Ability: | 1000 set per month |
| Diagonal: | 50 Inch | Aspect Ratio: | 16:9 |
|---|---|---|---|
| Physical Resolution: | 1920x1080 | Luminance(nits): | 500cd/m2 |
| Panel Brand: | Samsung DID | Backlit Type: | WLED |
| OSD Language: | Multiple Languages | Viewing Angle: | H178º/ V178º |
| Control Method: | TCP/IP , APP , WIFI , Software Control , IR | ||
| High Light: | digital display signs outdoor,freestanding digital signage |
||

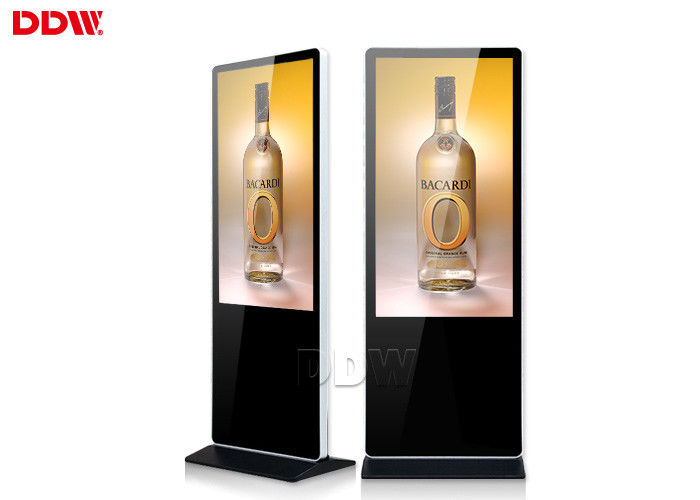

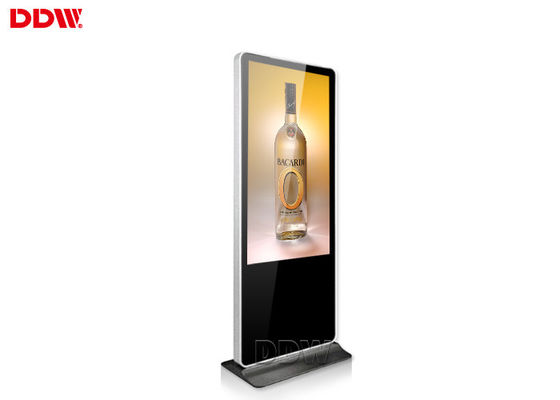

50 inch fllor stand interactive 1920x1080 indoor touch screen kiosk display FHD DDW-AD5001SNT
Features Highlights
50 Inch Touch Screen Kiosk Monitor with 1920x1080 Resolution
1 . Video formats MP4(AVI:DIVX/XVID) , MPG2(DVD:VOB/MPG2) , MPEG1 (VCD DAT/MPG1)
2 . Audio formats MP3
3 . Advanced IR touch technology , support single-touch technology
4 . interactive touch for widely using
5 . Adopt memory card to update ad files
6 . SD card or USB port at one player;
Description
1 . Outer shell is made by extra quality metal material, Color for Outer Shell Shinning Black.
2 . With 3mm thickness tempered glass as protection layer against the sureface of LCD screen.
3 . Full New LG or Samsung ( Made in Korea) A Grade Standard LCD Panel.
4 . Support SD card or USB port at one player; it is optional for VGA Port, S-video port and port.
5 . Safely locking system function to avoid flash memory card and advertising playing contents being taken away , also can be protected by password.
6 . With USB update feature; support functions between the card and card copying files (such as CF card to SD card , or SD to CF card etc.); support U-copy , conveniently and quickly updating target content , more details please visit user manual.
7 . Playing advertising program automatically and circular; support media format JPEG (JPG) , MP3 , AVI , MPEG1 , MPEG2 , MPEG4 , VOB and DIVX (5.0/6.0).
8 . Playlists support functions , can set different folders , copy all target files to those different folders , system would default to play your target file one by one.
9 . Capable of setting rolling caption on the screen, playing rolling caption in the advertisement program.
10 . Build-in clock and calendar function in the system of player.
11 . Support 5 groups of auto power-on/off timer, able to set those 5 groups of time one day and 7 days in one week.
12 . Support shockproof and dustproof function.
Specifications
| Technical Parameter for LCD Panel | Panel Size | 50 inch real color LCD screen |
| Aspect Ratio | 16:9 | |
| Active Area | 1210mm(H) x 682mm(V) | |
| Max. Resolution | 1920x 1080 | |
| Dot Pitch | 0.63mm(H) x 0.63mm(W) | |
| Number of Color | 16.7M | |
| Brightness | 500cd/m2 | |
| Contrast Ratio | 1500:1 | |
| Responsive Time | 8ms | |
| Panel Life | above 50000 hours | |
| Storage Medium | Flash memory card | 2gb to 36gb for the capacity |
| Support Ad files | Video formats | MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1) |
| Audio formats | MP3 | |
| Photo formats | JPG | |
| OSD Language | English , Chinese , French , German , Italian , Spanish , Arabic | |
| Audio output | stereo L/R , 5Wx2 , 8Ω | |
| Power supply | AC 110V - 240V , 50/60HZ | |
| Storage Temperature | -7 to 65 Celsius degree | |
| Normal Working Temperature | -5 to 65 Celsius degree | |
Infrared touchscreen Panel Parameters
| Touch Max Resolution | 4096×4096 |
| Transparency | > 90%, Up to 100% |
| Scanning Speed | >50Scans/S |
| Response Speed | <12ms |
| Touch Type | Horizontal Multi Dot Touch Screen (Vertical way is optional) |
| Touch precision | 0.625mm |
| Minimum Touch object | ≥5mm |
| Touch Intensity | Over 60,000,000 Single Point Touch |
| Operation System | DOS, WINDOWS9X/ME/2000/XP/2003/VISTA, LINUX |
| perating Voltage | DC 5V ±5% |
| Power Supply | Keyboard Serial Interface |
| Power | <1W (Current<200mA) |
| Communication | RS-232 Interface Port, USB Port |
| Vandal-Proof | Steel Ball (Diameter 63.5mm 1040g Weight) drop from 1040mm, No break |
| Temperature Operating | -41°C ~70°C Temperature Storage: -50°C ~85°C |
| Altitude | 3000m |
| Noise | None |
| Life Time | >10 Year |
Applications
| Business Organizations | Supermarket , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , star-rated hotels , restaurants , travel agencies , pharmacy. |
| Financial Organizations |
Banks , negotiable securities , funds , insurance companies , pawnshops; Non-profit Organizations Telecommunications , post offices , hospital , schools; |
| Public Places | subway , airports , stations, gas stations , toll stations , bookstores , parks , exhibition halls , stadiums , museums , convention centers , ticket agencies , HR market , lottery centers; Real Estate Property Apartments , villas , offices , commercial buildings , model rooms , property brokers; |
| Entertainments | Movie theaters , fitness halls , country clubs , clubs , massage rooms , bars , cafes , Internet bars , beauty shops , golf course |
