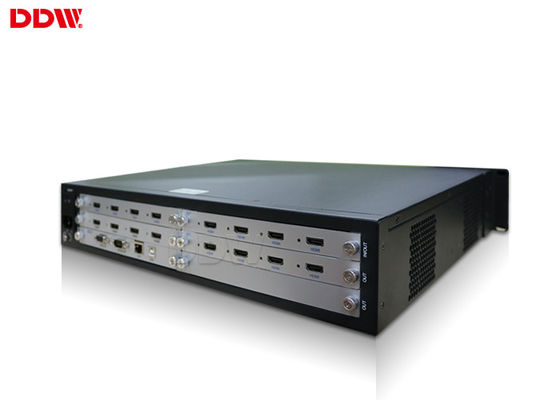

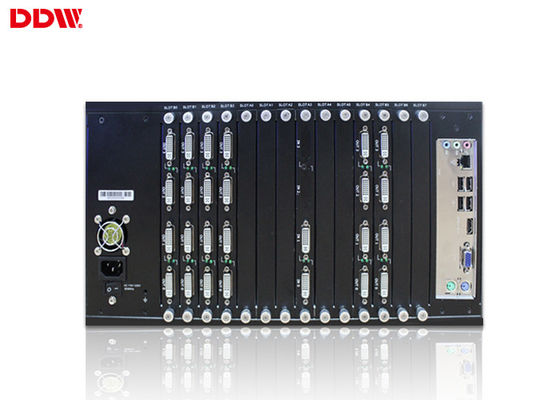

High resolution display video wall controller with software1080P Multi signal sources DDW-VPH0506

China High resolution display video wall controller with software1080P Multi signal sources DDW-VPH0506 supplier
High resolution display video wall controller with software1080P Multi signal sources DDW-VPH0506 supplier High resolution display video wall controller with software1080P Multi signal sources DDW-VPH0506 supplier

Large Image :  High resolution display video wall controller with software1080P Multi signal sources DDW-VPH0506

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 ,CE , RoHS , FCC
Model Number: DDW-VPH0506

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Double layer carton pack
Delivery Time: 3working days upon payment
Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Max PIP Per Screen:: 1,4,16,customization IPad/iPhone Remote Control: Support Customized APP Remote Control
Maximum Input Numbers:: 128 Control Method: RS232,IP
Maximum Output Numbers:: 128 Input Output Signal Sources:: HDMI,DVI,VGA,AV,YPBPR,IP
Standard Packing: Double Layer Carton Box Pack Weight: 5-100kg

High resolution display video wall controller with software1080P Multi signal sources DDW-VPH0506



With video wall control software

Support multiple and mixed HDMI/DVI/VGA/AV/YPBPR signal sources,RS232 IP control
Each channel support 1920x1080 input and output



video wall controller has following key features:
1. Support open-window effects processing
2. Support large-screen image freeze
3. Support 7
×24 uninterrupted and stable working
4. Flexibility to increase the input/output board
9. Support partial input and output cards with mixed interpolation
5. Input/output card supports hot-swappable, plug-and-play functionality
6. Output resolution up to 1920
×1200
7. Rich BNC, VGA, DVI, HDMI, SDI and RJ45 input interface, support for multiple resolutions up to 1920×1200,control via RS-232 or Ethernet
8. Support memory card or network transmission ultra-high-definition pictures, peer-to-peer ultra-high-definition mosaic wall background image
9. Redundant power supply design, thermostatically controlled fan
10. Chassis backplane + plug-in configuration, excellent performance for radiating, anti-dust chassis, equipped with replaceable air filter can be stable for a long time, even in harsh environments





Technical Specifications
Model series With CBD No CBD
Function description 4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
Input signal(optional) HDMI/DVI/VGA/AV/YPbPr
Input resolution 1024x768~1080p,commonly used resolutions
Output signal format DVI/VGA/AV/YPbPr/HDMI(DVI-HDMI converter)
Output resolution Up to 1920x1200/60HZ
System control software Special control software
Power Supply Redundant power supply 110-220VAC, 50/60Hz
Consumption 12W/channel
Working temperature -20°C——60°C
Working Humidity 5-95%
Case specification 4U/6U/10U/15U standard rackmount chassis
Serial Control Interface RS-232,9-pin female, Type-D
Baud Rate 115200
Pin configuration 2=TX,3=RX,5=GND
Ethernet control interface RJ-45 female, TCP/IP
Ethernet control speed Auto 10M or 100M,Full-duplex or half-duplex
Working time 365 x 7 x 24hrs
Technical specification of input/output connectors
VGA/RGB input Input: 15pin HD D-Sub, female
Sync mode: HV independent sync
Color Depth: 32bit/pixel
Resolution: 640 x 480/60HZ—1920 x1200/60HZ
Input impedance :75Ω
Video input Input connector: BNC
Detecting: full-format auto detecting
Input impedance :75Ω
VGA or DVI output Resolution:1024 x 768/60HZ-1920 x 1200/60HZ
Color depth: 32bit/pixel
Output impedance:75Ω
Physical properties of input/output connectors
Signals Connectors Type
Composite VIDEO input BNC female
VGA input 15 pin HD D-Sub female
VGA output 15 pin HD D-Sub female
DVI output 24+5 or 24+1 standard female
AUX RS-232 9-pin D-Sub female
Main RS-232 9-pin D-Sub female

High resolution display video wall controller with software1080P Multi signal sources DDW-VPH0506High resolution display video wall controller with software1080P Multi signal sources DDW-VPH0506
