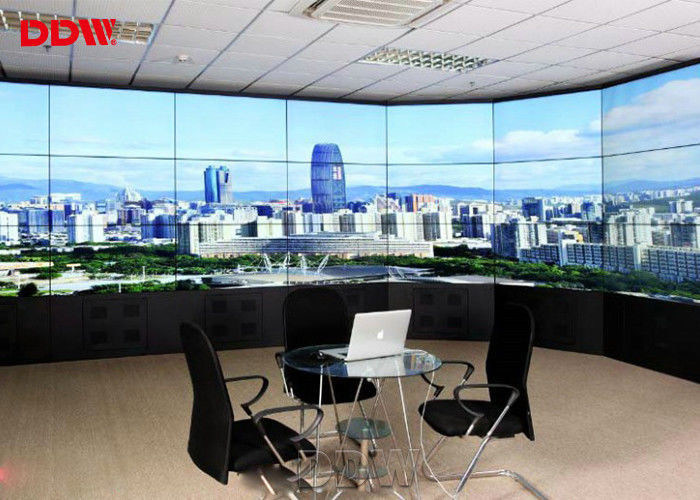

Information wall display curved video wall original samsung display MEGA DCR contrast

China Information wall display curved video wall original samsung display MEGA DCR contrast supplier
Information wall display curved video wall original samsung display MEGA DCR contrast supplier Information wall display curved video wall original samsung display MEGA DCR contrast supplier Information wall display curved video wall original samsung display MEGA DCR contrast supplier

Large Image :  Information wall display curved video wall original samsung display MEGA DCR contrast

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW550HN16

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Panel Size: 55inch Resolution: 1920x1080
Bezel Width: 1.7mm Color: 8Bit , 16M
Brightness: 500nits Contrast Ratio: MEGA DCR
Backlight: LED Viewing Angle: 178x178

Information wall display curved video wall original samsung display MEGA DCR contrast





About the installation screen first curved stitching calculation data , real-time measurement , coherent , forming a perfect arc between the liquid crystal splicing unit. In the display area is relatively small , with curved stitching create a relatively wider field of view , the relative increase in the visual display area , for customers to create a more comfortable viewing. Therefore , contrast , curved stitching large screen can bring a better perception of the effect.



Features

1, Original LG commercial grade lcd video wall display panel, 16:9 LG a-Si TFT-LCD

2, 500nits brightness , MEGA DCR contrast

3, FHD physical resolution 1920x1080

4, Only 1.7mm ultra narrow bezel, high quality, practical, good vision effect;

5, Signal interface rich, RS232, HDMI, DVI, VGA, YPbPr, AV;

6, HD video wall unit, high brightness, high contrast, high gamut;

7, Flexible structure design, easy installation, extensible, arbitrary combination;

8, Stable performance, suitable working for a long time;



Specifications

Panel Specifications
LCD Technology Samsung a-Si TFT-LCD
Active Screen Diagonal 55" (1168 mm)
Bezel Width Total: 1.7mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System WLED
Luminance(nits) 500cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Pixel Pitch(WxH) 0.63x0.63 mm
Active Display Area(WxH) 1209.6 × 680.4 mm
Panel Dimension(WxHxD) 1211.54x682.34x68.1mm
White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing
HDMI 1
VGA 1
CVBS IN 1
CVBS OUT 1
RS232 IN 1
RS232 OUT 1
ISP IN 1
IR IN 1
CODING BUTTON 1
AC IN AC100-240V
Color System Support PAL/NTSC/SECAM
Control Type IR Remote &Software Control
Menu Language English/Chinese(Multiple Language can be customized)
Vertical/Horizontal Display Support
Combine Display Support combine any horizontal &vertical numbers of screens and show display
Support combine all screens together to show 1image
Solid Display Support each screen input with separate signal
PIP/Zoom/Roaming Support open one window for each screen, each window can be zoomed &roaming internal freely
Multiple Interfaces Support DVI,HDMI,VGA,AV &multiple signal inputs
Rich Resolution Support 1080P,1080I,720P,480P &multiple resolution inputs





Generally for some group company which has large number of viewer and has high requirement for view , if the display area is allowed and enough , we can use curved LCD video wall display.

Information wall display curved video wall original samsung display MEGA DCR contrastInformation wall display curved video wall original samsung display MEGA DCR contrast
