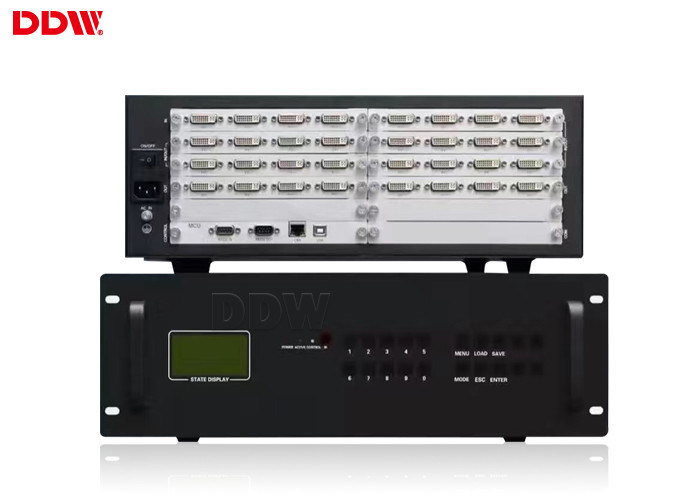

Vertical Display ip video wall controller Support large - screen image freeze DDW-VPH1012

China Vertical Display ip video wall controller Support large - screen image freeze DDW-VPH1012 supplier
Vertical Display ip video wall controller Support large - screen image freeze DDW-VPH1012 supplier Vertical Display ip video wall controller Support large - screen image freeze DDW-VPH1012 supplier

Large Image :  Vertical Display ip video wall controller Support large - screen image freeze DDW-VPH1012

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 ,CE , RoHS , FCC
Model Number: DDW-VPH1012

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Double layer carton pack
Delivery Time: 3working days upon payment
Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Video Wall Controller Interfaces Type:: Pluggable Video Wall Controller Color Quality: 32bit
Frame Material:: Aluminum Brushed Maximum Output Numbers: 128
Control Method: RS232,IP Rich Resolution: Support 1080P,1080I,720P,480P &multiple Resolution Inputs
Standard Packing: Double Layer Carton Box Pack Weight: 5-100kg

Vertical Display ip video wall controller Support large - screen image freeze DDW-VPH1012


It has following key features:
1 . Support large-screen image freeze
2 . Support open-window effects processing
3 . Flexibility to increase the input/output board
4 . Real time image display, no dropped frames
5 . Full hardware configuration without operating system
6 . Support partial input and output cards with mixed interpolation
7 . Redundant power supply design, thermostatically controlled fan
8 . Input/output card supports hot-swappable, plug-and-play functionality
9 . Support display at arbitrary position, at any size and any superimposed
10 . High-speed bus parallel processing technology, high-bandwidth uncompressed processing
11 . Support memory card or network transmission ultra-high-definition pictures, peer-to-peer ultra-high-definition mosaic wall background image
12 . Chassis backplane + plug-in configuration, excellent performance for radiating, anti-dust chassis, equipped with replaceable air filter can be stable for a long time, even in harsh environments

DDW Lcd video wall controller is one of professional modularized and hardware Lcd video wall processor which supports HDMI,DVI,VGA,AV,YPBPR, each channel support 1920x1200 resolution signal inputs and outputs,RS232 and IP control method.

Parameters:
Technical Specifications
Model series
With CBD
No CBD
Function description
4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image
16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
Input signal(optional)
HDMI/DVI/VGA/AV/YPbPr
Input resolution
1024x768~1080p,commonly used resolutions
Output signal format
DVI/VGA/AV/YPbPr/HDMI(DVI-HDMI converter)
Output resolution
Up to 1920x1200/60HZ
System control software
Special control software
Power Supply
Redundant power supply 110-220VAC, 50/60Hz
Consumption
12W/channel
Working temperature
-20°C——60°C
Working Humidity
5-95%
Case specification
4U/6U/10U/15U standard rackmount chassis
Serial Control Interface
RS-232,9-pin female, Type-D
Baud Rate
115200
Pin configuration
2=TX,3=RX,5=GND
Ethernet control interface
RJ-45 female, TCP/IP
Ethernet control speed
Auto 10M or 100M,Full-duplex or half-duplex
Working time
365 24hrs
Technical specification of input/output connectors
VGA/RGB input
Input: 15pin HD D-Sub, female
Sync mode: HV independent sync
Color Depth: 32bit/pixel
Resolution: 640 480/60HZ—1920 x1200/60HZ
Input impedance :75Ω
Video input
Input connector: BNC
Detecting: full-format auto detecting
Input impedance :75Ω
VGA or DVI output
Resolution:1024 768/60HZ-1920 1200/60HZ
Color depth: 32bit/pixel
Output impedance:75Ω
Physical properties of input/output connectors
Signals
Connectors
Type
Composite VIDEO input
BNC
female
VGA input
15 pin HD D-Sub
female
VGA output
15 pin HD D-Sub
female
DVI output
24+5 or 24+1 standard
female
AUX RS-232
9-pin D-Sub
female
Main RS-232
9-pin D-Sub
female

Vertical Display ip video wall controller Support large - screen image freeze DDW-VPH1012Vertical Display ip video wall controller Support large - screen image freeze DDW-VPH1012
