Solid Display:: | Support Each Screen Input With Separate Signal | Support Scenes Cycle Broadcast:: | 144Support Scenes Cycle Broadcast Function |
---|---|---|---|
Maximum Input Numbers:: | 144 | Maximum Output Numbers:: | 144 |
Frame Material:: | Aluminum Brushed | Rich Resolution: | Support 1080P,1080I,720P,480P &multiple Resolution Inputs |
Weight:: | 5-100kg | Standard Packing:: | Double Layer Carton Box Pack |
High Light: | lcd video wall controller,video wall processor |

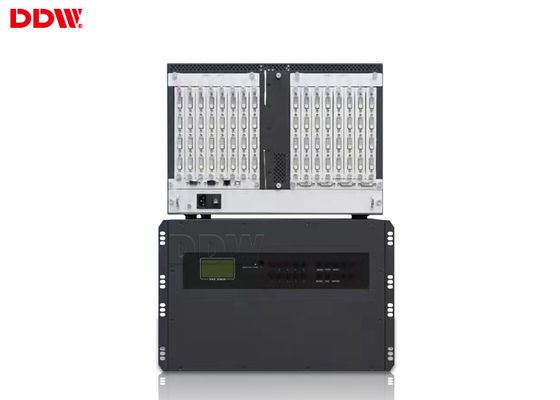

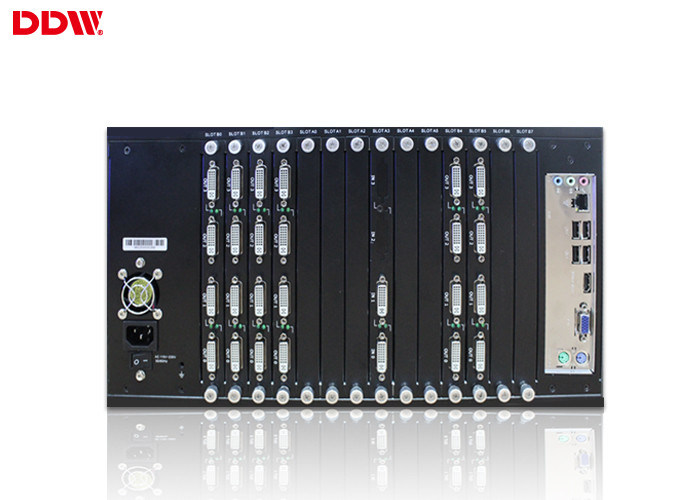

4x4 video wall controller amazon Support Customized APP Remote 5 - 100kg DDW-VPH0404
Features:
1, 2 split ~ 4 split display function (one single screen)
One single screen up to 4 signal source simultaneously input , it can be layout in any pattern and superimposed images.
2, Video Wall configuration support
iMAX-5000 series , which has built-in the high resolution of digital image processor , supports both of the matrix and mosaic video wall configuration.
3, Seamless Switching Processor Inside
No joints , no black screen , smooth video switching processor inside.
4, PIP/POP Function
Support picture in picture (PIP) picture outside picture (POP) functions .
Single screen can be superimposed 4 contents on the screen. You can also size and position or cross the border at any other screen.
5, Partial Zooming Function
Support in a single screen zoom function. You can zoom view an image from any of the signal source in a particular area.
6, User friendly graphical user interface
Just use the mouse device , click on the video content which you want to play , then drag and drop the displayed size and position.
7, Multi-Input format switching support
VGA,DVI,CVBS, and SDI such as multi-input format support.
8, Looping Playback
It can be stored more than 100 sets of display mode.
Support looping playback and control switching via RS232 network or TCP/IP mode.
9, Compact and expandable inputs and outputs
40 input channels , can be extended up to 18 or 36 output channels , you can realize a large-scale multi-display system in a compact one-unit housing.
10, Power-saving design
Build-in power-saving graphics board and parts reduction effect by one unit structure design.
11, Easy Replacement
Rear detachable input-output board introduction and expansion can be easily.
User can replace the input and output board with a single unit without removing the entire chassis from the rack.
Video and Image Processing :
1. Any Rectangular Video Wall Configuration can be supported. Screen order can be configured
2. Inputs/windows can be resized, layered and positioned across screen boundaries
3. Inputs/windows can be displayed in correct aspect ratio,stretched to fit,in full screen mode,or zoomed in to emphasize details
4. Input sources can be cropped to remove the edge pixels and lines
5. Dual-Link DVI Input (capture) cards support 4K ×4K resolution or a customizable resolution. Any source can be captured
Some of the Video Wall Controller Parameters:
Vertical/Horizontal Display | Support |
Combine Display | Support combine any horizontal &vertical numbers of screens and show display |
Support combine all screens together to show 1image | |
Solid Display | Support each screen input with separate signal |
PIP/Zoom/Roaming | Support open one window for each screen, each window can be zoomed &roaming internal freely |
iPad/iPhone remote control | Support customized APP remote control |
Signal preview function | Support Audit/Preview signal before output to windows/video wall screens |
Scene management | Support Multiple scenes management/recall function |
Support scenes cycle broadcast | Support scenes cycle broadcast function |
Multiple Interfaces | Support multiple DVI,,VGA,AV inputss &multiple signal outputs |
Rich Resolution | Support 1080P,1080I,720P,480P &multiple resolution inputs |
Standard Packing | Double layer carton box pack |
Weight | 5-100kg |
6kg-110kg |
Detail Parameters:
Technical Specifications | ||
Model series | With CBD | No CBD |
Function description | 4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image | 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays |
Input signal(optional) | /DVI/VGA/AV/YPbPr | |
Input resolution | 1024x768~1080p,commonly used resolutions | |
Output signal format | DVI/VGA/AV/YPbPr/(DVI- converter) | |
Output resolution | Up to 1920x1200/60HZ | |
System control software | Special control software | |
Power Supply | Redundant power supply 110-220VAC, 50/60Hz | |
Consumption | 12W/channel | |
Working temperature | -20°C——60°C | |
Working Humidity | 5-95% | |
Case specification | 4U/6U/10U/15U standard rackmount chassis | |
Serial Control Interface | RS-232,9-pin female, Type-D | |
Baud Rate | 115200 | |
Pin configuration | 2=TX,3=RX,5=GND | |
Ethernet control interface | RJ-45 female, TCP/IP | |
Ethernet control speed | Auto 10M or 100M,Full-duplex or half-duplex | |
Working time | 365x7x24hrs | |
Technical specification of input/output connectors | ||
VGA/RGB input | Input: 15pin HD D-Sub, female | |
Sync mode: HV independent sync | ||
Color Depth: 32bit/pixel | ||
Resolution: 640*480/60HZ—1920*1200/60HZ | ||
Input impedance :75Ω | ||
Video input | Input connector: BNC | |
Detecting: full-format auto detecting | ||
Input impedance :75Ω | ||
VGA or DVI output | Resolution:1024x768/60HZ-1920x1200/60HZ | |
Color depth: 32bit/pixel | ||
Output impedance:75Ω | ||
Physical properties of input/output connectors | ||
Signals | Connectors | Type |
Composite VIDEO input | BNC | female |
VGA input | 15 pin HD D-Sub | female |
VGA output | 15 pin HD D-Sub | female |
DVI output | 24+5 or 24+1 standard | female |
AUX RS-232 | 9-pin D-Sub | female |
Main RS-232 | 9-pin D-Sub | female |
