Industrial monitoring Crestron Video Wall Processor,multi display Processor Support 7x24 hours DDW-VPH1212

China Industrial monitoring Crestron Video Wall Processor,multi display Processor Support 7x24 hours DDW-VPH1212 supplier
Industrial monitoring Crestron Video Wall Processor,multi display Processor Support 7x24 hours DDW-VPH1212 supplier Industrial monitoring Crestron Video Wall Processor,multi display Processor Support 7x24 hours DDW-VPH1212 supplier

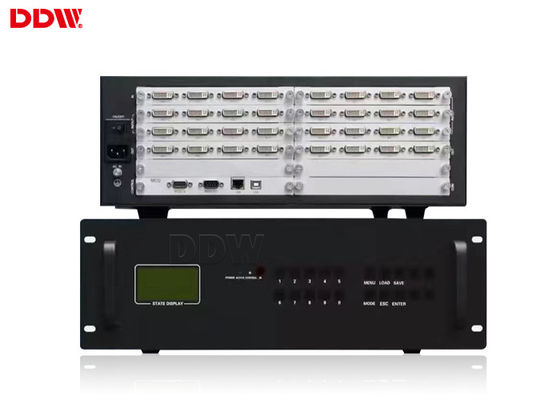

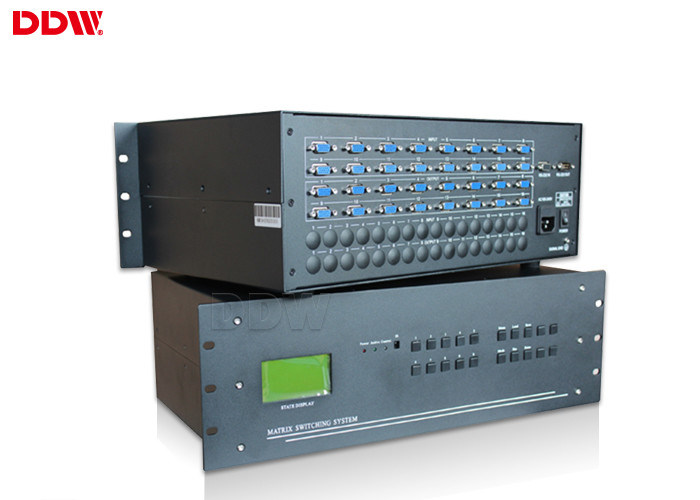

Large Image :  Industrial monitoring Crestron Video Wall Processor,multi display Processor Support 7x24 hours DDW-VPH1212

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 ,CE , RoHS , FCC
Model Number: DDW-VPH1212

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Double layer carton pack
Delivery Time: 3working days upon payment
Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Max PIP Per Screen:: 1,4,16,customization IPad/iPhone Remote Control: Support Customized APP Remote Control
Supply Voltage:: 100-200V Control Method: RS232,IP
Dissipation Power:: 50W Input Output Signal Sources:: HDMI,DVI,VGA,AV,YPBPR,IP
Standard Packing: Double Layer Carton Box Pack Weight: 5-100kg

Industrial monitoring Crestron Video Wall Processor,multi display Processor Support 7x24 hours DDW-VPH1212



key features:

1. Ultra-narrow border design of the current width of only 3.5mm double edge

2. Industrial grade professional DID LCD screens, designed for industrial monitoring and multimedia information display

3. Various display modes such as Full screen display, Display separately on each screen, Free combining display, Picture roaming, Picture overlying, Picture stretch

4. Support 7x24 hours, 365 days of continuous power-on, high reliability and stability, product life up to 60,000 hours

5. All screens can display the same or different signal sources on a single screen



Video and Image Processing :

1. Any Rectangular Video Wall Configuration can be supported. Screen order can be configured
2. Inputs/windows can be resized, layered and positioned across screen boundaries
3. Inputs/windows can be displayed in correct aspect ratio,stretched to fit,in full screen mode,or zoomed in to emphasize details
4. Input sources can be cropped to remove the edge pixels and lines
5. Dual-Link DVI Input (capture) cards support 4K ×4K resolution or a customizable resolution. Any source can be captured



Technical Specifications
Model series With CBD No CBD
Function description 4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
Input signal(optional) HDMI/DVI/VGA/AV/YPbPr
Input resolution 1024x768~1080p,commonly used resolutions
Output signal format DVI/VGA/AV/YPbPr/HDMI(DVI-HDMI converter)
Output resolution Up to 1920x1200/60HZ
System control software Special control software
Power Supply Redundant power supply 110-220VAC, 50/60Hz
Consumption 12W/channel
Working temperature -20°C——60°C
Working Humidity 5-95%
Case specification 4U/6U/10U/15U standard rackmount chassis
Serial Control Interface RS-232,9-pin female, Type-D
Baud Rate 115200
Pin configuration 2=TX,3=RX,5=GND
Ethernet control interface RJ-45 female, TCP/IP
Ethernet control speed Auto 10M or 100M,Full-duplex or half-duplex
Working time 365 x 7 x 24hrs
Technical specification of input/output connectors
VGA/RGB input Input: 15pin HD D-Sub, female
Sync mode: HV independent sync
Color Depth: 32bit/pixel
Resolution: 640 x 480/60HZ—1920 x1200/60HZ
Input impedance :75Ω
Video input Input connector: BNC
Detecting: full-format auto detecting
Input impedance :75Ω
VGA or DVI output Resolution:1024 x 768/60HZ-1920 x 1200/60HZ
Color depth: 32bit/pixel
Output impedance:75Ω
Physical properties of input/output connectors
Signals Connectors Type
Composite VIDEO input BNC female
VGA input 15 pin HD D-Sub female
VGA output 15 pin HD D-Sub female
DVI output 24+5 or 24+1 standard female
AUX RS-232 9-pin D-Sub female
Main RS-232 9-pin D-Sub female

Industrial monitoring Crestron Video Wall Processor,multi display Processor Support 7x24 hours DDW-VPH1212Industrial monitoring Crestron Video Wall Processor,multi display Processor Support 7x24 hours DDW-VPH1212
