Multimedia display datapath x4 display wall controller Support large - screen image freeze DDW-VPH1212

Multimedia display datapath x4 display wall controller Support large - screen image freeze DDW-VPH1212

    • Multimedia display datapath x4 display wall controller Support large - screen image freeze DDW-VPH1212
    • Multimedia display datapath x4 display wall controller Support large - screen image freeze DDW-VPH1212
  • Multimedia display datapath x4 display wall controller Support large - screen image freeze DDW-VPH1212

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 ,CE , RoHS , FCC
    Model Number: DDW-VPH1212

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiable
    Packaging Details: Double layer carton pack
    Delivery Time: 3working days upon payment
    Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
    Supply Ability: 1000pcs/month
    Contact Now
    Detailed Product Description
    Solid Display: Support Each Screen Input With Separate Signal Frame Material:: Aluminum Brushed
    Video Wall Controller Color Quality:: 32bit Supply Voltage:: 100-200V
    Operating Temperature:: 30°c Dissipation Power:: 50W
    Standard Packing: Double Layer Carton Box Pack Weight: 5-100kg
    High Light:

    video display processor

    ,

    videowall processor

    Multimedia display datapath x4 display wall controller Support large - screen image freeze DDW-VPH1212​


    It has following key features:
    1. Real time image display, no dropped frames
    2. Flexibility to increase the input/output board
    3. Support partial input and output cards with mixed interpolation
    4. Input/output card supports hot-swappable, plug-and-play functionality
    5. Support memory card or network transmission ultra-high-definition pictures, peer-to-peer ultra-high-definition mosaic wall background image
    6. Support display at arbitrary position, at any size and any superimposed
    7. Support open-window effects processing
    8. Support large-screen image freeze
    9. Full hardware configuration without operating system
    10. High-speed bus parallel processing technology, high-bandwidth uncompressed processing

    11. Support for DIV,,VGA,RJ45,3G-SDI,Video(CVBS) multi-signal input formats

    12. Support DIV and 3G-SDI signal output

    13. Input and output resolution maximum support 1920×1080,can be backward compatible with 1080P and 720P formats

    14. Video signal 4 split screen display, mult-port video signal can be displayed simultaneously



    Video and Image Processing :

    1. Any Rectangular Video Wall Configuration can be supported. Screen order can be configured
    2. Inputs/windows can be resized, layered and positioned across screen boundaries
    3. Inputs/windows can be displayed in correct aspect ratio,stretched to fit,in full screen mode,or zoomed in to emphasize details
    4. Input sources can be cropped to remove the edge pixels and lines
    5. Dual-Link DVI Input (capture) cards support 4K ×4K resolution or a customizable resolution. Any source can be captured


    Detail Parameters:


    Technical Specifications
    Model series With CBD No CBD
    Function description 4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
    Input signal(optional) /DVI/VGA/AV/YPbPr
    Input resolution 1024x768~1080p,commonly used resolutions
    Output signal format DVI/VGA/AV/YPbPr/(DVI- converter)
    Output resolution Up to 1920x1200/60HZ
    System control software Special control software
    Power Supply Redundant power supply 110-220VAC, 50/60Hz
    Consumption 12W/channel
    Working temperature -20°C——60°C
    Working Humidity 5-95%
    Case specification 4U/6U/10U/15U standard rackmount chassis
    Serial Control Interface RS-232,9-pin female, Type-D
    Baud Rate 115200
    Pin configuration 2=TX,3=RX,5=GND
    Ethernet control interface RJ-45 female, TCP/IP
    Ethernet control speed Auto 10M or 100M,Full-duplex or half-duplex
    Working time 365x7x24hrs
    Technical specification of input/output connectors
    VGA/RGB input Input: 15pin HD D-Sub, female
    Sync mode: HV independent sync
    Color Depth: 32bit/pixel
    Resolution: 640*480/60HZ—1920*1200/60HZ
    Input impedance :75Ω
    Video input Input connector: BNC
    Detecting: full-format auto detecting
    Input impedance :75Ω
    VGA or DVI output Resolution:1024x768/60HZ-1920x1200/60HZ
    Color depth: 32bit/pixel
    Output impedance:75Ω
    Physical properties of input/output connectors
    Signals Connectors Type
    Composite VIDEO input BNC female
    VGA input 15 pin HD D-Sub female
    VGA output 15 pin HD D-Sub female
    DVI output 24+5 or 24+1 standard female
    AUX RS-232 9-pin D-Sub female
    Main RS-232 9-pin D-Sub female

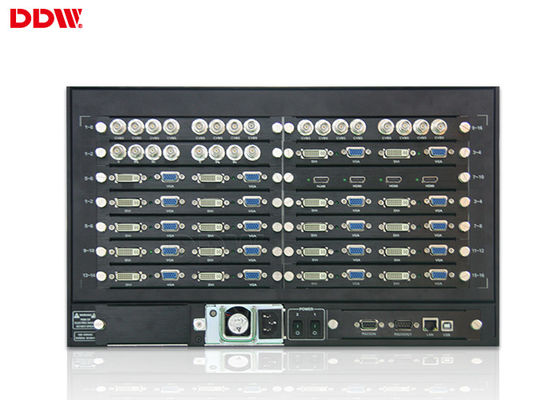

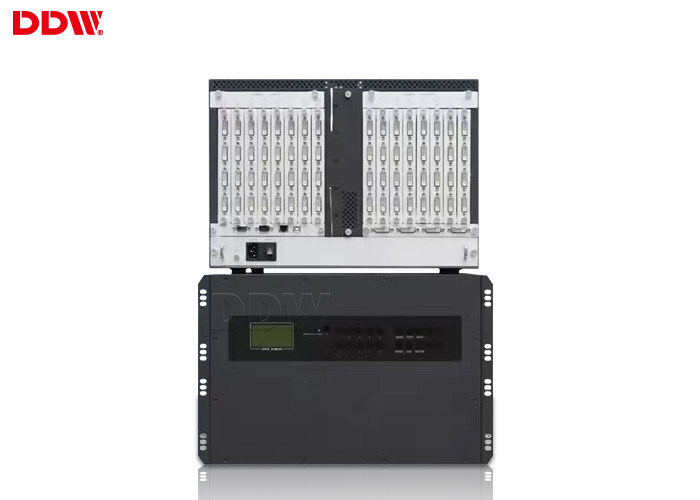

    Multimedia display datapath x4 display wall controller Support large - screen image freeze DDW-VPH1212 0Multimedia display datapath x4 display wall controller Support large - screen image freeze DDW-VPH1212 1
