Place of Origin: | Guangdong , China (Mainland) |
---|---|
Brand Name: | DDW |
Certification: | ISO9001 , CE , RoHS , FCC |
Model Number: | DDW-LW460HN12 |
Minimum Order Quantity: | 2pcs |
Price: | Negotiable |
Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
Delivery Time: | 3 working days upon payment |
Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
Supply Ability: | 3 , 000pcs per month |
Panel Size: | 46inch | Resolution: | 1920x1080 |
---|---|---|---|
Bezel Width: | 3.5mm | Power Consumption: | 230W |
Brightness: | 700nits | Application Condition: | Indoor And Semi-outdoor |
Backlight: | LED | Contrast Ratio: | MEGA DCR |
High Light: | video display walls,hd video wall |

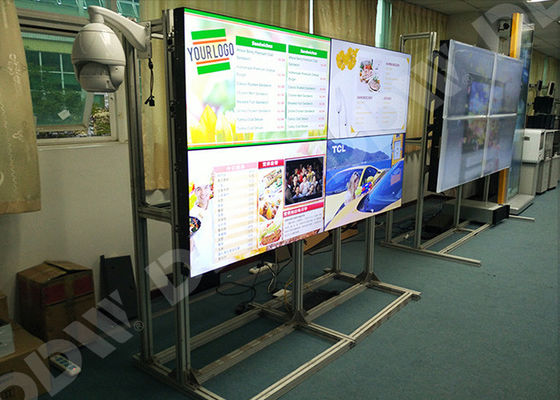

Advertising display LG video wall 46 inch 3.5mm seamless bezel led backlight
Parameters
1, Original LG commercial grade lcd video wall display panel, 16:9 LG a-Si TFT-LCD
2, 700its brightness , MEGA DCR contrast
3, FHD physical resolution 1920x1080
4, Only 3.5mm Ultra narrow bezel , high quality , practical , good vision effect
5, Signal interface rich , RS232 , , DVI , VGA , Y Pb Pr , AV
6, FHD video wall unit , high brightness , high contrast , high gamut
7, Flexible structure design , easy installation , extensible , arbitrary combination
8, Stable performance , suitable working for a long time
Key features
Support a variety of signal ports
Built-in splicing module , Support splice function
Support Creating one window PIP across the screen , roaming service , scaling , PIP
Support matrix joint control
Unique DNX motion supplement image processing technology
Dynamic image without motion trail
Splicing image processing RS-232 RJ45 loop-circuit input/output
Input by remote control with wire , mobile receiver head
Specifications
Panel Specifications | |
LCD Technology | LG a-Si TFT-LCD |
Active Screen Diagonal | 46" (1168 mm) |
Bezel Width | Total: 3.5mm |
Aspect Ratio | 16:9 |
Physical Resolution | 1920x1080 |
Backight System | WLED |
Luminance(nits) | 700cd/sqm |
Contrast | MEGA DCR |
Viewing Angle | H 178°|V 178° |
Pixel Pitch(WxH) | 0.5302x0.5302mm |
Active Display Area(WxH) | 1021.98x576.57x66.9mm |
Panel Dimension(WxHxD) | 1018.08×572.67mm |
White Point | 10,000 K |
Display Colors | 8Bit,16.7M |
Refresh Rate | 60Hz |
Response Time | <=6ms |
Life(hrs) | >60,000(hrs) |
MTBF | > 100,000 h |
Surface | Anti-glare |
Standby Power Consumption | <3W |
Maximum Power Consumption | lower than 250W |
Power Supply | AC100~240V 50/60 HZ |
Cooling | Low noise fans |
Heat Dissipation | 819 BTU/h (max) |
Working Time Capacity | 7x24x365hours |
Application Area | Indoor/Semi Outdoor |
Working Temperature | 0°C~50°C |
Working Humidity | 0.85 |
Storage Temperature | -20-60°C | -4-140°F |
Storage Humidity | 85% non-condensing |
1 | |
VGA | 1 |
CVBS IN | 1 |
CVBS OUT | 1 |
RS232 IN | 1 |
RS232 OUT | 1 |
ISP IN | 1 |
IR IN | 1 |
CODING BUTTON | 1 |
AC IN | AC100-240V |
Color System Support | PAL/NTSC/SECAM |
Control Type | IR Remote &Software Control |
Menu Language | English/Chinese(Multiple Language can be customized) |
Vertical/Horizontal Display | Support |
Combine Display | Support combine any horizontal &vertical numbers of screens and show display |
Support combine all screens together to show 1image | |
Solid Display | Support each screen input with separate signal |
PIP/Zoom/Roaming | Support open one window for each screen, each window can be zoomed &roaming internal freely |
Multiple Interfaces | Support DVI,,VGA,AV &multiple signal inputs |
Rich Resolution | Support 1080P,1080I,720P,480P &multiple resolution inputs |
