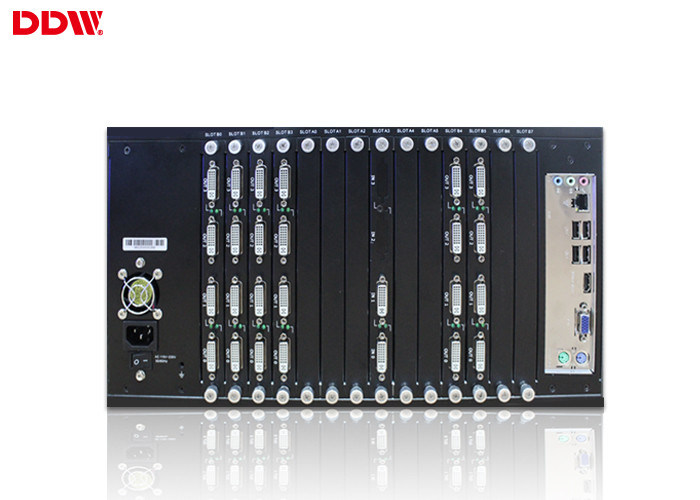

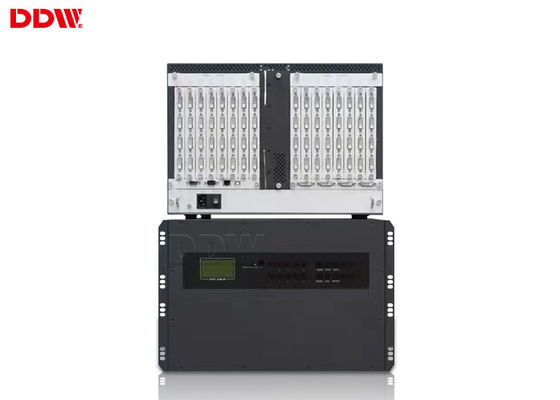

26 input 16 output video wall scaler , 4k video wall controller 1920 x 1080 output DDW-VPH2616

26 input 16 output video wall scaler , 4k video wall controller 1920 x 1080 output DDW-VPH2616

    • 26  input 16  output video wall scaler , 4k video wall controller 1920 x 1080 output DDW-VPH2616
    • 26  input 16  output video wall scaler , 4k video wall controller 1920 x 1080 output DDW-VPH2616
  • 26  input 16  output video wall scaler , 4k video wall controller 1920 x 1080 output DDW-VPH2616

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 ,CE , RoHS , FCC
    Model Number: DDW-VPH2616

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiable
    Packaging Details: Double layer carton pack
    Delivery Time: 3working days upon payment
    Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
    Supply Ability: 1000pcs/month
    Contact Now
    Detailed Product Description
    Solid Display: Support Each Screen Input With Separate Signal IPad/iPhone Remote Control: Support Customized APP Remote Control
    Video Wall Controller Color Quality:: 32bit Supply Voltage:: 100-200V
    Operating Temperature:: 30°c Dissipation Power:: 50W
    Standard Packing: Double Layer Carton Box Pack Weight: 5-100kg
    High Light:

    video display processor

    ,

    multi display processor

    26 input 16 output video wall scaler , 4k video wall controller 1920 x 1080 output DDW-VPH2616



    26 input 16 output video wall scaler support UHD 4K input FHD 1920x1080 output
    It has following key features:
    1. Support memory card or network transmission ultra-high-definition pictures, peer-to-peer ultra-high-definition mosaic wall background image
    2. Support display at arbitrary position, at any size and any superimposed
    3. Support open-window effects processing
    4. Support large-screen image freeze
    5. Full hardware configuration without operating system
    6. High-speed bus parallel processing technology, high-bandwidth uncompressed processing

    7. Support for DIV,,VGA,RJ45,3G-SDI,Video(CVBS) multi-signal input formats

    8. Support DIV and 3G-SDI signal output

    9. Input and output resolution maximum support 1920×1080,can be backward compatible with 1080P and 720P formats

    10. Video signal 4 split screen display, mult-port video signal can be displayed simultaneously



    Detail Parameters:


    Technical Specifications
    Model series With CBD No CBD
    Function description 4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
    Input signal(optional) /DVI/VGA/AV/YPbPr
    Input resolution 1024x768~1080p,commonly used resolutions
    Output signal format DVI/VGA/AV/YPbPr/(DVI- converter)
    Output resolution Up to 1920x1200/60HZ
    System control software Special control software
    Power Supply Redundant power supply 110-220VAC, 50/60Hz
    Consumption 12W/channel
    Working temperature -20°C——60°C
    Working Humidity 5-95%
    Case specification 4U/6U/10U/15U standard rackmount chassis
    Serial Control Interface RS-232,9-pin female, Type-D
    Baud Rate 115200
    Pin configuration 2=TX,3=RX,5=GND
    Ethernet control interface RJ-45 female, TCP/IP
    Ethernet control speed Auto 10M or 100M,Full-duplex or half-duplex
    Working time 365x7x24hrs
    Technical specification of input/output connectors
    VGA/RGB input Input: 15pin HD D-Sub, female
    Sync mode: HV independent sync
    Color Depth: 32bit/pixel
    Resolution: 640*480/60HZ—1920*1200/60HZ
    Input impedance :75Ω
    Video input Input connector: BNC
    Detecting: full-format auto detecting
    Input impedance :75Ω
    VGA or DVI output Resolution:1024x768/60HZ-1920x1200/60HZ
    Color depth: 32bit/pixel
    Output impedance:75Ω
    Physical properties of input/output connectors
    Signals Connectors Type
    Composite VIDEO input BNC female
    VGA input 15 pin HD D-Sub female
    VGA output 15 pin HD D-Sub female
    DVI output 24+5 or 24+1 standard female
    AUX RS-232 9-pin D-Sub female
    Main RS-232 9-pin D-Sub female

    26  input 16  output video wall scaler , 4k video wall controller 1920 x 1080 output DDW-VPH2616 026  input 16  output video wall scaler , 4k video wall controller 1920 x 1080 output DDW-VPH2616 1
