Seamless monitor wall 4 intput 4 output Video Wall Controller CAN controlling technology digitalized processing

Basic Information
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 ,CE , RoHS , FCC
Model Number: DDW-VPH0404
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Double layer carton pack
Delivery Time: 3working days upon payment
Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
Supply Ability: 1000pcs/month
Detail Information
Solid Display: Support Each Screen Input With Separate Signal Dissipation Power:: 50W
Supply Voltage:: 100-200V Control Method: RS232,IP
Rich Resolution: Support 1080P,1080I,720P,480P &multiple Resolution Inputs Frame Material: Aluminum Brushed
Standard Packing: Double Layer Carton Box Pack Weight: 5-100kg
High Light:

lcd video wall controller

,

video wall processor


Product Description

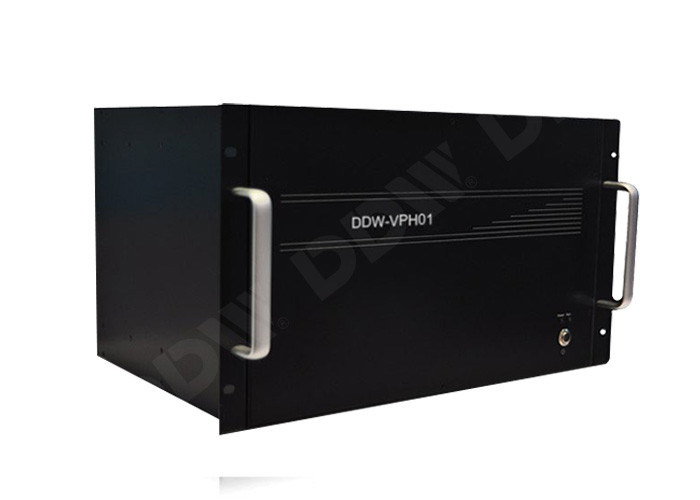

Seamless monitor wall 4 intput 4 output Video Wall Controller CAN controlling technology digitalized processing DDW-VPH0404



Key Features:

1. Advanced pure hardware structure

2. Special virtual display technology

3. CAN controlling technology

4. All digitalized processing

5. Full Channel HD 1080P signal processing

6. Powerful image processing capability

7. Flexible operation control system

8. Customizable character overlay function

9. Easy control mode

10. The input signals are selectable

11. Support for DIV,,VGA,RJ45,3G-SDI,Video(CVBS) multi-signal input formats

12. Support DIV and 3G-SDI signal output

13. Input and output resolution maximum support 1920×1080,can be backward compatible with 1080P and 720P formats

14. Video signal 4 split screen display, mult-port video signal can be displayed simultaneously

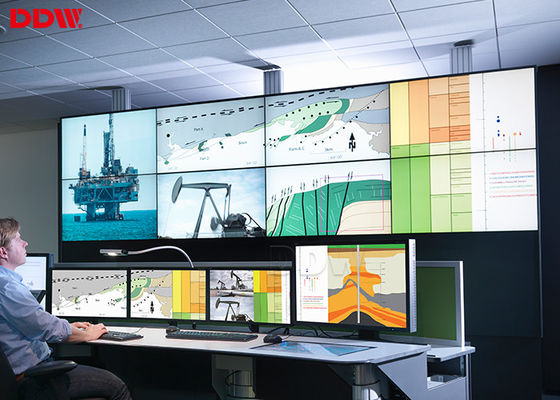

Video wall controller support multiple signals inputs and multiple signals outputs. It can be widely used for monitoring, directing, scheduling system, public security, fire, military, weather, rail, and aviation monitoring system, video conferencing, query systems.




Product Description
Technical Specifications
Model series With CBD No CBD
Function description 4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
Input signal(optional) /DVI/VGA/AV/YPbPr
Input resolution 1024x768~1080p,commonly used resolutions
Output signal format DVI/VGA/AV/YPbPr/(DVI- converter)
Output resolution Up to 1920x1200/60HZ
System control software Special control software
Power Supply Redundant power supply 110-220VAC, 50/60Hz
Consumption 12W/channel
Working temperature -20°C——60°C
Working Humidity 5-95%
Case specification 4U/6U/10U/15U standard rackmount chassis
Serial Control Interface RS-232,9-pin female, Type-D
Baud Rate 115200
Pin configuration 2=TX,3=RX,5=GND
Ethernet control interface RJ-45 female, TCP/IP
Ethernet control speed Auto 10M or 100M,Full-duplex or half-duplex
Working time 365x7x24hrs
Technical specification of input/output connectors
VGA/RGB input Input: 15pin HD D-Sub, female
Sync mode: HV independent sync
Color Depth: 32bit/pixel
Resolution: 640*480/60HZ—1920*1200/60HZ
Input impedance :75Ω
Video input Input connector: BNC
Detecting: full-format auto detecting
Input impedance :75Ω
VGA or DVI output Resolution:1024x768/60HZ-1920x1200/60HZ
Color depth: 32bit/pixel
Output impedance:75Ω
Physical properties of input/output connectors
Signals Connectors Type
Composite VIDEO input BNC female
VGA input 15 pin HD D-Sub female
VGA output 15 pin HD D-Sub female
DVI output 24+5 or 24+1 standard female
AUX RS-232 9-pin D-Sub female
Main RS-232 9-pin D-Sub female





Seamless monitor wall 4 intput 4 output Video Wall Controller CAN controlling technology digitalized processing 0Seamless monitor wall 4 intput 4 output Video Wall Controller CAN controlling technology digitalized processing 1Seamless monitor wall 4 intput 4 output Video Wall Controller CAN controlling technology digitalized processing 2
