| Place of Origin: | Guangdong , China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW550HN16 |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
| Product Name: | LG Ultra Narrow Bezel LCD Video Wall | Installation: | Wall Mounted |
|---|---|---|---|
| Bezel Width: | 1.7 Mm | Brightness: | 500 Nits |
| Surface: | Anti-glare | Backlight: | LED |
| Control Method: | RS232 Control | Signal Support: | DVI//VGA/AV/YPBPR |
| Panel Brand: | LG IP | Certificate: | CE, Rohs, CCC , FCC , ISO9001 |
| Application Condition: | Exhibition And Show Center | ||
| High Light: | video display walls,narrow bezel video wall |
||

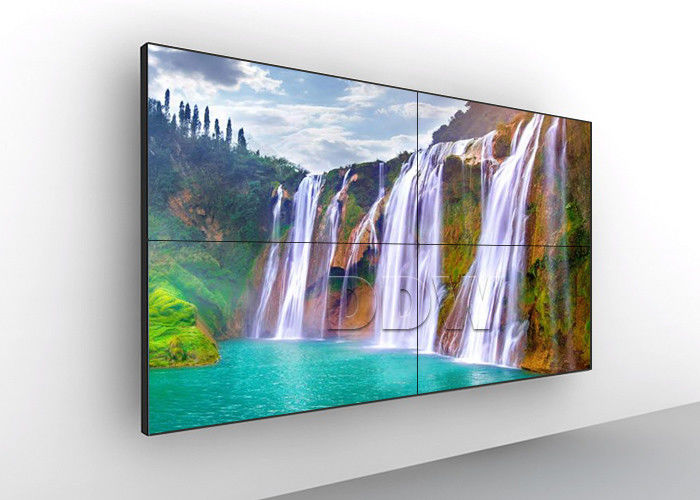

55 inch 1.7mm 500nits LG ultra narrow bezel LCD video wall for fashion store advertising DDW-LW550HN16
Key features:
55 " LCD video wall main parameters
LCD video wall can be used in below fields: Conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.
Specifications
| Model No: | DDW-LW550HN16 |
| LCD Technology | LG a-Si TFT-LCD |
| Active Screen Diagonal | 55" |
| Pixel Pitch(WxH) | 0.630x0.630mm |
| Active Display Area(WxH) | 1209.6 × 680.4 mm |
| Panel Dimension(WxHxD) | 1211.54x682.34x68.1mm |
| Total Bezel Width | 1.7mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backlight System | WLED |
| Luminance(nits) | 500cd/sqm |
| Contrast | 5000:1 (typ.) |
| Viewing Angle | H 178°|V 178° |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | <=250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor/Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 85% non-condensing |
| Storage Temperature | -20-60°C | -4-149°F |
| Storage Humidity | 85% non-condensing |
| DVI-I DUAL LINK | 1 |
| 1 | |
| VGA | 1 |
| CVBS IN | 1 |
| CVBS OUT | 1 |
| RS232 IN | 1 |
| RS232 OUT | 1 |
| ISP IN | 1 |
| IR IN | 1 |
| CODING BUTTON | 1 |
Various video wall control board options
