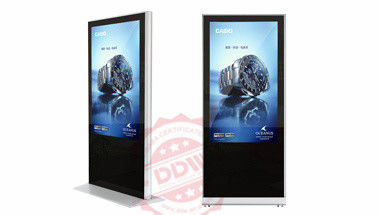

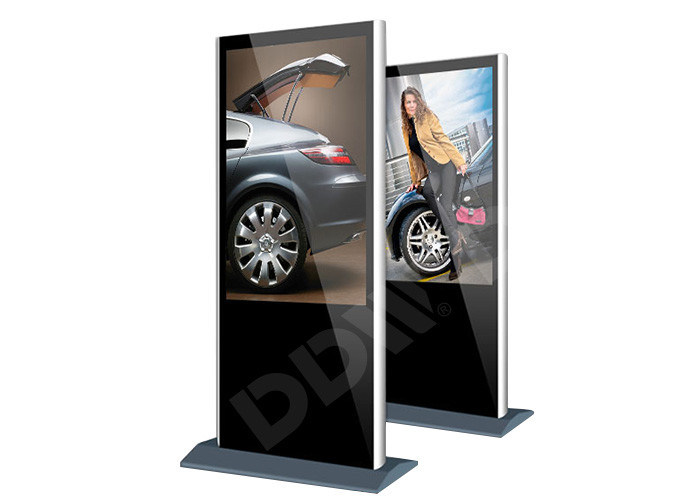

58 inch interactive PC Interactive Digital Signage display all in one 500cd / m2 DDW-AD5801SNT

Basic Information
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-AD5801SNT
Minimum Order Quantity: 1Set
Price: negotiable
Packaging Details: Carton and Full wood box packing
Delivery Time: 3-7working days upon payment
Payment Terms: T/T , Western Union , L/C , Alibaba Trade Assurance, D/P, D/A
Supply Ability: 1000 set per month
Detail Information
Diagonal: 58 Inch Multi Signal Function: Support
Control Method: TCP/IP , APP , WIFI , Software Control , IR Physical Resolution: 1920x1080
Panel Brand: Samsung DID LG IP Backlit Type: WLED
OSD Language: Multiple Languages Viewing Angle: H178º/ V178º
Luminance(nits): 500cd/m2 Applications: Indoor
High Light:

floor standing digital signage

,

free standing digital display


Product Description

58 inch interactive PC all in one TFT type 1920x1080 indoor application touch screen kiosk display FHD DDW-AD5801SNT



Features Highlights

58 Inch Touch Screen Kiosk Monitor with 1920x1080 Resolution

1 . Video formats  MP4(AVI:DIVX/XVID) , MPG2(DVD:VOB/MPG2) ,  MPEG1 (VCD   DAT/MPG1)

2 . Audio formats  MP3

3 . Advanced IR touch technology , support single-touch technology

4 . interactive touch for widely using

5 . Adopt memory card to update ad files

6 . SD card or USB port at one player;



Description

1 . Outer shell is made by extra quality metal material, Color for Outer Shell   Shinning Black.

2 .  With 3mm thickness tempered glass as protection layer against the sureface of LCD screen.

3 . Full New LG or Samsung ( Made in Korea) A Grade Standard LCD Panel.

4 . Support SD card or USB port at one player; it is optional for VGA Port, S-video port and port.

5 . Safely locking system function to avoid flash memory card and advertising playing contents being taken away ,  also can be protected by password.

6 .  With USB update feature; support functions between the card and card copying files (such as CF card to SD card , or SD to CF card etc.); support U-copy ,  conveniently and quickly updating target content , more details please visit user manual.

7 . Playing advertising program automatically and circular; support media format   JPEG (JPG) ,  MP3 ,  AVI , MPEG1 ,  MPEG2 ,  MPEG4 ,  VOB and DIVX (5.0/6.0).

8 . Playlists support functions ,  can set different folders ,  copy all target files to those different folders , system would default to play your target file one by one.

9 . Capable of setting rolling caption on the screen, playing rolling caption in the advertisement program.

10 . Build-in clock and calendar function in the system of player.

11 . Support 5 groups of auto power-on/off timer, able to set those 5 groups of time one day and 7 days in one week.

12 . Support shockproof and dustproof function.



Specifications



Technical Parameter for LCD Panel Panel Size 58 inch real color LCD screen
Aspect Ratio 16:9
Max. Resolution 1920x 1080
Dot Pitch 0.63mm(H) x 0.63mm(W)
Number of Color 16.7M
Brightness 500cd/m2
Contrast Ratio 1500:1
Responsive Time 8ms
Panel Life above 50000 hours
Storage Medium Flash memory card 2gb to 36gb for the capacity
Support Ad files Video formats MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1)
Audio formats MP3
Photo formats JPG
OSD Language English ,  Chinese ,  French ,  German ,  Italian ,  Spanish , Arabic
Audio output stereo L/R ,  5Wx2 ,  8Ω
Power supply AC 110V - 240V , 50/60HZ
Storage Temperature -7 to 65 Celsius degree
Normal Working Temperature -5 to 65 Celsius degree



Infrared touchscreen Panel Parameters

Touch Max Resolution 4096×4096
Transparency > 90%, Up to 100%
Scanning Speed >50Scans/S
Response Speed <12ms
Touch Type Horizontal Multi Dot Touch Screen (Vertical way is optional)
Touch precision 0.625mm
Minimum Touch object ≥5mm
Touch Intensity Over 60,000,000 Single Point Touch
Operation System DOS, WINDOWS9X/ME/2000/XP/2003/VISTA, LINUX
perating Voltage DC 5V ±5%
Power Supply Keyboard Serial Interface
Power <1W (Current<200mA)
Communication RS-232 Interface Port, USB Port
Vandal-Proof Steel Ball (Diameter 63.5mm 1040g Weight) drop from 1040mm, No break
Temperature Operating -41°C ~70°C Temperature Storage: -50°C ~85°C
Altitude 3000m
Noise None
Life Time >10 Year



Applications

Business Organizations Supermarket ,  large-scale shopping malls ,  exclusive agency ,  chain shops ,  large-scale sales ,  star-rated hotels ,  restaurants ,  travel agencies ,  pharmacy.
Financial Organizations

Banks ,  negotiable securities ,  funds ,  insurance companies , pawnshops;

Non-profit Organizations  Telecommunications ,  post offices , hospital ,  schools;

Public Places subway ,  airports ,  stations, gas stations ,  toll stations ,  bookstores , parks , exhibition halls ,  stadiums ,  museums ,  convention centers , ticket agencies ,  HR market ,  lottery centers; Real Estate Property  Apartments , villas ,  offices ,  commercial buildings ,  model rooms , property brokers;
Entertainments Movie theaters ,  fitness halls ,  country clubs ,  clubs ,  massage rooms ,  bars ,  cafes ,  Internet bars ,  beauty shops ,  golf course
