Place of Origin: | Guangdong , China (Mainland) |
---|---|
Brand Name: | DDW |
Certification: | ISO9001 , CE , RoHS , FCC |
Model Number: | DDW-DV550FHM-NV3 |
Minimum Order Quantity: | 2pcs |
Price: | Negotiable |
Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
Delivery Time: | 3 working days upon payment |
Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
Supply Ability: | 3 , 000pcs per month |
DP In: | Yes | USB: | Yes |
---|---|---|---|
Bezel Width: | 3.5 Mm | In: | Yes |
Aspect Ratio: | 16 : 9 | PC Audio In: | Composite In |
Backlight: | LED | Control Method: | RS232 Control |
Output ( Rear ) - Digital: | Display Port ( 1 ) | Output ( Rear ) - Audio: | Audio Out ( 1 ) |
High Light: | control room displays,samsung commercial displays |

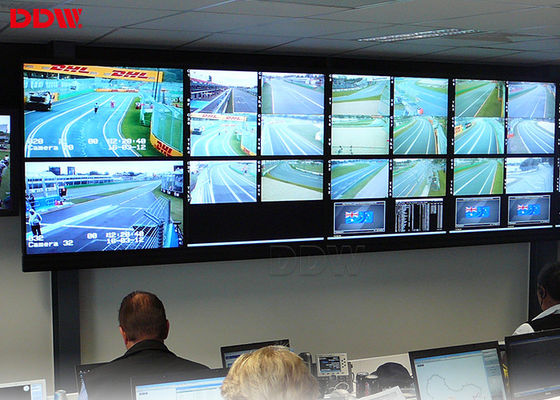

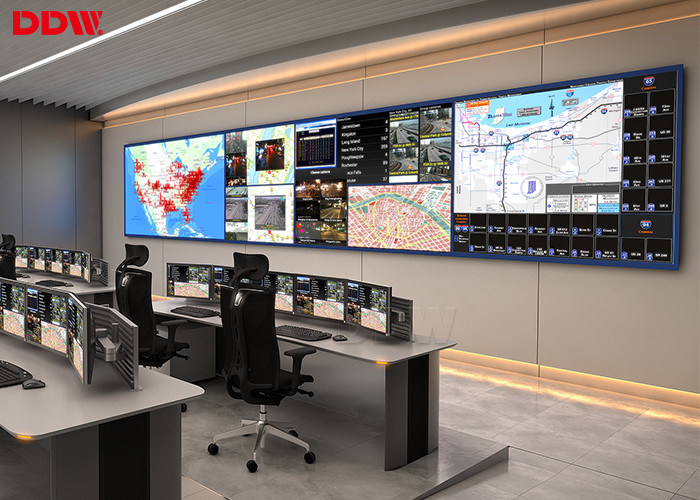

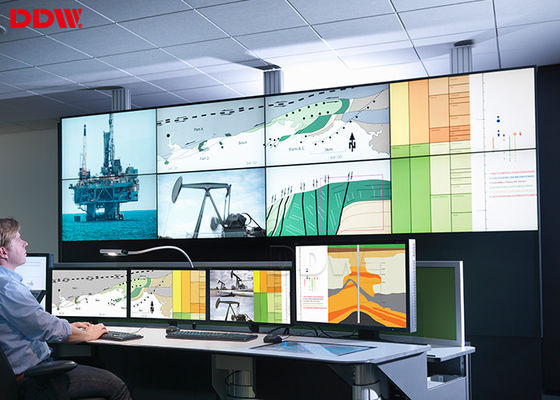

Samsung video wall displays 3.5 mm Bezel width 1920 x 1080 for Restaurant and hotel DDW-DV550FHM-NV3
55" samsung video wall features:
Application
DDW is one of leading manufacturer dedicated in R&D,manufacturing &selling commercial LCD displays especially LCD video wall systems for below fields: Conference and meeting rooms, office building, lobbies, Security Monitoring Center, Surveillance and Retail Center, Restaurant and hotel, Retail Shopping Mall Advertising and information Displays, Public Installations, Exhibition and show center, Live show,Rental and advertising Center,Museums,Church,Transportation and Mass Info Display systems.
Specifications
Model No. | DDW-DV550FHM-NV3 |
Panel Specifications | |
LCD Technology | Samsung a-Si TFT-LCD |
Active Screen Diagonal | 55" |
Pixel Pitch(WxH) | 0.630x0.630mm |
Active Display Area(WxH) | 1209.6x680.4mm |
Panel Dimension(WxHxD) | 1213.5x684.3x60.39mm |
Total Bezel Width | 3.5 mm |
Aspect Ratio | 16:9 |
Physical Resolution | 1920x1080 |
Backight System | WLED |
Luminance(nits) | 700cd/sqm |
Contrast | 3500:1 (typ.) |
Viewing Angle | H 178°|V 178° |
Display Colors | 8Bit,16.7M |
Refresh Rate | 60Hz |
Response Time | <=6ms |
Life(hrs) | >60,000(hrs) |
MTBF | > 100,000 h |
Surface | Anti-glare |
Standby Power Consumption | <3W |
Maximum Power Consumption | <=250W |
Power Supply | AC100~240V 50/60 HZ |
Cooling | Low noise fans |
Heat Dissipation | 819 BTU/h (max) |
Working Time Capacity | 7x24x365hours |
Application Area | Indoor/Semi Outdoor/Outdoor |
Working Temperature | 0°C~50°C |
Working Humidity | 85% non-condensing |
Storage Temperature | -20-60°C | -4-149°F |
Storage Humidity | 85% non-condensing |
Processor | |
DVI-I DUAL LINK | 1 |
1 | |
VGA | 1 |
CVBS IN | 1 |
CVBS OUT | 1 |
RS232 IN | 1 |
RS232 OUT | 2 |
ISP IN | 1 |
IR IN | 1 |
CODING BUTTON | 1 |
AC IN | AC100-240V |
Color System Support | PAL/NTSC/SECAM |
Control Type | IR Remote &Software Control |
Menu Language | English/Chinese(Multiple Language can be customized) |
