Place of Origin: | Guangdong , China (Mainland) |
---|---|
Brand Name: | DDW |
Certification: | ISO9001 , CE , RoHS , FCC |
Model Number: | DDW-LW550HN14 |
Minimum Order Quantity: | 2pcs |
Price: | Negotiable |
Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
Delivery Time: | 3 working days upon payment |
Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
Supply Ability: | 3 , 000pcs per month |
Panel Size: | 55inch | Resolution: | 1366 X 768 |
---|---|---|---|
Bezel Width: | 1.7mm | Color: | 8Bit , 16M |
Brightness: | 700nits | Surface: | Anti-glare |
Backlight: | LED | Control Method: | RS232 Control |
Response Time: | 5ms | Input Voltage: | AC 110-240v |
Signal Support: | DVI//VGA/AV/YPBPR | Working Time Capacity: | 7x24hours |
High Light: | hd video wall,samsung commercial displays |

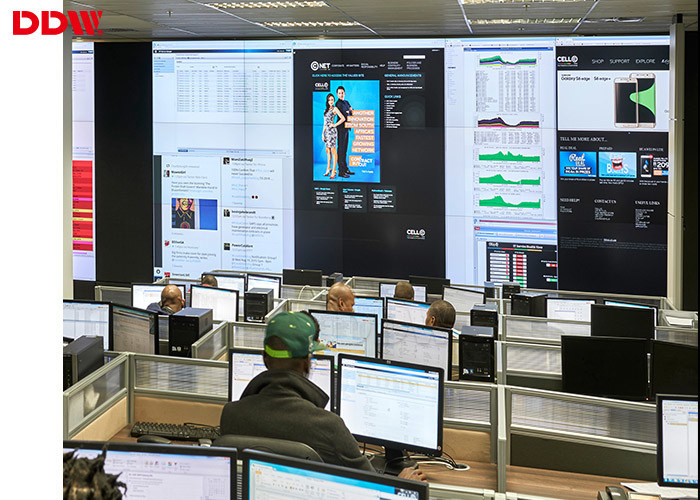

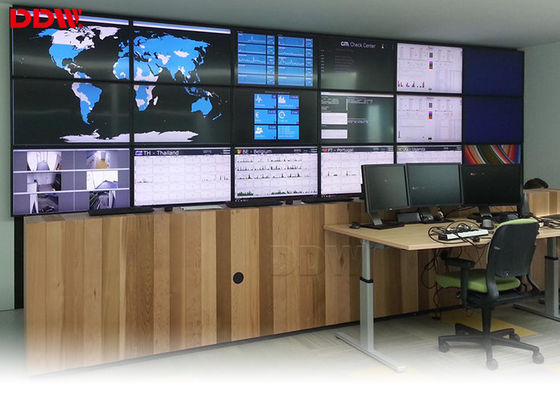

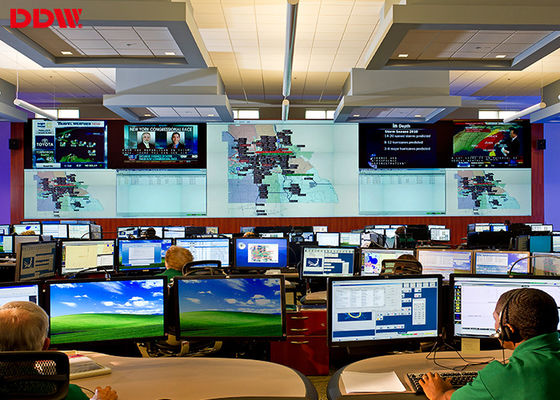

55" 700nits multi screen video wall 1.7mm ultra narrow bezel monitor for media control room DDW-LW550HN14
DDW offers a range of scalable connectivity and display processing systems for corporate av applications, as well as large-scale multiscreen video wall solutions for enterprise-level installations. The remote capabilities and real-time signal processing provided by our conference, board, collaboration and control room display systems support multi-site workflows and critical decision-making.
Our customizable solutions offer a range of user-friendly features that streamline operation and enable the interconnectivity of your corporate control room, meeting rooms, and multi-screen display systems. Integrating a range of content types and signal formats, DDW’s multi screen video wall, control room display and digital signage systems can help you get your message across to customers more effectively.
Key features
1, Original Sharp commercial grade lcd video wall panel 60inch,16:9 Sharp a-Si TFT-LCD
2, 700nits brightness,4000:1 contrast
3, HD physical resolution 1366 x 768
4, only 3.5mm Ultra narrow bezel.high quality ,Practical ,good vision effect.
5, Signal interface rich --- RS232, ,DVI,VGA,Y Pb Pr ,AV
6, HD video wall unit--- High brightness,high contrast,High gamut .
7, Flexible structure design ---easy installation ,extensible,arbitrary combination
8, Stable performance,suitable working for a long time
Specifications
55" SHARP Panel Specifications | ||||||||||
LCD Technology | Sharp a-Si TFT-LCD | |||||||||
Active Screen Diagonal | 55" | |||||||||
Pixel Pitch(WxH) | 0.630x0.630mm | |||||||||
Active Display Area(WxH) | 1209.6 × 680.4 mm | |||||||||
Panel Dimension(WxHxD) | 1211.54x682.34x65.1mm | |||||||||
Bezel Width | Total: 1.7mm | |||||||||
Aspect Ratio | 16:9 | |||||||||
Physical Resolution | 1366x768 | |||||||||
Backight System | WLED | |||||||||
Luminance(nits) | 700cd/㎡ | |||||||||
Contrast | 4000:1 (typ.) | |||||||||
Viewing Angle | H 178°|V 178° | |||||||||
Display Colors | 8Bit,16.7M | |||||||||
Refresh Rate | 60Hz | |||||||||
Response Time | <=6ms | |||||||||
Life(hrs) | >60,000(hrs) | |||||||||
MTBF | > 100,000 h | |||||||||
Surface | Anti-glare | |||||||||
Standby Power Consumption | <3W | |||||||||
Maximum Power Consumption | <=360W | |||||||||
Power Supply | AC100~240V 50/60 HZ | |||||||||
Cooling | Low noise fans | |||||||||
Heat Dissipation | 819 BTU/h (max) | |||||||||
Working Time Capacity | 7x24x365hours | |||||||||
Application Area | Indoor/Semi Outdoor | |||||||||
Working Temperature | 0℃~50℃ | |||||||||
Working Humidity | 0.85 | |||||||||
Storage Temperature | -20-65°C | -4-140°F | |||||||||
Storage Humidity | 85% non-condensing |
