4K control room seamless multi touch video wall DDW - LW460HN11 HDMI 500 nits brightness

China 4K control room seamless multi touch video wall DDW - LW460HN11  HDMI 500 nits brightness supplier
4K control room seamless multi touch video wall DDW - LW460HN11  HDMI 500 nits brightness supplier 4K control room seamless multi touch video wall DDW - LW460HN11  HDMI 500 nits brightness supplier 4K control room seamless multi touch video wall DDW - LW460HN11  HDMI 500 nits brightness supplier 4K control room seamless multi touch video wall DDW - LW460HN11  HDMI 500 nits brightness supplier

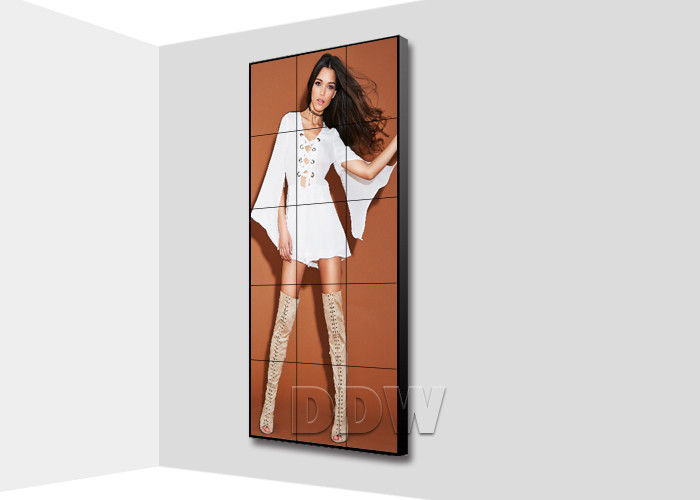

Large Image :  4K control room seamless multi touch video wall DDW - LW460HN11 HDMI 500 nits brightness

Product Details:

Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW - LW460HN11

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Contact Now
Detailed Product Description
Product Name: Innolux Super Narrow Bezel Control Room Video Wall Resolution: 3840 X 2160
Bezel Width: 3.5mm Viewing Angle: 178 X 178
Brightness: 500nits Surface: Anti-glare
Backlight: WLED Control Method: RS232 Control
Response Time: 5ms Input Voltage: AC 110-240v
Signal Support: DVI/HDMI/VGA/AV/YPBPR Working Time Capacity: 7x24hours

4K control room seamless multi touch video wall DDW - LW460HN11 HDMI 500 nits brightnes


DDW offers a range of scalable connectivity and display processing systems for corporate av applications, as well as large-scale multiscreen video wall solutions for enterprise-level installations. The remote capabilities and real-time signal processing provided by our conference, board, collaboration and control room display systems support multi-site workflows and critical decision-making.

Key features

1, Signal interface rich --- RS232, HDMI, DVI, VGA, YPbPr, AV;
2, HD video wall unit--- High brightness, high contrast, high gamut;
3, Flexible structure design ---easy installation, extensible, arbitrary combination;
4, Stable performance, suitable working for a long time;
5, Original Innolux commercial grade lcd video wall panel, 16:9 Innolux a-Si TFT-LCD;
6, 500nits brightness, 5000:1 contrast;
7, HD physical resolution 3840 x 2160;
8, only 3.5mm Ultra narrow bezel.high quality, practical, good vision effect;


 Service
Our customizable solutions offer a range of user-friendly features that streamline operation and enable the interconnectivity of your corporate control room, meeting rooms, and multi-screen display systems. Integrating a range of content types and signal formats, DDW’s multi screen video wall, control room display and digital signage systems can help you get your message across to customers more effectively.


Specifications

Model No: DDW - LW460HN11
LCD Technology INNOLUX a-Si TFT-LCD
Active Screen Diagonal 46"
Total Bezel Width 3.5mm
Aspect Ratio 16:9
Physical Resolution 3840x2160
Backight System LED
Luminance(nits) 500cd/㎡
Contrast 5000:1
Viewing Angle H 178°|V 178°
Pixel Pitch(WxH) 0.5302x0.5302
Active Display Area(WxH) 1018.08×572.67mm
Panel Dimension(WxHxD) 1021.98x576.57x72.1mm
White Point 10,000 K
Display Colors 1.07GB colors
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption ≦160W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0℃~50℃
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing
Inputs, Outputs &Features
DVI-I DUAL LINK 1
HDMI 1
VGA 1
CVBS IN 1
CVBS OUT 1
RS232 IN 1
RS232 OUT 1
ISP IN 1
IR IN 1
AC IN AC100-240V
Color System Support PAL/NTSC/SECAM
Control Type IR Remote &Software Control
Menu Language English/Chinese(Multiple Language can be customized)
Vertical/Horizontal Display Support
Combine Display Support combine any horizental &vertical numbers of screens and show display
Support combine all screens together to show 1image
Solid Display Support each screen input with separate signal
PIP/Zoom/Roaming Support open one window for each screen, each window can be zoomed &roaming internal freely
Multiple Interfaces Support DVI,HDMI,VGA,AV &multiple signal inputs
Rich Resolution Support 1080P,1080I,720P,480P &multiple resolution inputs



Various video wall control board options
